ODD-5 Series

Catalog

SENSOR PHOTODIODE 940NM TO5

Part	Active Area	Response Time	Spectral Range [Max]	Spectral Range [Min]	Mounting Type	Responsivity @ nm	Voltage - DC Reverse (Vr) (Max) [Max]	Wavelength	Color - Enhanced	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Typ)
Opto Diode Corp ODD-5WISOL	5 mm²	10 ns	1100 nm	300 nm	Through Hole	0.4 A/W	60 V	940 nm	Red	100 °C	-55 C	1 nA

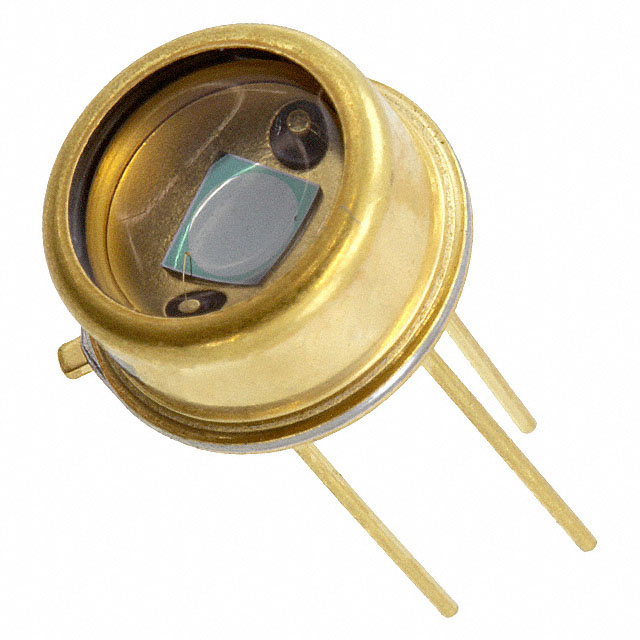

Opto Diode Corp ODD-5W	5 mm²	10 ns	1100 nm	300 nm	Through Hole	0.4 A/W	60 V	940 nm	Red	100 °C	-55 C	1 nA

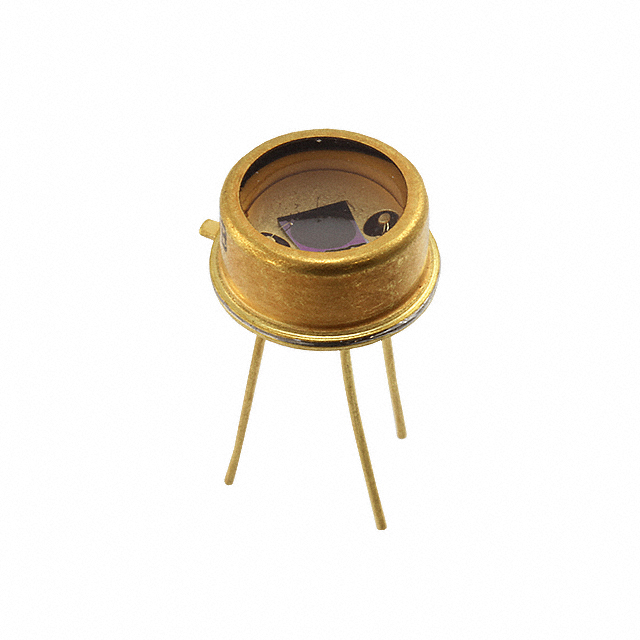

Opto Diode Corp ODD-5WB	5 mm²	10 ns	1100 nm	400 nm	Through Hole	0.28 A/W	60 V	940 nm	Blue	100 °C	-55 C	1 nA
Opto Diode Corp ODD-5WBISOL	5 mm²	10 ns	1100 nm	400 nm	Through Hole	0.28 A/W	60 V	940 nm	Blue	100 °C	-55 C	1 nA
