C2526 Series

Catalog

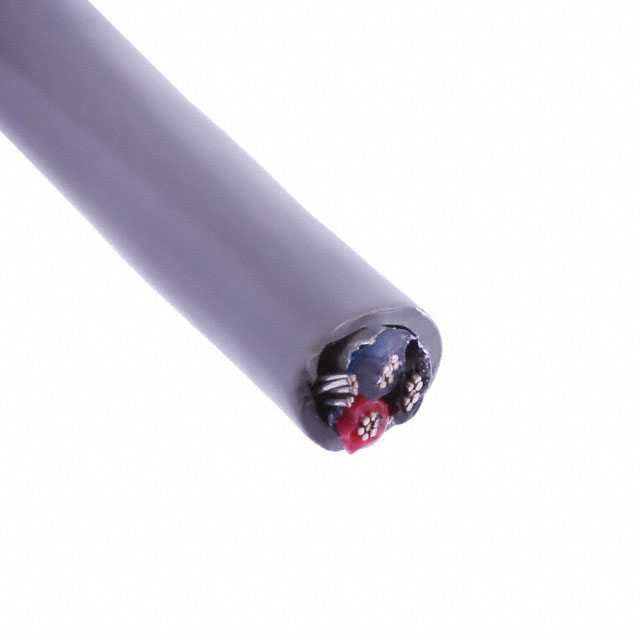

CABLE 3COND 22AWG GRAY SHLD

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Voltage	Features	Shield Type	Jacket (Insulation) Material	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Wire Gauge	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Cable Type	Length	Length	Conductor Insulation	Conductor Material	Length [x]	Length [x]	Shield Coverage	Jacket Color
Prysmian Group C2526A.18.10	0.03 in	0.762 mm	0.196 " 4.98 mm	300 VDC	Drain Wire	Foil	Poly-Vinyl Chloride (PVC)	Communication Control	75 ░C	-20 ░C	3	22 AWG	ASTM B-33	30 AWG	7	Flexfoil® FlexfoilÛ	Multi-Conductor	15.24 m 152.4 m	50 ft 500 ft	Polyethylene (PE)	Copper Annealed Tinned	100 ft	30.5 m	100 %	Gray
Prysmian Group C2526A.41.10	0.03 in	0.762 mm	0.196 " 4.98 mm	300 VDC	Drain Wire	Foil	Poly-Vinyl Chloride (PVC)	Communication Control			3	22 AWG	ASTM B-33	30 AWG	7		Multi-Conductor	15.24 m 304.8 m	50 ft 1000 ft	Polyethylene (PE)	Copper Annealed Tinned	100 ft	30.5 m		Gray
Prysmian Group C2526A.18.10	0.03 in	0.762 mm	0.196 " 4.98 mm	300 VDC	Drain Wire	Foil	Poly-Vinyl Chloride (PVC)	Communication Control			3	22 AWG	ASTM B-33	30 AWG	7		Multi-Conductor	15.24 m 152.4 m	50 ft 500 ft	Polyethylene (PE)	Copper Annealed Tinned	100 ft	30.5 m		Gray
Prysmian Group C2526A.30.10	0.03 in	0.762 mm	0.196 " 4.98 mm	300 VDC	Drain Wire	Foil	Poly-Vinyl Chloride (PVC)	Communication Control			3	22 AWG	ASTM B-33	30 AWG	7	Flexfoil®	Multi-Conductor	304.8 m	1000 ft	Polyethylene (PE)	Copper Annealed Tinned			100 %	Gray
Prysmian Group C2526A.30.10	0.03 in	0.762 mm	0.196 " 4.98 mm	300 VDC	Drain Wire	Foil	Poly-Vinyl Chloride (PVC)	Communication Control			3	22 AWG	ASTM B-33	30 AWG	7		Multi-Conductor	304.8 m	1000 ft	Polyethylene (PE)	Copper Annealed Tinned				Gray
Prysmian Group C2526A.41.10	0.03 in	0.762 mm	0.196 " 4.98 mm	300 VDC	Drain Wire	Foil	Poly-Vinyl Chloride (PVC)	Communication Control			3	22 AWG	ASTM B-33	30 AWG	7	Flexfoil®	Multi-Conductor	15.24 m 304.8 m	50 ft 1000 ft	Polyethylene (PE)	Copper Annealed Tinned	100 ft	30.5 m	100 %	Gray
