TDN 1 Series

Catalog

DC DC CONVERTER 24V 1.1W

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Efficiency	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Applications	Current - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 1	Type	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)

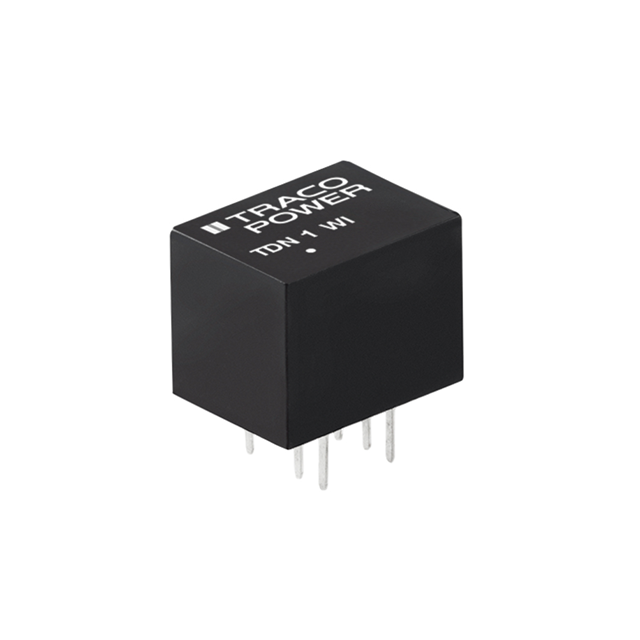

Traco Power TDN 1-1215WI	18 V	4.5 V	7-DIP Module 6 Leads	80 %	Through Hole	1	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	1.1 W	ITE (Commercial)	45 mA	1.6 kV	90 °C	-40 C	Remote On/Off SCP	24 V	Isolated Module

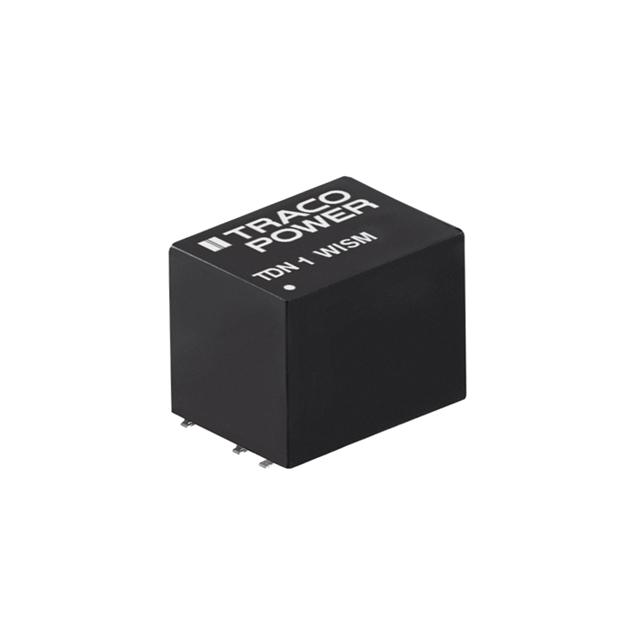

Traco Power TDN 1-2412WISM	36 V	9 V	7-SMD Module 6 Leads	81 %	Surface Mount	1	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	1.1 W	ITE (Commercial)	90 mA	1.6 kV	90 °C	-40 C	Remote On/Off SCP	12 V	Isolated Module
Traco Power TDN 1-1223WISM	18 V	4.5 V	7-SMD Module 6 Leads	81 %	Surface Mount	2	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	1.1 W	ITE (Commercial)	35 mA	1.6 kV	90 °C	-40 C	Remote On/Off SCP	15 V	Isolated Module	-15 V	35 mA
Traco Power TDN 1-2411WISM	36 V	9 V	7-SMD Module 6 Leads	78 %	Surface Mount	1	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "		ITE (Commercial)	200 mA	1.6 kV	90 °C	-40 C	Remote On/Off SCP	5 V	Isolated Module
Traco Power TDN 1-2413WISM	36 V	9 V	7-SMD Module 6 Leads	81 %	Surface Mount	1	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	1.1 W	ITE (Commercial)	70 mA	1.6 kV	90 °C	-40 C	Remote On/Off SCP	15 V	Isolated Module
Traco Power TDN 1-2419WISM	36 V	9 V	7-SMD Module 6 Leads	79 %	Surface Mount	1	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "		ITE (Commercial)	112 mA	1.6 kV	90 °C	-40 C	Remote On/Off SCP	9 V	Isolated Module
Traco Power TDN 1-2410WI	36 V	9 V	7-DIP Module 6 Leads	76 %	Through Hole	1	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "		ITE (Commercial)	0.3 A	1.6 kV	90 °C	-40 C	Remote On/Off SCP	3.3 V	Isolated Module
Traco Power TDN 1-4821WI	75 V	18 V	7-DIP Module 6 Leads	77 %	Through Hole	2	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "		ITE (Commercial)		1.6 kV	90 °C	-40 C	Remote On/Off SCP	5 V	Isolated Module	-5 V		100 mA	100 mA
Traco Power TDN 1-2421WI	36 V	9 V	7-DIP Module 6 Leads	77 %	Through Hole	2	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "		ITE (Commercial)		1.6 kV	90 °C	-40 C	Remote On/Off SCP	5 V	Isolated Module	-5 V		100 mA	100 mA
Traco Power TDN 1-4815WISM	75 V	18 V	7-SMD Module 6 Leads	80 %	Surface Mount	1	0.36 in	10.2 mm	13.2 mm	0.52 in	9.1 mm	0.4 "	1.1 W	ITE (Commercial)	45 mA	1.6 kV	90 °C	-40 C	Remote On/Off SCP	24 V	Isolated Module
