TSV631 Series
Manufacturer: STMicroelectronics
Beta
⌘K
RAIL-TO-RAIL INPUT/OUTPUT 5V CMOS OP-AMP, MICRO-POWER (60UA), GBP=880KHZ, SMALL OFFSET, SINGLE
| Part | Current - Output / Channel | Current - Supply | Output Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input Offset | Gain Bandwidth Product | Number of Circuits | Voltage - Supply Span (Max) [Max] | Mounting Type | Current - Input Bias | Supplier Device Package | Voltage - Supply Span (Min) [Min] | Slew Rate | Amplifier Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

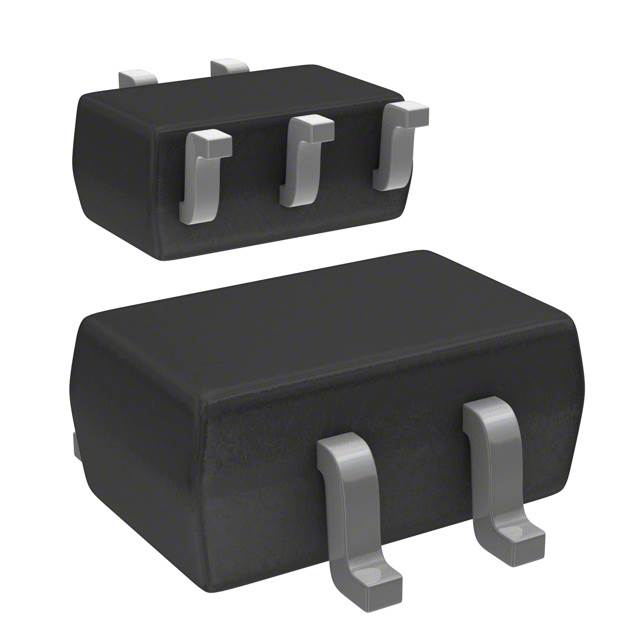

 STMicroelectronics | 74 mA | 60 µA | Rail-to-Rail | 5-TSSOP SC-70-5 SOT-353 | 125 °C | -40 C | 500 çV | 880 kHz | 1 | 5.5 V | Surface Mount | 1 pA | SC-70-5 | 1.5 V | 0.34 V/µs | General Purpose | ||
 STMicroelectronics | 74 mA | 60 µA | Rail-to-Rail | SC-74A SOT-753 | 125 °C | -40 C | 3 mV | 880 kHz | 1 | 5.5 V | Surface Mount | 1 pA | SOT-23-5 | 1.5 V | 0.34 V/µs | General Purpose | Automotive | AEC-Q100 |
 STMicroelectronics | 74 mA | 60 µA | Rail-to-Rail | 5-TSSOP SC-70-5 SOT-353 | 125 °C | -40 C | 3 mV | 880 kHz | 1 | 5.5 V | Surface Mount | 1 pA | SC-70-5 | 1.5 V | 0.34 V/µs | General Purpose |
