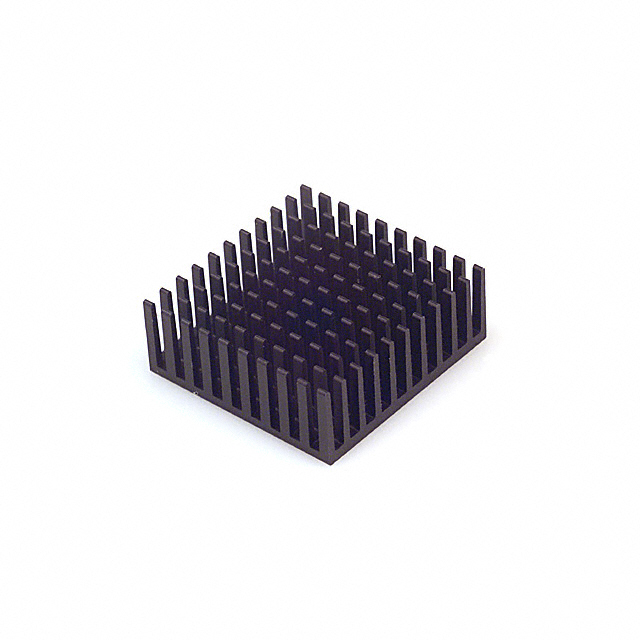

628-65 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

HEAT SINK, SQUARE, FOR BGA'S, PIN FIN, BGA, 43.2 MM, 16.51 MM, 44.5 MM

Part	Shape	Package Cooled	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]	Length	Length	Attachment Method	Material Finish	Type	Material	Power Dissipation @ Temperature Rise	Thermal Resistance @ Forced Air Flow
Wakefield Thermal Solutions 628-65AB	Pin Fins Square	ASIC BGA CPU LGA	16.51 mm	0.65 in	1.7 in	43.18 mm	1.75 in	44.45 mm	Thermal Tape Adhesive	Black Anodized	Top Mount	Aluminum	3 W 20 °C	2 °C/W
Wakefield Thermal Solutions 628-65ABT1E	Pin Fins Square	ASIC BGA CPU LGA	16.51 mm	0.65 in	1.7 in	43.18 mm	1.75 in	44.45 mm	Thermal Tape Adhesive (Included)	Black Anodized	Top Mount	Aluminum	3 W 20 °C	2 °C/W
Wakefield Thermal Solutions 628-65ABT5	Pin Fins Square	ASIC BGA CPU LGA	16.51 mm	0.65 in	1.7 in	43.18 mm	1.75 in	44.45 mm	Thermal Tape Adhesive (Included)	Black Anodized	Top Mount	Aluminum	3 W 20 °C	2 °C/W
Wakefield Thermal Solutions 628-65ABT4E	Pin Fins Square	ASIC BGA CPU LGA	16.51 mm	0.65 in	1.7 in	43.18 mm	1.75 in	44.45 mm	Thermal Tape Adhesive (Included)	Black Anodized	Top Mount	Aluminum	3 W 20 °C	2 °C/W
Wakefield Thermal Solutions 628-65AB	Pin Fins Square	ASIC BGA CPU LGA	16.51 mm	0.65 in	1.7 in	43.18 mm	1.75 in	44.45 mm	Thermal Tape Adhesive	Black Anodized	Top Mount	Aluminum	3 W 20 °C	2 °C/W
Wakefield Thermal Solutions 628-65ABT3	Pin Fins Square	ASIC BGA CPU LGA	16.51 mm	0.65 in	1.7 in	43.18 mm	1.75 in	44.45 mm	Thermal Tape Adhesive (Included)	Black Anodized	Top Mount	Aluminum	3 W 20 °C	2 °C/W
Wakefield Thermal Solutions 628-65ABT1E	Pin Fins Square	ASIC BGA CPU LGA	16.51 mm	0.65 in	1.7 in	43.18 mm	1.75 in	44.45 mm	Thermal Tape Adhesive (Included)	Black Anodized	Top Mount	Aluminum	3 W 20 °C	2 °C/W
Wakefield Thermal Solutions 628-65ABT4E	Pin Fins Square	ASIC BGA CPU LGA	16.51 mm	0.65 in	1.7 in	43.18 mm	1.75 in	44.45 mm	Thermal Tape Adhesive (Included)	Black Anodized	Top Mount	Aluminum	3 W 20 °C	2 °C/W
Wakefield Thermal Solutions 628-65ABT3	Pin Fins Square	ASIC BGA CPU LGA	16.51 mm	0.65 in	1.7 in	43.18 mm	1.75 in	44.45 mm	Thermal Tape Adhesive (Included)	Black Anodized	Top Mount	Aluminum	3 W 20 °C	2 °C/W
Wakefield Thermal Solutions 628-65ABT5	Pin Fins Square	ASIC BGA CPU LGA	16.51 mm	0.65 in	1.7 in	43.18 mm	1.75 in	44.45 mm	Thermal Tape Adhesive (Included)	Black Anodized	Top Mount	Aluminum	3 W 20 °C	2 °C/W
