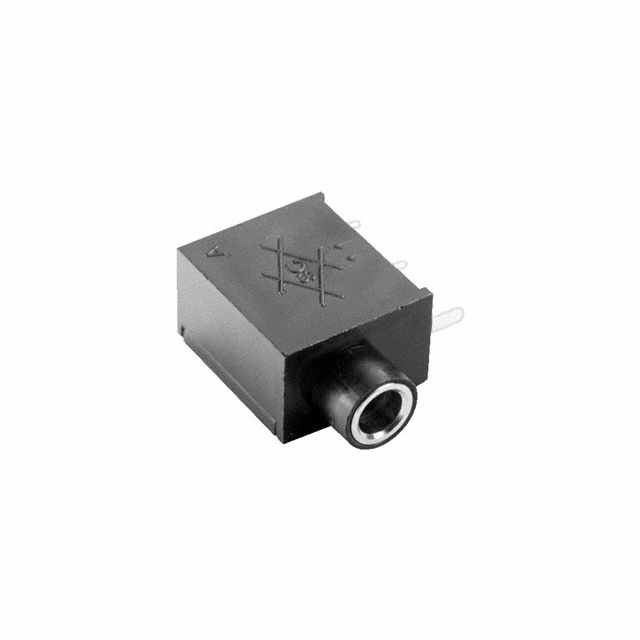

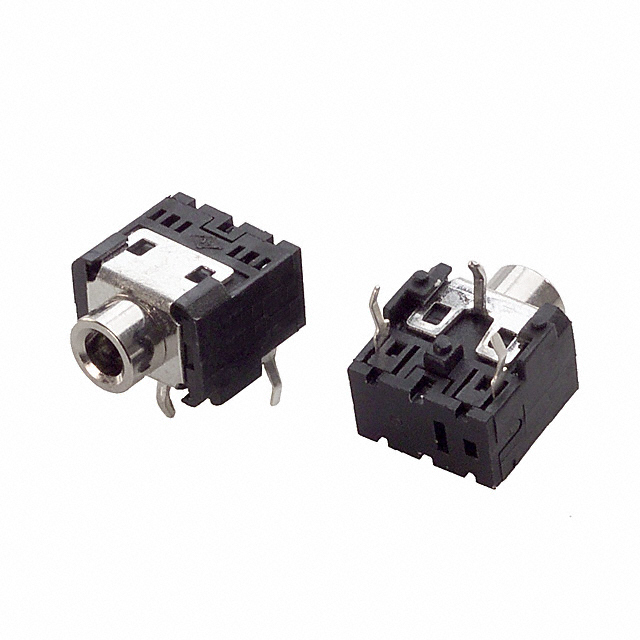

SJ-35 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
CONN 3.5MM AUDIO JACK RCP 3 POS SOLDER RA SMD 4 TERMINAL 1 PORT T/R
| Part | Termination | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Shielding | Signal Lines | Features | Actual Diameter [diameter] | Actual Diameter [diameter] | Connector Type | Gender | Insulation Color | Internal Switch(s) | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Body Color | Contact Material - Plating | Current Rating (Amps) | Contact Material | Housing Material | Mating Length/Depth | Mating Length/Depth | Internal Switch(s) | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | Solder | 4 | 3 | Unshielded | Stereo (3 Conductor TRS) | Board Guide | 0.142 in | 3.6 mm | Phone Jack | Female | Green | Single Switch | 0.125 in | 3.5 mm | 0.141 in | Right Angle Surface Mount | 85 °C | -25 °C | ||||||||||
 Same Sky (Formerly CUI Devices) | Solder | 5 | 3 | Unshielded | Stereo (3 Conductor TRS) | 0.142 in | 3.6 mm | Phone Jack | Female | Single Switch | 0.125 in | 3.5 mm | 0.141 in | Right Angle Through Hole | 85 °C | -25 °C | ||||||||||||
 Same Sky (Formerly CUI Devices) | Kinked Pin | 4 | 3 | Unshielded | Stereo (3 Conductor TRS) | 0.142 in | 3.6 mm | Phone Jack | Female | Single Switch | 0.125 in | 3.5 mm | 0.141 in | Right Angle Through Hole | 85 °C | -25 °C | 12 VDC | Black | Silver | 1 A | Brass Phosphor Bronze | Polybutylene Terephthalate (PBT) | 14 mm | 0.551 in | ||||
 Same Sky (Formerly CUI Devices) | Solder | 3 | 3 | Unshielded | Stereo (3 Conductor TRS) | Board Guide | 0.142 in | 3.6 mm | Phone Jack | Female | 0.125 in | 3.5 mm | 0.141 in | Right Angle Surface Mount | 85 °C | -25 °C | 12 VDC | Black | Tin | 1 A | Copper Alloy | Nylon 6T Polyamide (PA6T) | ||||||
 Same Sky (Formerly CUI Devices) | Kinked Pin | 5 | 3 | Unshielded | Stereo (3 Conductor TRS) | 0.142 in | 3.6 mm | Phone Jack | Female | Two Switches | 0.125 in | 3.5 mm | 0.141 in | Right Angle Through Hole | 85 °C | -25 °C | ||||||||||||
 Same Sky (Formerly CUI Devices) | Solder | 3 | 3 | Unshielded | Stereo (3 Conductor TRS) | 0.142 in | 3.6 mm | Phone Jack | Female | 0.125 in | 3.5 mm | 0.141 in | Right Angle Surface Mount | 85 °C | -25 °C | 12 VDC | Black Silver | Silver | 1 A | Copper Alloy | Nylon 6T Polyamide (PA6T) | 14 mm | 0.551 in | Brass | ||||
 Same Sky (Formerly CUI Devices) | Kinked Pin | 3 | 3 | Unshielded | Stereo (3 Conductor TRS) | 0.142 in | 3.6 mm | Phone Jack | Female | 0.125 in | 3.5 mm | 0.141 in | Right Angle Through Hole | 85 °C | -25 °C | 12 VDC | Black | Nickel | 1 A | Brass Copper Alloy | Polybutylene Terephthalate (PBT) | 14 mm | 0.551 in | Brass | ||||
 Same Sky (Formerly CUI Devices) | Solder | 3 | 3 | Shielded | Stereo (3 Conductor TRS) | Board Lock | 0.142 in | 3.6 mm | Phone Jack | Female | 0.125 in | 3.5 mm | 0.141 in | Board Cutout Right Angle Surface Mount | 85 °C | -25 °C | ||||||||||||
 Same Sky (Formerly CUI Devices) | Kinked Pin | 4 | 3 | Unshielded | Stereo (3 Conductor TRS) | Thread Lock | 0.142 in | 3.6 mm | Phone Jack | Female | Single Switch | 0.125 in | 3.5 mm | 0.141 in | Right Angle Through Hole | 85 °C | -25 °C | |||||||||||
 Same Sky (Formerly CUI Devices) | Solder | 4 | 3 | Unshielded | Stereo (3 Conductor TRS) | 0.142 in | 3.6 mm | Phone Jack | Female | Single Switch | 0.125 in | 3.5 mm | 0.141 in | Right Angle Through Hole | 85 °C | -25 °C |
