MIC2039 Series
Manufacturer: Microchip Technology
Beta
⌘K

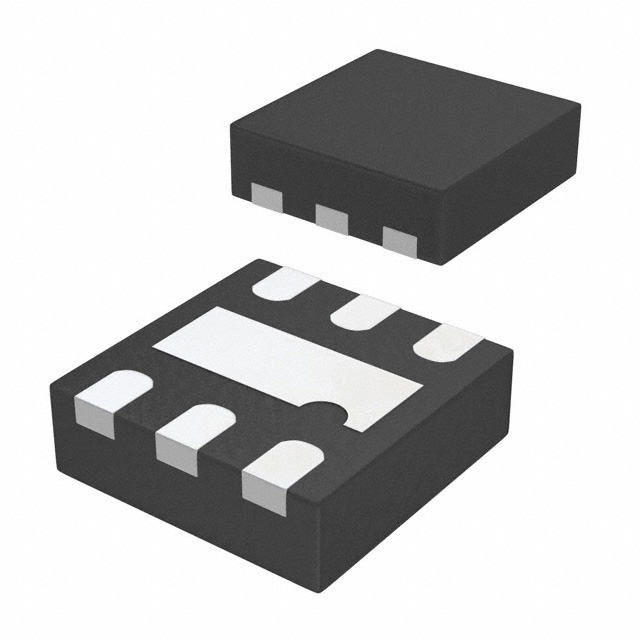

ADJ HIGH-SIDE, POWER DISTRIBUTION SWITCH 6 UDFN 2X2X0.6MM T/R ROHS COMPLIANT: YES
| Part | Features | Number of Outputs | Output Type | Current - Output (Max) [Max] | Interface | Voltage - Load [Min] | Voltage - Load [Max] | Voltage - Supply (Vcc/Vdd) | Mounting Type | Output Configuration | Package / Case | Switch Type | Fault Protection | Input Type | Ratio - Input:Output [custom] | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Rds On (Typ) | Type | Contents | Supplied Contents | Function | Utilized IC / Part | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | Slew Rate Controlled Status Flag | 1 | P-Channel | 2.5 A | On/Off | 2.5 V | 5.5 V | Surface Mount | High Side | 6-UFDFN Exposed Pad | General Purpose | Current Limiting (Adjustable) Over Temperature UVLO | Non-Inverting | 1:1 | 6-TDFN (2x2) | -40 °C | 125 ¯C | 75 mOhm | |||||||
 Microchip Technology | Slew Rate Controlled Status Flag | 1 | P-Channel | 2.5 A | On/Off | 2.5 V | 5.5 V | Surface Mount | High Side | SOT-23-6 | General Purpose | Current Limiting (Adjustable) Over Temperature UVLO | Non-Inverting | 1:1 | SOT-23-6 | -40 °C | 125 ¯C | 75 mOhm | |||||||
Microchip Technology | Slew Rate Controlled Status Flag | 1 | P-Channel | 2.5 A | On/Off | 2.5 V | 5.5 V | Surface Mount | High Side | 6-UFDFN Exposed Pad | General Purpose | Current Limiting (Adjustable) Over Temperature UVLO | Non-Inverting | 1:1 | 6-TDFN (2x2) | -40 °C | 125 ¯C | 75 mOhm | |||||||

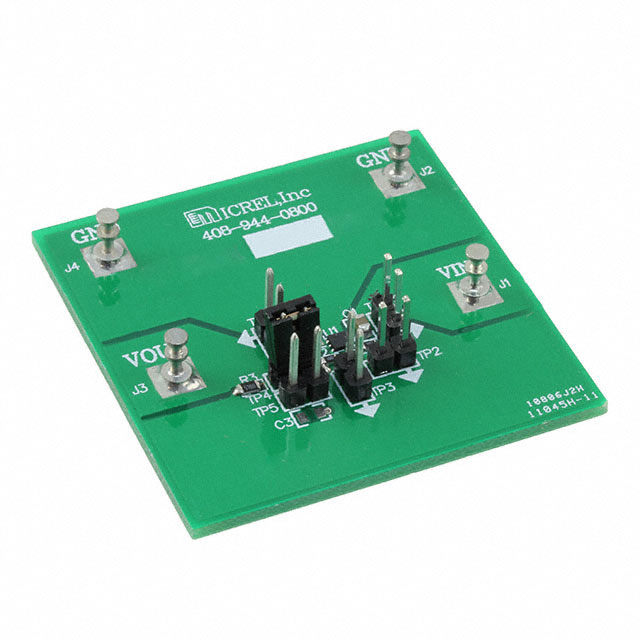

 Microchip Technology | Power Management | Board(s) | Board(s) | Power Distribution Switch (Load Switch) | MIC2039 | ||||||||||||||||||||
 Microchip Technology | Slew Rate Controlled Status Flag | 1 | P-Channel | 2.5 A | On/Off | 2.5 V | 5.5 V | Surface Mount | High Side | SOT-23-6 | General Purpose | Current Limiting (Adjustable) Over Temperature UVLO | Inverting | 1:1 | SOT-23-6 | -40 °C | 125 ¯C | 75 mOhm | |||||||
 Microchip Technology | Slew Rate Controlled Status Flag | 1 | P-Channel | 2.5 A | On/Off | 2.5 V | 5.5 V | Surface Mount | High Side | 6-UDFN Exposed Pad 6-TMLF® | General Purpose | Current Limiting (Adjustable) Over Temperature UVLO | Inverting | 1:1 | 6-TMLF® (2x2) | -40 °C | 125 ¯C | 75 mOhm | |||||||
Microchip Technology | Slew Rate Controlled Status Flag | 1 | P-Channel | 2.5 A | On/Off | 2.5 V | 5.5 V | Surface Mount | High Side | 6-UDFN Exposed Pad | General Purpose | Current Limiting (Adjustable) Over Temperature UVLO | Non-Inverting | 1:1 | 6-TDFN (2x2) | -40 °C | 125 ¯C | 75 mOhm | |||||||
 Microchip Technology | Slew Rate Controlled Status Flag | 1 | P-Channel | 2.5 A | On/Off | 2.5 V | 5.5 V | Surface Mount | High Side | SOT-23-6 | General Purpose | Current Limiting (Adjustable) Over Temperature UVLO | Inverting | 1:1 | SOT-23-6 | -40 °C | 125 ¯C | 75 mOhm | |||||||

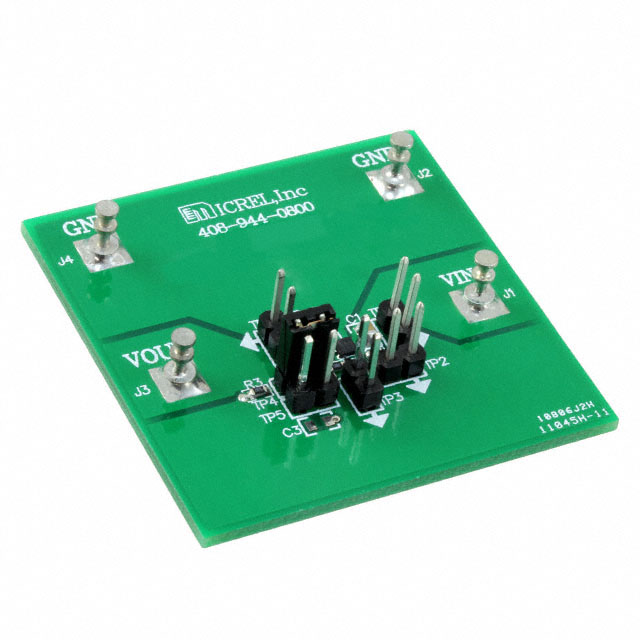

 Microchip Technology | Power Management | Board(s) | Power Distribution Switch (Load Switch) | MIC2039 | |||||||||||||||||||||
 Microchip Technology | Slew Rate Controlled Status Flag | 1 | P-Channel | 2.5 A | On/Off | 2.5 V | 5.5 V | Surface Mount | High Side | SOT-23-6 | General Purpose | Current Limiting (Adjustable) Over Temperature UVLO | Inverting | 1:1 | SOT-23-6 | -40 °C | 125 ¯C | 75 mOhm |
