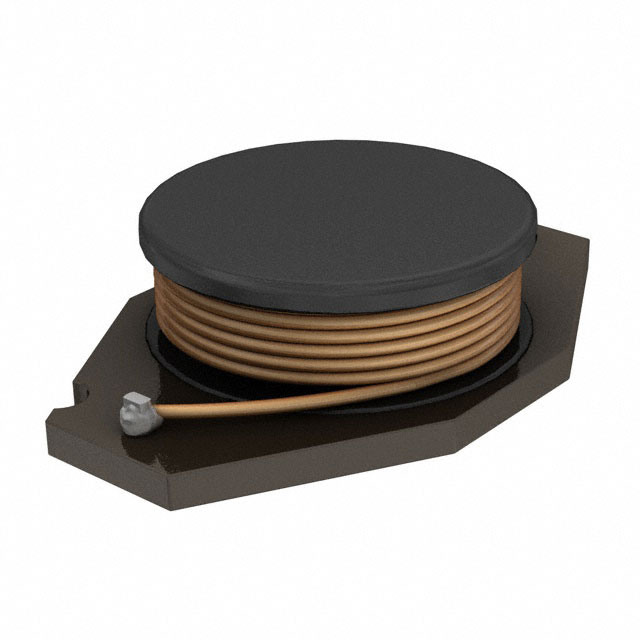

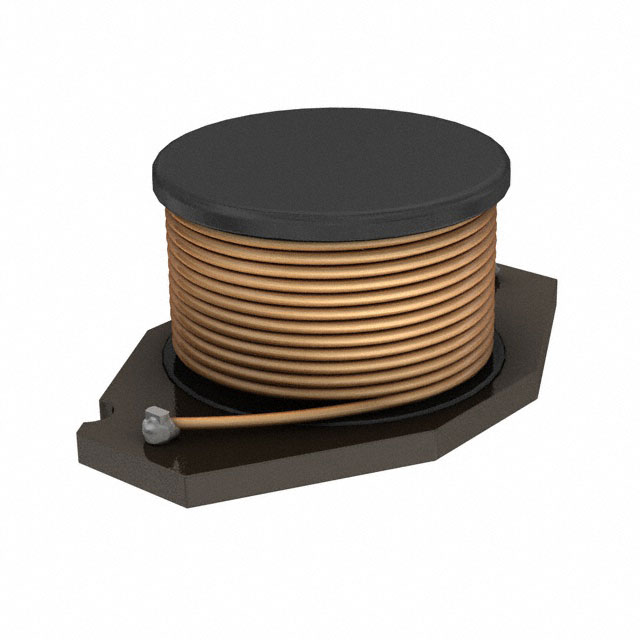

AX97 Series

Catalog

POWER INDUCTORS - SMD SMD INDUCTOR 15.0UH A. 5.30A

Part	Inductance	Mounting Type	Shielding	Package / Case	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Material - Core	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Triad Magnetics AX97-40150	15 µH	Surface Mount	Unshielded	Nonstandard	30 mOhm	100 kHz	5.3 A	7.21 mm	0.284 "	Drum Core Wirewound	Ferrite	SMD	16.1 mm	0.622 "	0.634 "	15.8 mm	20 %	85 °C	-40 C
Triad Magnetics AX97-40470	47 µH	Surface Mount	Unshielded	Nonstandard		100 kHz	3 A	7.21 mm	0.284 "	Drum Core Wirewound	Ferrite	SMD	16.1 mm	0.622 "	0.634 "	15.8 mm	20 %	85 °C	-40 C	70 mOhm
Triad Magnetics AX97-302R2	2.2 µH	Surface Mount	Unshielded	Nonstandard	20 mOhm	100 kHz	7.4 A	5.9 mm	0.232 "	Drum Core Wirewound	Ferrite	SMD	0.53 "		13.46 mm	0.37 in	20 %	85 °C	-40 C		9.4 mm
Triad Magnetics AX97-30102	1 mH	Surface Mount	Unshielded	Nonstandard	3.15 Ohm	100 kHz	0.3 A	5.9 mm	0.232 "	Drum Core Wirewound	Ferrite	SMD	0.53 "		13.46 mm	0.37 in	20 %	85 °C	-40 C		9.4 mm
Triad Magnetics AX97-20471	470 µH	Surface Mount	Unshielded	Nonstandard		100 kHz	0.2 A			Drum Core Wirewound	Ferrite	SMD	0.53 "		13.46 mm	0.37 in	20 %	85 °C	-40 C	2.5 Ohm	9.4 mm	0.138 "	3.5 mm
Triad Magnetics AX97-30470	47 µH	Surface Mount	Unshielded	Nonstandard	160 mOhm	100 kHz	2 A	5.9 mm	0.232 "	Drum Core Wirewound	Ferrite	SMD	0.53 "		13.46 mm	0.37 in	20 %	85 °C	-40 C		9.4 mm
