ER8-70S Series

Catalog

CONN RCPT 70POS SMD GOLD

Part	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Mated Stacking Heights	Number of Rows [custom]	Features	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch

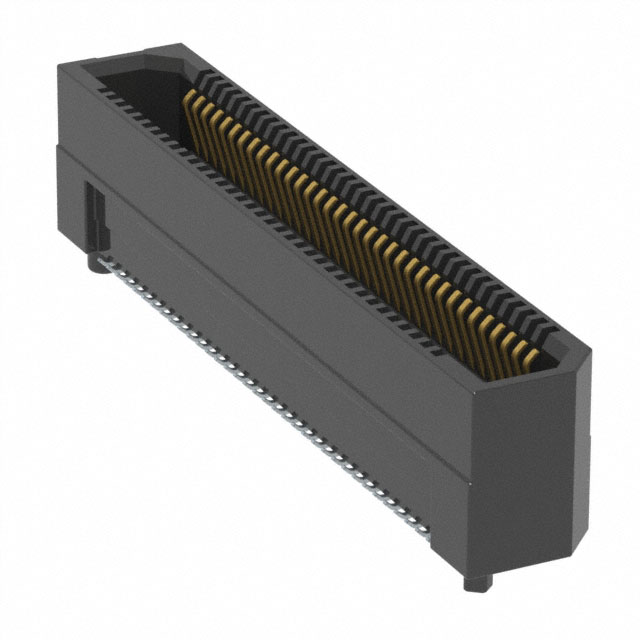

Hirose Electric Co Ltd ER8-70S-0.8SV-7H	Receptacle Outer Shroud Contacts	Gold	30 Áin	0.76 Ám	Surface Mount	70	9 mm 12 mm	2	Board Guide	7.24 mm	0.285 in	0.8 mm	0.031 in
Hirose Electric Co Ltd ER8-70S-0.8SV-5H	Receptacle Outer Shroud Contacts	Gold	30 Áin	0.76 Ám	Surface Mount	70	7 mm 10 mm	2	Board Guide	5.35 mm	0.211 in	0.8 mm	0.031 in
