UVY0J Series

Manufacturer: Nichicon

Catalog

CAP ALUM 15000UF 20% 6.3V RADIAL

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Ripple Current @ Low Frequency	Polarization	Ripple Current @ High Frequency	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Tolerance	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Nichicon UVY0J153MHD	32.5 mm	1.28 in	Through Hole	1.82 A	Polar	2.093 A	Can Radial	-55 C	105 ░C	General Purpose	2000 Hrs	0.295 in	7.5 mm	20 %	6.3 VDC	0.63 in	16 mm
Nichicon UVY0J103MHD	27 mm	1.063 in	Through Hole	1.65 A	Polar	1.8975 A	Can Radial	-55 C	105 ░C	General Purpose	2000 Hrs	0.295 in	7.5 mm	20 %	6.3 VDC	0.63 in	16 mm	10000 µF
Nichicon UVY0J682MHD1TO	27 mm	1.063 in	Through Hole	1.35 A	Polar	1.5525 A	Can Radial	-55 C	105 ░C	General Purpose	2000 Hrs	0.197 "	5 mm	20 %	6.3 VDC	0.492 in	12.5 mm	6800 µF
Nichicon UVY0J473MRD	52 mm	2.047 in	Through Hole	2.78 A	Polar	3.197 A	Can Radial	-55 C	105 ░C	General Purpose	2000 Hrs	0.394 in	10 mm	20 %	6.3 VDC	0.866 "	22 mm	47 mF
Nichicon UVY0J102MPD1TA			Through Hole	390 mA	Polar	448.5 mA	Can Radial	-55 C	105 ░C	General Purpose	1000 Hrs	0.138 in	3.5 mm	20 %	6.3 VDC	0.315 in	8 mm	1000 µF	0.512 "	13 mm
Nichicon UVY0J222MPD			Through Hole	635 mA	Polar	730.25 mA	Can Radial	-55 C	105 ░C	General Purpose	2000 Hrs	0.197 "	5 mm	20 %	6.3 VDC	0.394 in	10 mm	2200 µF		0.689 in	17.5 mm
Nichicon UVY0J102MPD1TD			Through Hole	390 mA	Polar	448.5 mA	Can Radial	-55 C	105 ░C	General Purpose	1000 Hrs	0.138 in	3.5 mm	20 %	6.3 VDC	0.315 in	8 mm	1000 µF	0.512 "	13 mm

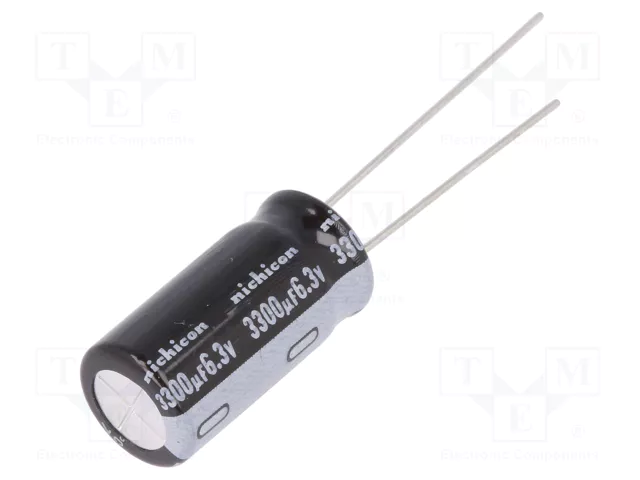

Nichicon UVY0J332MPD			Through Hole	840 mA	Polar		Can Radial	-55 C	105 ░C	General Purpose	2000 Hrs	0.197 "	5 mm	20 %	6.3 VDC	0.394 in	10 mm	3.3 mF				0.866 in	22 mm
Nichicon UVY0J222MPD1TD			Through Hole	635 mA	Polar	730.25 mA	Can Radial	-55 C	105 ░C	General Purpose	2000 Hrs	0.197 "	5 mm	20 %	6.3 VDC	0.394 in	10 mm	2200 µF		0.689 in	17.5 mm
Nichicon UVY0J223MHD			Through Hole	2.28 A	Polar	2.622 A	Can Radial	-55 C	105 ░C	General Purpose	2000 Hrs	0.295 in	7.5 mm	20 %	6.3 VDC	0.709 in	18 mm	22000 µF	1.476 in	37.5 mm
