HIF3BA Series

Catalog

CONN HEADER VERT 34POS 2.54MM

...

Part	Pitch - Mating	Pitch - Mating	Connector Type	Contact Shape	Contact Type	Insulation Material	Mounting Type	Termination	Number of Positions [custom]	Fastening Type	Contact Material	Number of Positions Loaded	Shrouding	Voltage Rating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Material Flammability Rating	Number of Rows [custom]	Contact Finish - Mating	Note	Contact Termination	Row Spacing	Row Spacing	Pitch	Pitch	Number of Positions	Features	Color	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish	Cable Termination	Wire Type	Wire Gauge	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Current Rating (Amps)

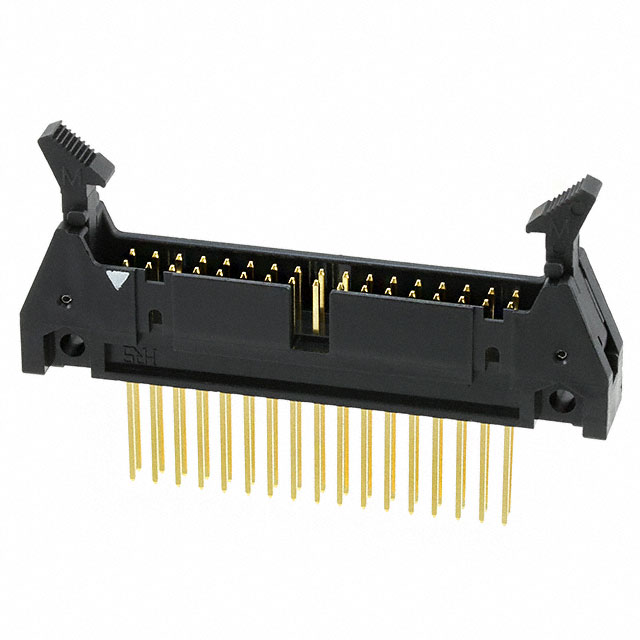

Hirose Electric Co Ltd HIF3BA-34P-2.54W(88)	0.1 "	2.54 mm	Header	Square	Male Pin	Polybutylene Terephthalate (PBT)	Through Hole	Wire Wrap	34	Latch Lock/Eject Hooks	Brass	All	Shrouded - 4 Wall	200 V	Black	-55 C	85 °C	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	2	Gold

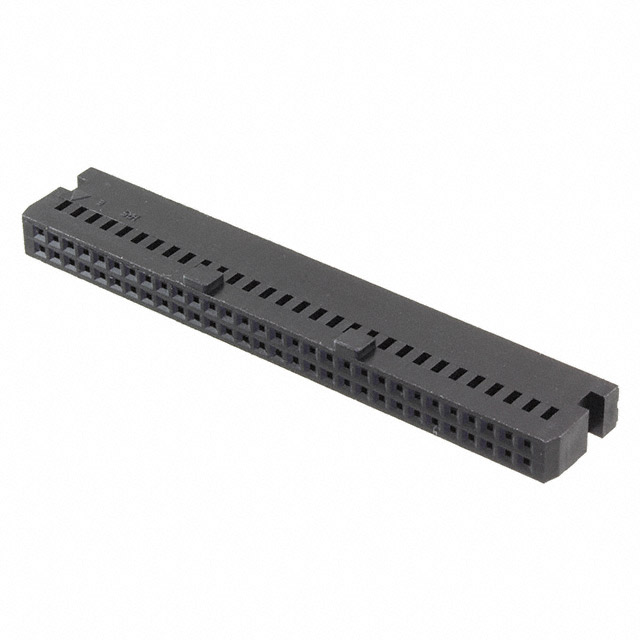

Hirose Electric Co Ltd HIF3BA-60D-2.54C			Receptacle		Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)									-55 C	85 °C					2		Contacts Not Included	Crimp	2.54 mm	0.1 "	0.1 "	2.54 mm	60	Polarizing Key	Black

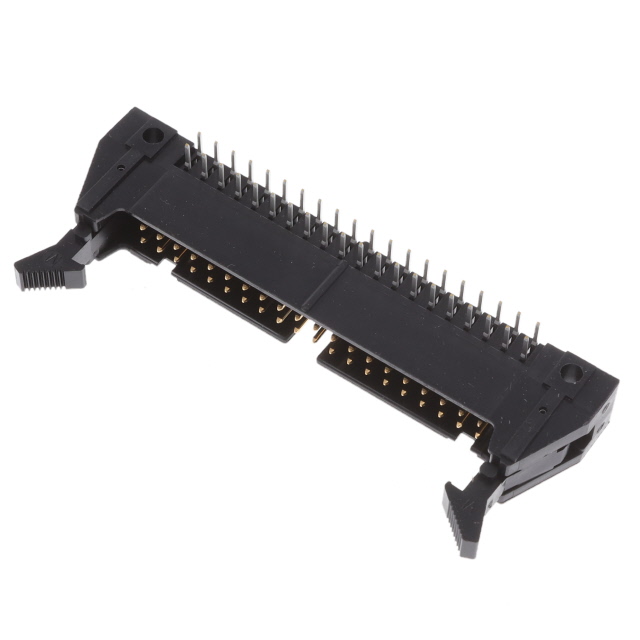

Hirose Electric Co Ltd HIF3BA-40PA-2.54DS(71)	0.1 "	2.54 mm	Header	Square	Male Pin	Polybutylene Terephthalate (PBT)	Right Angle Through Hole	Solder		Latch Lock/Eject Hooks	Brass	All	Shrouded - 4 Wall	200 V	Black	-55 C	85 °C	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	2	Gold							40			78.7 µin	2 µm	0.335 "	8.51 mm	6 mm	0.236 in	8 µin	0.203 µm	Tin	0.118 in	3 mm
Hirose Electric Co Ltd HIF3BA-64PD-2.54R-MC			Header		Male Pin		Free Hanging (In-Line)			Latch Lock/Eject Hooks												2				2.54 mm	0.1 "	0.1 "	2.54 mm	64	Feed Through Polarizing Key Strain Relief	Black												Gold	IDC	Ribbon Cable	28 AWG
Hirose Electric Co Ltd HIF3BA-16PA-2.54DSA(74)	0.1 "	2.54 mm	Header	Square	Male Pin	Polybutylene Terephthalate (PBT)	Through Hole	Solder		Latch Lock/Eject Hooks	Brass	All	Shrouded - 4 Wall	200 V	Black	-55 C	85 °C	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	2	Gold							16	Keying Slot						6 mm	0.236 in	20 µin	0.51 µm		0.13 "	3.3 mm					0.701 in	17.8 mm	16.7 mm	0.657 in

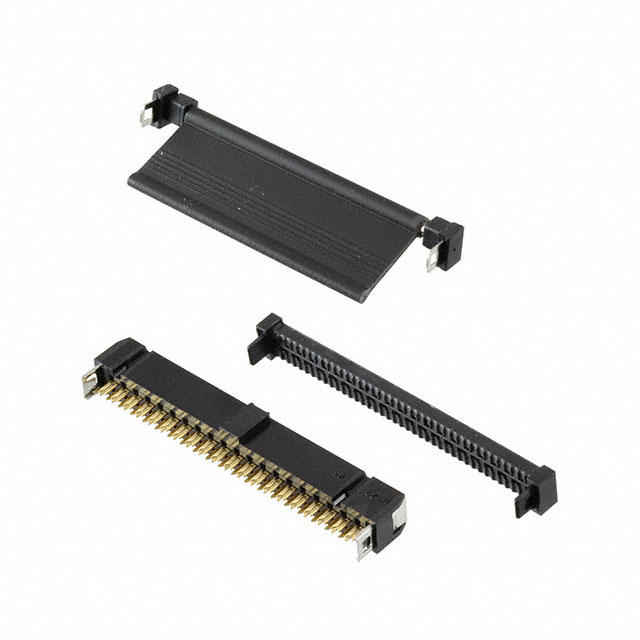

Hirose Electric Co Ltd HIF3BA-40D-2.54R-CL(71)			Socket		Female Socket		Free Hanging (In-Line)			Latch Lock												2				2.54 mm	0.1 "	0.1 "	2.54 mm	40	Feed Through Polarizing Key Strain Relief	Black												Gold	IDC	Ribbon Cable	28 AWG

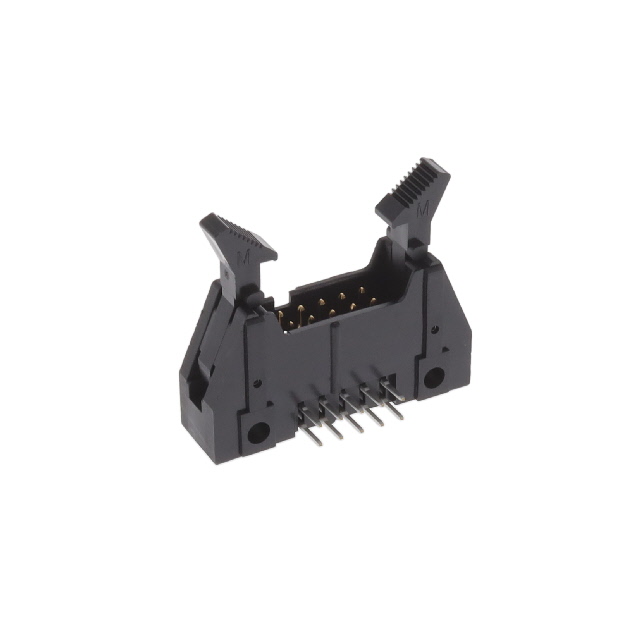

Hirose Electric Co Ltd HIF3BA-10PA-2.54DS(63)	0.1 "	2.54 mm	Header	Square	Male Pin	Polybutylene Terephthalate (PBT)	Right Angle Through Hole	Solder		Latch Lock/Eject Hooks	Brass	All	Shrouded - 4 Wall	200 V	Black	-55 C	85 °C	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	2	Gold							10			78.7 µin	2 µm	0.335 "	8.51 mm			8 µin	0.203 µm	Tin	0.118 in	3 mm									Varies by Wire Gauge
Hirose Electric Co Ltd HIF3BA-44D-2.54C(63)			Socket		Female Socket	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)									-55 C	85 °C					2		Contacts Not Included	Crimp	2.54 mm	0.1 "	0.1 "	2.54 mm	44	Polarizing Key	Black
Hirose Electric Co Ltd HIF3BA-40PA-2.54DS(82)	0.1 "	2.54 mm	Header	Square	Male Pin	Polybutylene Terephthalate (PBT)	Right Angle Through Hole	Solder		Latch Lock/Eject Hooks	Brass	All	Shrouded - 4 Wall	200 V	Black	-55 C	85 °C	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	2	Gold							40					0.335 "	8.51 mm	6 mm	0.236 in	8 µin	0.203 µm		0.118 in	3 mm

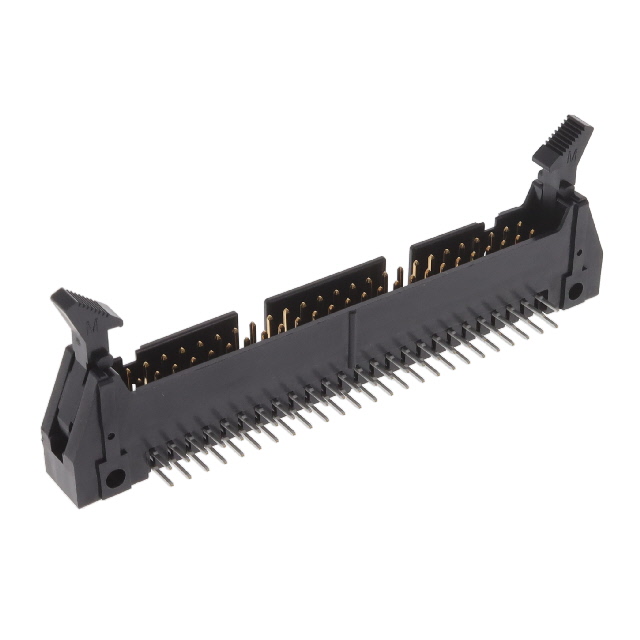

Hirose Electric Co Ltd HIF3BA-50PA-2.54DS(63)	0.1 "	2.54 mm	Header	Square	Male Pin	Polybutylene Terephthalate (PBT)	Right Angle Through Hole	Solder		Latch Lock/Eject Hooks	Brass	All	Shrouded - 4 Wall	200 V	Black	-55 C	85 °C	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	2	Gold							50			78.7 µin	2 µm	0.335 "	8.51 mm			8 µin	0.203 µm	Tin	0.118 in	3 mm									Varies by Wire Gauge
