BTW68 Series

Catalog

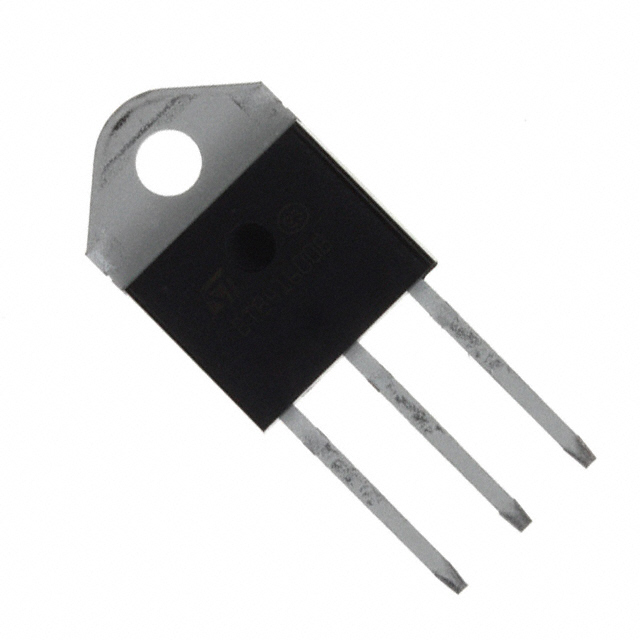

SCR 200V 30A TOP3

Part	Package / Case	Current - Off State (Max) [Max] [custom]	Supplier Device Package	Current - Hold (Ih) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Gate Trigger (Vgt) (Max)	SCR Type	Current - On State (It (RMS)) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Voltage - On State (Vtm) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type
STMicroelectronics BTW68-200RG	TOP-3	20 µA	TOP3	75 mA	19 A	125 °C	-40 C	1.5 V	Standard Recovery	30 A	50 mA	200 V	2.1 V	400 A 420 A	Through Hole
STMicroelectronics BTW68-600RG	TOP-3	20 µA	TOP3	75 mA	19 A	125 °C	-40 C	1.5 V	Standard Recovery	30 A	50 mA	600 V	2.1 V	400 A 420 A	Through Hole
STMicroelectronics BTW68-800RG	TOP-3	20 µA	TOP3	75 mA	19 A	125 °C	-40 C	1.5 V	Standard Recovery	30 A	50 mA	800 V	2.1 V	400 A 420 A	Through Hole
STMicroelectronics BTW68-1000RG	TOP-3	20 µA	TOP3	75 mA	19 A	125 °C	-40 C	1.5 V	Standard Recovery	30 A	50 mA	1 kV	2.1 V	400 A 420 A	Through Hole
