TPP 30 Series

Catalog

AC/DC CONVERTER 48V 30W

Part	Load Regulation	Current - Output (Max) [Max]	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Mounting Type	Efficiency	Package / Case	Power (Watts)	Voltage - Output 1	Applications	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Voltage - Isolation	Voltage - Output 1 [custom]
Traco Power TPP 30-148A-D	0.5 %	630 mA	Open Frame	24.1 mm	2.74 "	69.7 mm	34.6 mm	24.13 mm	1.36 "	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Universal Input	-40 °C	85 °C	CB CE cURus	Through Hole	91.5 %	5-DIP Module	30 Watts	48 V	Household Appliances ITE (Commercial) Medical
Traco Power TPP 30-109-J			Enclosed		3.95 in	100.3 mm		1 in	1.5 "	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Universal Input	-40 °C	85 °C	CB CE cURus	Chassis Mount	88 %		30 Watts	9 V	Household Appliances ITE (Commercial) Medical	38.1 mm	25.4 mm	3.34 A	4000 V

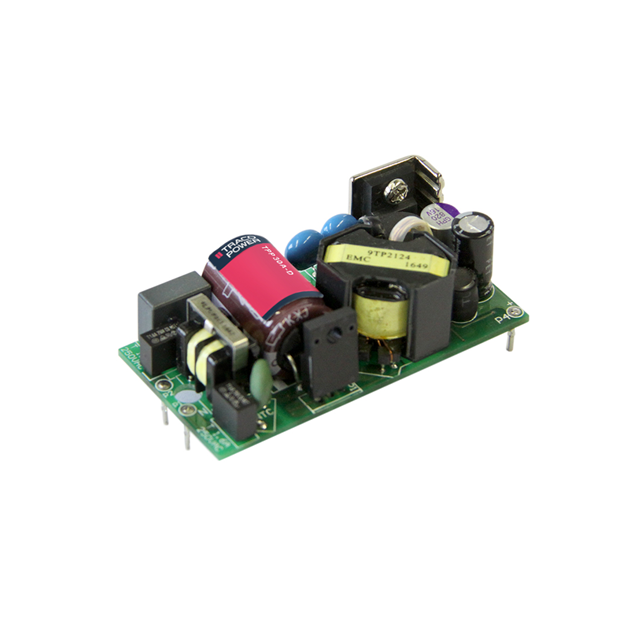

Traco Power TPP 30-115A-D	0.5 %	2 A	Open Frame	24.1 mm	2.74 "	69.7 mm	34.6 mm	24.13 mm	1.36 "	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Universal Input	-40 °C	85 °C	CB CE cURus	Through Hole	90.5 %	5-DIP Module	30 Watts	15 V	Household Appliances ITE (Commercial) Medical

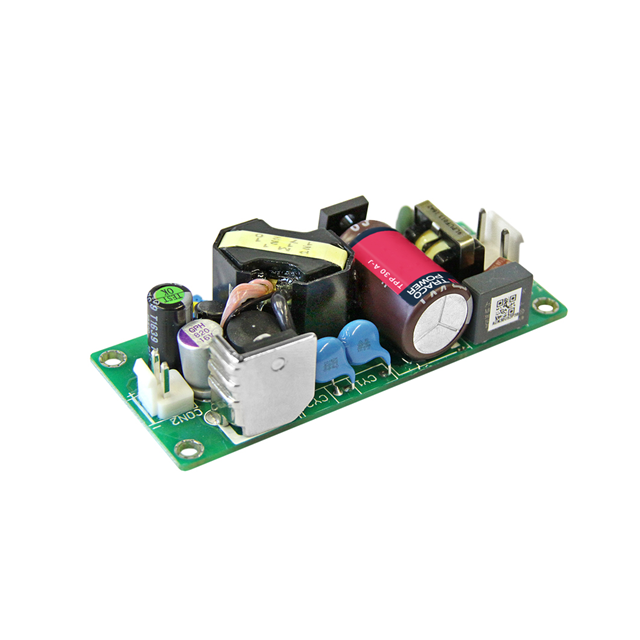

Traco Power TPP 30-115A-J			Open Frame	19.6 mm	3.34 "	84.8 mm	34.5 mm	0.77 in	1.36 "	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Universal Input	-40 °C	85 °C	CB CE cURus	Chassis Mount	90.5 %		30 Watts	15 V	Household Appliances ITE (Commercial) Medical			2 A	4000 V
Traco Power TPP 30-124-J			Enclosed		3.95 in	100.3 mm		1 in	1.5 "	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Universal Input	-40 °C	85 °C	CB CE cURus	Chassis Mount			30 Watts	24 V	Household Appliances ITE (Commercial) Medical	38.1 mm	25.4 mm	1.25 A	4000 V
Traco Power TPP 30-136A-J			Open Frame	19.6 mm	3.34 "	84.8 mm	34.5 mm	0.77 in	1.36 "	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Universal Input	-40 °C	85 °C	CB CE cURus	Chassis Mount	90 %		30 Watts		Household Appliances ITE (Commercial) Medical			840 mA	4000 V	36 V
Traco Power TPP 30-124A-D	0.5 %	1.25 A	Open Frame	24.1 mm	2.74 "	69.7 mm	34.6 mm	24.13 mm	1.36 "	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Universal Input	-40 °C	85 °C	CB CE cURus	Through Hole		5-DIP Module	30 Watts	24 V	Household Appliances ITE (Commercial) Medical
Traco Power TPP 30-109A-J			Open Frame	19.6 mm	3.34 "	84.8 mm	34.5 mm	0.77 in	1.36 "	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Universal Input	-40 °C	85 °C	CB CE cURus	Chassis Mount	88 %		30 Watts	9 V	Household Appliances ITE (Commercial) Medical			3.34 A	4000 V
Traco Power TPP 30-105-J			Enclosed		3.95 in	100.3 mm		1 in	1.5 "	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Universal Input	-40 °C	85 °C	CB CE cURus	Chassis Mount	87 %		30 Watts	5 V	Household Appliances ITE (Commercial) Medical	38.1 mm	25.4 mm	6 A	4000 V

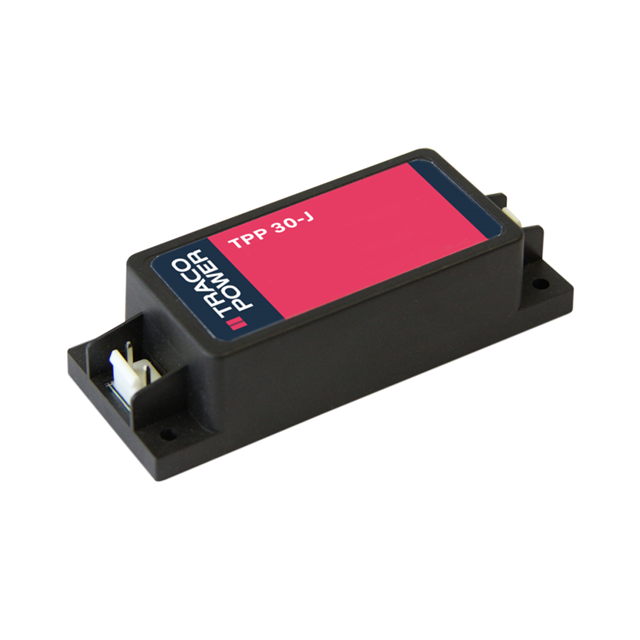

Traco Power TPP 30-115-J			Enclosed		3.95 in	100.3 mm		1 in	1.5 "	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Universal Input	-40 °C	85 °C	CB CE cURus	Chassis Mount	90.5 %		30 Watts	15 V	Household Appliances ITE (Commercial) Medical	38.1 mm	25.4 mm	2 A	4000 V
