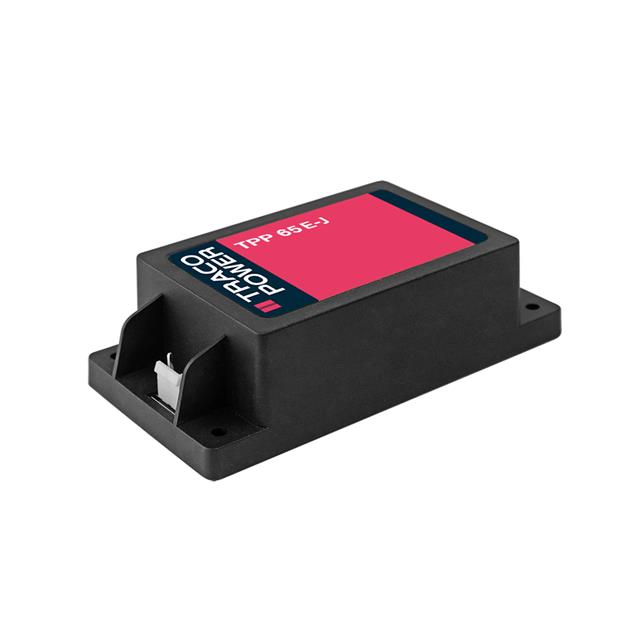

TPP 65E-J Series
Manufacturer: Traco Power
Beta
⌘K
SWITCHING POWER SUPPLIES 65W AC/DC POWER SUPPLY IN A CHASSIS MOUNT PLASTIC CASE
| Part | Voltage - Isolation | Approval Agency | Voltage - Output 1 | Mounting Type | Current - Output 1 | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Type | Features | Efficiency | Standard Number | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 4000 V | CB CE CSA cURus UKCA | 24 V | Chassis Mount | 2.71 A | 109.2 mm | 4.3 in | 2.2 " | 1.2 " | 30.5 mm | 55.9 mm | -40 °C | 85 °C | ITE (Commercial) Medical | 240 VAC 264 VAC 370 VDC | 85 VAC 100 VAC 120 VDC | 1 | Enclosed | Adjustable Output DC Input Capable Universal Input | 94 % | 60601-1; 62368-1 | |
 Traco Power | 4000 V | CB CE CSA cURus UKCA | 12 V | Chassis Mount | 5.42 A | 109.2 mm | 4.3 in | 2.2 " | 1.2 " | 30.5 mm | 55.9 mm | -40 °C | 85 °C | ITE (Commercial) Medical | 240 VAC 264 VAC 370 VDC | 85 VAC 100 VAC 120 VDC | 1 | Enclosed | Adjustable Output DC Input Capable Universal Input | 93 % | 60601-1; 62368-1 |
