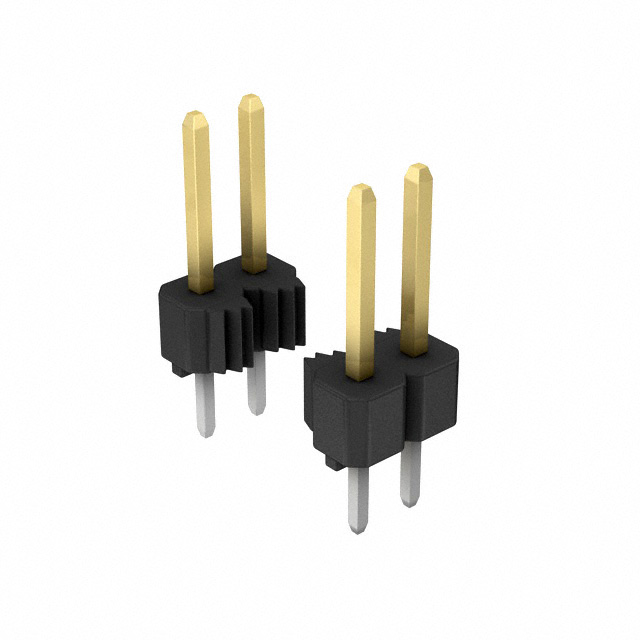

A1 Series

Catalog

HEADERS & WIRE HOUSINGS 10P M PIN HEADER DR STRAIGHT TYPE GOLD

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Fastening Type	Voltage Rating	Number of Rows [custom]	Insulation Height	Insulation Height	Termination	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Style	Material Flammability Rating	Contact Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Material	Number of Positions Loaded	Insulation Color	Insulation Material	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Height [custom]	Insulation Height [custom]
Hirose Electric Co Ltd A1-10PA-2.54DSA(71)	78.7 µin	2 µm	3 A	0.118 in	3 mm	Tin	Push-Pull	200 V	2	0.1 in	2.54 mm	Solder	Header	8 µin	0.203 µm	10	Unshrouded	0.1 in	2.54 mm	Through Hole	11.54 mm	0.454 "	-55 C	85 °C	Board to Board Cable	UL94 V-0	Male Pin	Square	6 mm	0.236 in	Brass	All	Black	Polybutylene Terephthalate (PBT)	Gold	0.1 "	2.54 mm

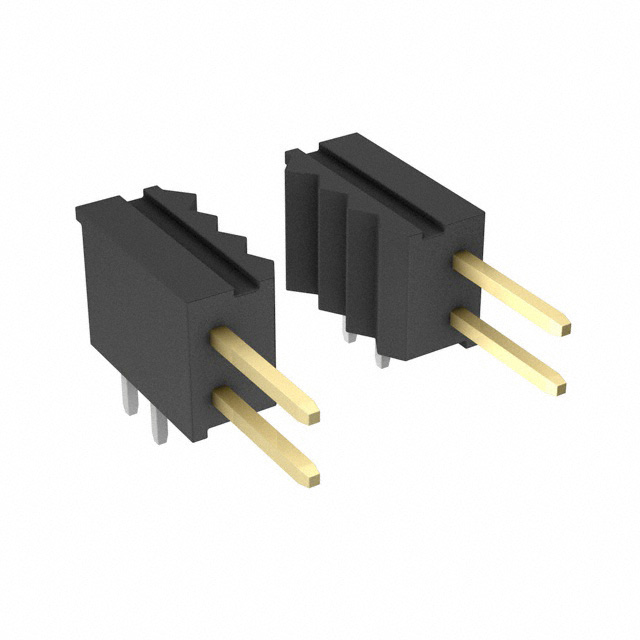

Hirose Electric Co Ltd A1-40PA-2.54DS(71)	78.7 µin	2 µm	3 A	0.118 in	3 mm	Tin	Push-Pull	200 V	2			Solder	Header	8 µin	0.203 µm	40	Unshrouded	0.1 in	2.54 mm	Right Angle Through Hole			-55 C	85 °C	Board to Board Cable	UL94 V-0	Male Pin	Square	6 mm	0.236 in	Brass	All	Black	Polybutylene Terephthalate (PBT)	Gold	0.1 "	2.54 mm	0.236 "	6 mm
Hirose Electric Co Ltd A1-50PA-2.54DS(71)	78.7 µin	2 µm	3 A	0.118 in	3 mm	Tin	Push-Pull	200 V	2			Solder	Header	8 µin	0.203 µm	50	Unshrouded	0.1 in	2.54 mm	Right Angle Through Hole			-55 C	85 °C	Board to Board Cable	UL94 V-0	Male Pin	Square	6 mm	0.236 in	Brass	All	Black	Polybutylene Terephthalate (PBT)	Gold	0.1 "	2.54 mm	0.236 "	6 mm
Hirose Electric Co Ltd A1-30PA-2.54DSA(71)	78.7 µin	2 µm	3 A	0.118 in	3 mm	Tin	Push-Pull	200 V	2	0.1 in	2.54 mm	Solder	Header	8 µin	0.203 µm	30	Unshrouded	0.1 in	2.54 mm	Through Hole	11.54 mm	0.454 "	-55 C	85 °C	Board to Board Cable	UL94 V-0	Male Pin	Square	6 mm	0.236 in	Brass	All	Black	Polybutylene Terephthalate (PBT)	Gold	0.1 "	2.54 mm
Hirose Electric Co Ltd A1-50PA-2.54DSA(71)	78.7 µin	2 µm	3 A	0.118 in	3 mm	Tin	Push-Pull	200 V	2	0.1 in	2.54 mm	Solder	Header	8 µin	0.203 µm	50	Unshrouded	0.1 in	2.54 mm	Through Hole	11.54 mm	0.454 "	-55 C	85 °C	Board to Board Cable	UL94 V-0	Male Pin	Square	6 mm	0.236 in	Brass	All	Black	Polybutylene Terephthalate (PBT)	Gold	0.1 "	2.54 mm

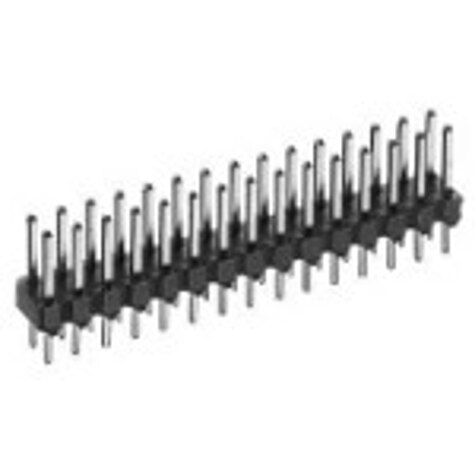

Hirose Electric Co Ltd A1-20PA-2.54DSA(71)	78.7 µin	2 µm	3 A	0.118 in	3 mm	Tin	Push-Pull	200 V	2	0.1 in	2.54 mm	Solder	Header	8 µin	0.203 µm	20	Unshrouded	0.1 in	2.54 mm	Through Hole	11.54 mm	0.454 "	-55 C	85 °C	Board to Board Cable	UL94 V-0	Male Pin	Square	6 mm	0.236 in	Brass	All	Black	Polybutylene Terephthalate (PBT)	Gold	0.1 "	2.54 mm
