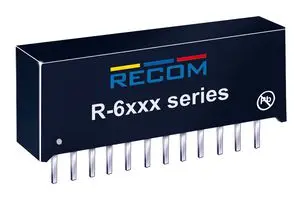

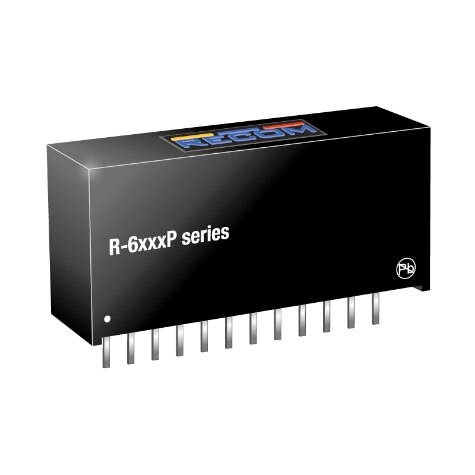

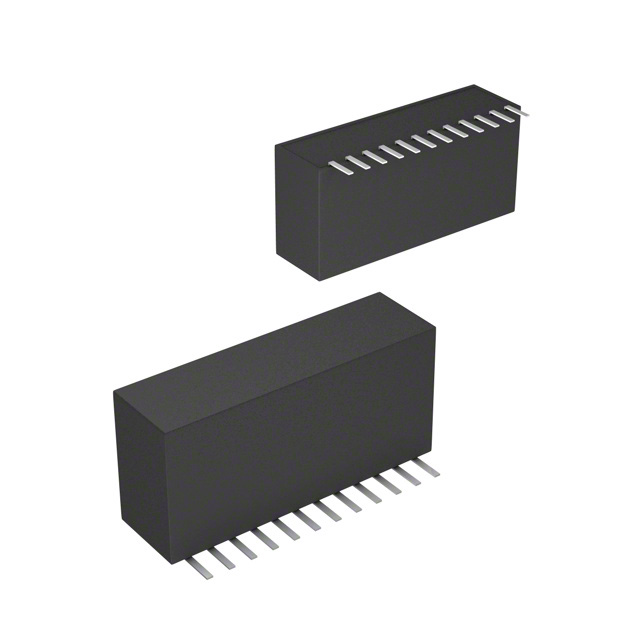

R-6xxxP_D Series
Manufacturer: Recom Power
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
NON ISOLATED POL DC/DC CONVERTER, SIP, 30 W, 3.3 V, 15 V, 2 A
| Part | Current - Output (Max) | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Efficiency | Mounting Type | Package / Case | Number of Outputs | Features | Voltage - Input (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Output 1 | Voltage - Input (Min) | Type | Power (Watts) | Applications | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 2 A | 1.27 in | 0.36 in | 0.59 in | 95 % | Through Hole | 12-SIP Module | 1 | Remote On/Off SCP | 32 V | -40 °C | 85 °C | 9 V | 11 V | Non-Isolated PoL Module | 18 W | ITE (Commercial) | Active High Enable |
 Recom Power | 1 A | 1.27 in | 0.59 in | 0.36 in | 96 % | Right Angle Through Hole | 12-SIP Module | 1 | Remote On/Off SCP | 32 V | -40 °C | 85 °C | 9 V | 11 V | Non-Isolated PoL Module | 9 W | ITE (Commercial) | Active High Enable |
Recom Power | 2 A | 1.27 in | 0.59 in | 0.36 in | 96 % | Right Angle Through Hole | 12-SIP Module | 1 | Remote On/Off SCP | 32 V | -40 °C | 85 °C | 12 V | 14 V | Non-Isolated PoL Module | 24 W | ITE (Commercial) | Active High Enable |
 Recom Power | 1 A | 1.27 in | 0.36 in | 0.59 in | 92 % | Through Hole | 12-SIP Module | 1 | Remote On/Off SCP | 32 V | -40 °C | 85 °C | 5 V | 9 V | Non-Isolated PoL Module | 5 W | ITE (Commercial) | Active High Enable |
Recom Power | 1 A | 1.27 in | 0.59 in | 0.36 in | 84 % | Right Angle Through Hole | 12-SIP Module | 1 | Remote On/Off SCP | 32 V | -40 °C | 85 °C | 2.5 V | 9 V | Non-Isolated PoL Module | 2.5 W | ITE (Commercial) | Active High Enable |
Recom Power | 1 A | 1.27 in | 0.36 in | 0.59 in | 97 % | Through Hole | 12-SIP Module | 1 | Remote On/Off SCP | 32 V | -40 °C | 85 °C | 12 V | 14 V | Non-Isolated PoL Module | 12 W | ITE (Commercial) | Active High Enable |
Recom Power | 2 A | 1.27 in | 0.59 in | 0.36 in | 95 % | Right Angle Through Hole | 12-SIP Module | 1 | Remote On/Off SCP | 32 V | -40 °C | 85 °C | 9 V | 11 V | Non-Isolated PoL Module | 18 W | ITE (Commercial) | Active High Enable |
 Recom Power | 2 A | 1.27 in | 0.36 in | 0.59 in | 90 % | Through Hole | 12-SIP Module | 1 | Remote On/Off SCP | 32 V | -40 °C | 85 °C | 5 V | 9 V | Non-Isolated PoL Module | 10 W | ITE (Commercial) | Active High Enable |
Recom Power | 1 A | 1.27 in | 0.59 in | 0.36 in | 79 % | Right Angle Through Hole | 12-SIP Module | 1 | Remote On/Off SCP | 32 V | -40 °C | 85 °C | 1.8 V | 9 V | Non-Isolated PoL Module | 1.8 W | ITE (Commercial) | Active High Enable |
 Recom Power | 1 A | 1.27 in | 0.59 in | 0.36 in | 92 % | Right Angle Through Hole | 12-SIP Module | 1 | Remote On/Off SCP | 32 V | -40 °C | 85 °C | 5 V | 9 V | Non-Isolated PoL Module | 5 W | ITE (Commercial) | Active High Enable |
