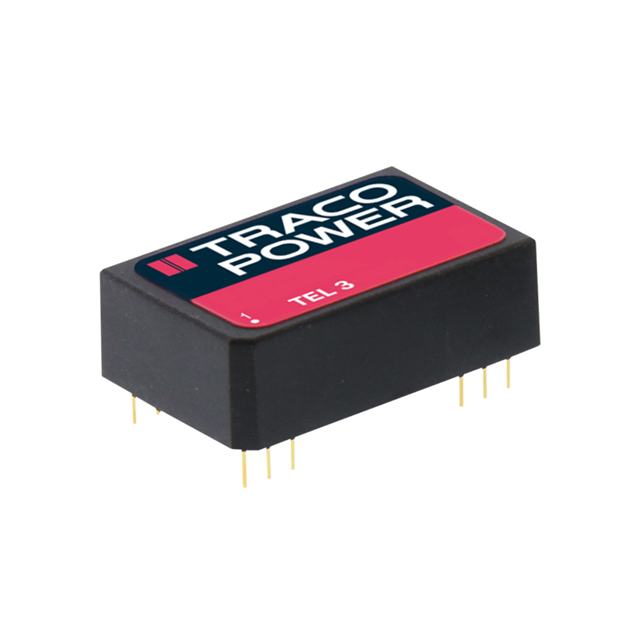

TEL 3 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 5V 3W
| Part | Mounting Type | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Number of Outputs | Power (Watts) | Current - Output (Max) [Max] | Type | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Voltage - Output 1 | Package / Case | Applications | Features | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

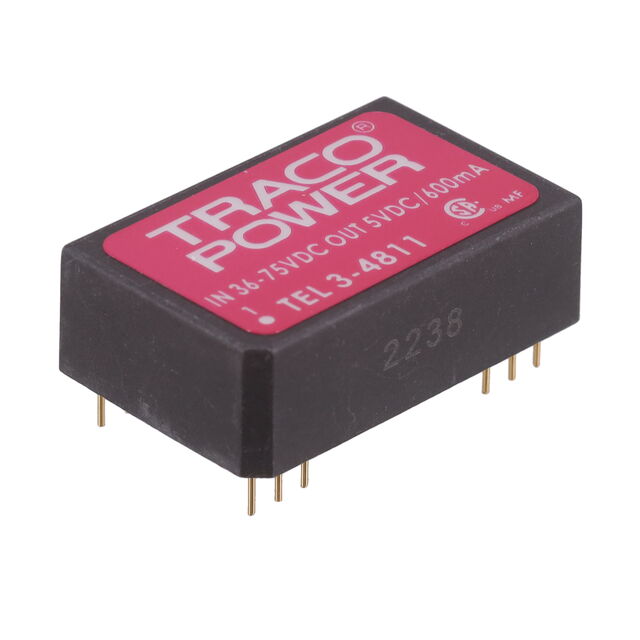

 Traco Power | Through Hole | 77 % | -40 °C | 85 °C | 1.5 kV | 1 | 3 W | 600 mA | Isolated Module | 75 V | 32 mm | 20 mm | 10.2 mm | 1.26 in | 0.79 in | 0.4 " | 36 V | 5 V | 24-DIP Module 13 Leads | ITE (Commercial) | SCP | ||||
 Traco Power | Through Hole | 70 % | -40 °C | 85 °C | 1.5 kV | 1 | 3 W | 600 mA | Isolated Module | 9 V | 32 mm | 20 mm | 10.2 mm | 1.26 in | 0.79 in | 0.4 " | 4.5 V | 5 V | 24-DIP Module 13 Leads | ITE (Commercial) | SCP | ||||
Traco Power | Through Hole | 74 % | -40 °C | 85 °C | 1.5 kV | 2 | 3 W | Isolated Module | 9 V | 32 mm | 20 mm | 10.2 mm | 1.26 in | 0.79 in | 0.4 " | 4.5 V | 15 V | 24-DIP Module 13 Leads | ITE (Commercial) | SCP | -15 V | 100 mA | 100 mA | ||
Traco Power | Through Hole | 80 % | -40 °C | 85 °C | 1.5 kV | 1 | 3 W | 250 mA | Isolated Module | 30 V | 32 mm | 20 mm | 10.2 mm | 1.26 in | 0.79 in | 0.4 " | 10 VDC | 12 V | 24-DIP Module | ITE (Commercial) | SCP | 12 Leads |
