A3B-4PA Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

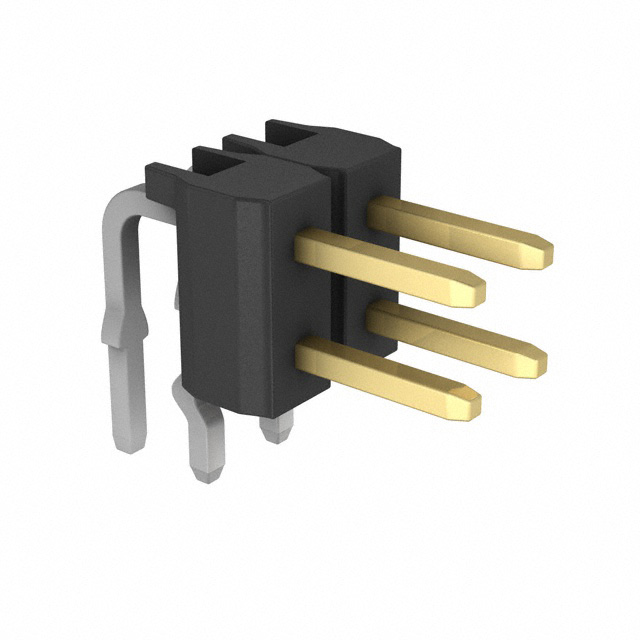

CONN HEADER R/A 4POS 2MM
| Part | Number of Positions | Pitch - Mating | Pitch - Mating | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Contact Type | Contact Finish - Post | Insulation Material | Shrouding | Insulation Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Material | Contact Finish - Mating | Connector Type | Termination | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Shape | Number of Rows [custom] | Insulation Height [z] | Insulation Height [z] | Contact Length - Post | Contact Length - Post | Style | Mated Stacking Heights [z] | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Insulation Height | Insulation Height | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 4 | 0.079 " | 2 mm | 200 VAC | 2 mm | 0.079 in | All | Male Pin | Tin | Nylon Polyamide (PA) | Unshrouded | Black | Right Angle Through Hole | -55 C | 85 °C | Flash | UL94 V-0 | Brass | Gold | Header | Kinked Pin Solder | 3.5 mm | 0.138 in | Push-Pull | Square | 2 | 4 mm | 0.157 in | 2.6 mm | 0.102 in | Board to Board Cable | |||||||
 Hirose Electric Co Ltd | 4 | 0.079 " | 2 mm | 200 VAC | 2 mm | 0.079 in | All | Male Pin | Nylon Polyamide (PA) | Unshrouded | Black | Right Angle Through Hole | -55 C | 85 °C | UL94 V-0 | Brass | Gold | Header | Kinked Pin Solder | 3.5 mm | 0.138 in | Push-Pull | Square | 2 | 4 mm | 0.157 in | 2.6 mm | 0.102 in | Board to Board Cable | |||||||||

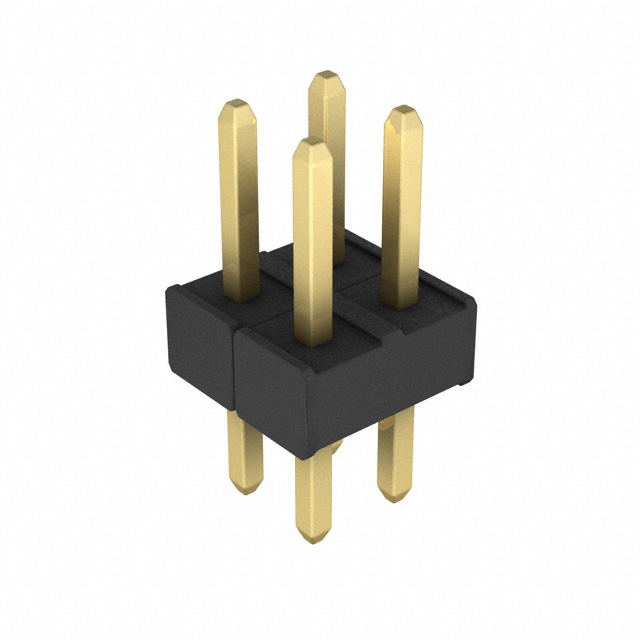

 Hirose Electric Co Ltd | 4 | 0.079 " | 2 mm | 200 VAC | 2 mm | 0.079 in | All | Male Pin | Tin | Nylon Polyamide (PA) | Unshrouded | Black | Through Hole | -55 C | 85 °C | Flash | UL94 V-0 | Brass | Gold | Header | Solder | 3.5 mm | 0.138 in | Push-Pull | Square | 2 | 2.6 mm | 0.102 in | Board to Board Cable | 6 mm 8.8 mm | 78.7 µin | 2 µm | 1.8 mm | 0.071 in | 7.9 mm | 0.311 in | ||
Hirose Electric Co Ltd | 4 | 0.079 " | 2 mm | 200 VAC | 2 mm | 0.079 in | All | Male Pin | Nylon Polyamide (PA) | Unshrouded | Black | Through Hole | -55 C | 85 °C | UL94 V-0 | Brass | Gold | Header | Solder | 3.5 mm | 0.138 in | Push-Pull | Square | 2 | 2.6 mm | 0.102 in | Board to Board Cable | 1.8 mm | 0.071 in | 7.9 mm | 0.311 in |
