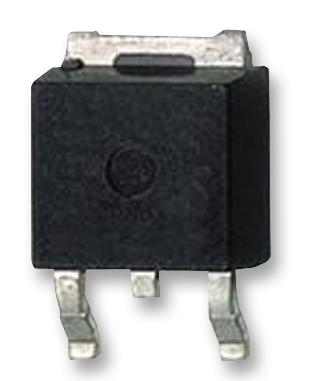

Pch -60V -14A Power MOSFET
Description
AI
RD3L140SPFRA is a automotive grade power MOSFET with Low on - resistance, suitable for switching.
Beta
⌘K
Pch -60V -14A Power MOSFET
Pch -60V -14A Power MOSFET
| Part | Vgs(th) (Max) @ Id | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) | Package / Case | Operating Temperature | FET Type | Supplier Device Package | Technology | Mounting Type | Gate Charge (Qg) (Max) @ Vgs | Grade | Input Capacitance (Ciss) (Max) @ Vds [Max] | Qualification | Power Dissipation (Max) | Rds On (Max) @ Id, Vgs | Vgs (Max) | Drive Voltage (Max Rds On, Min Rds On) [Max] | Drive Voltage (Max Rds On, Min Rds On) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 3 V | 14 A | 60 V | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 150 °C | P-Channel | TO-252 | MOSFET (Metal Oxide) | Surface Mount | 27 nC | Automotive | 1900 pF | AEC-Q101 | 20 W | 84 mOhm | 20 V | 4 V | 10 V |
Rohm Semiconductor | 3 V | 14 A | 60 V | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 150 °C | P-Channel | TO-252 | MOSFET (Metal Oxide) | Surface Mount | 27 nC | 1900 pF | 20 W | 84 mOhm | 20 V | 4 V | 10 V |
