SBH-01A Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

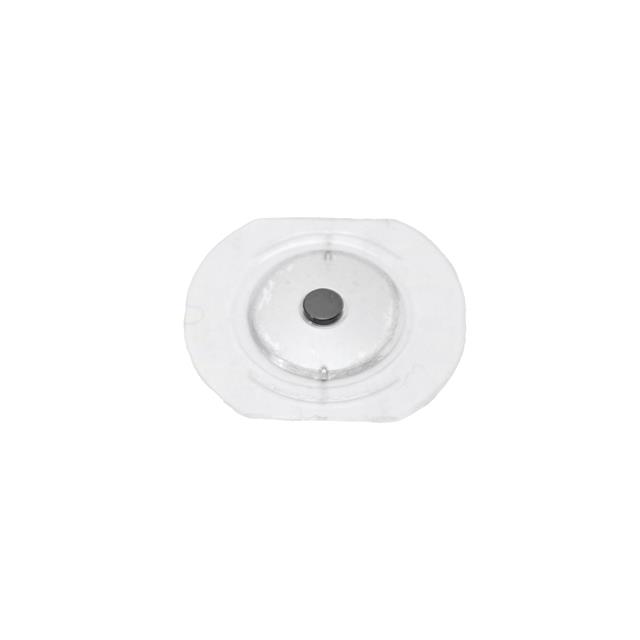

SWITCH TACTILE SPST-NO 0.1A 12V
| Part | Mechanical Life | Contact Rating @ Voltage | Illumination | Termination Style | Actuator Type | Actuator Orientation | Operating Force | Circuit | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 1000000 Cycles | 0.1 A 12 VDC | Non-Illuminated | Circular Contact | Snap Dome | Top Actuated | 224 gf | SPST-NO | Off-Mom | 80 °C | -20 ░C | Surface Mount |
NMB TECHNOLOGIES | 1000000 Cycles | 0.1 A 12 VDC | Non-Illuminated | Circular Contact | Snap Dome | Top Actuated | 438 gf | SPST-NO | Off-Mom | 80 °C | -20 ░C | Surface Mount |
NMB TECHNOLOGIES | 1000000 Cycles | 0.1 A 12 VDC | Non-Illuminated | Circular Contact | Snap Dome | Top Actuated | 163 gf | SPST-NO | Off-Mom | 80 °C | -20 ░C | Surface Mount |
NMB TECHNOLOGIES | 1000000 Cycles | 0.1 A 12 VDC | Non-Illuminated | Circular Contact | Snap Dome | Top Actuated | 326 gf | SPST-NO | Off-Mom | 85 °C | -20 ░C | Surface Mount |
