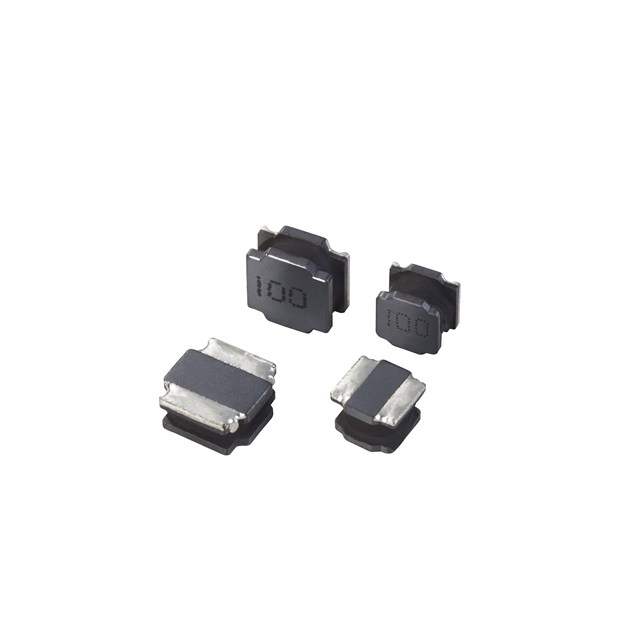

TYA Series

Power Inductors - SMD 0.68uH 9A 20% Wire Wound

Manufacturer: Laird Technologies EMI

Catalog

Power Inductors - SMD 0.68uH 9A 20% Wire Wound

Catalog

Power Inductors - SMD 0.68uH 9A 20% Wire Wound

Part	Current - Saturation (Isat)	Material - Core	Ratings	Type	Shielding	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Package / Case	Mounting Type	Current Rating (Amps)	Tolerance	Inductance Frequency - Test	DC Resistance (DCR)	Height - Seated (Max)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Laird Technologies EMI TYA40206R8M-10	3 A	Metal	AEC-Q200	Drum Core Wirewound	Shielded	160 mOhm	2.1 mm	0.083 in	0.157 "	4 mm	0.157 in	4 mm	125 °C	-40 C	6.8 µH	Nonstandard	Surface Mount	2.4 A	20 %	1 MHz
Laird Technologies EMI TYA4020R68M-10	9 A	Metal	AEC-Q200	Drum Core Wirewound	Shielded		2.1 mm	0.083 in	0.157 "	4 mm	0.157 in	4 mm	125 °C	-40 C	0.68 µH	Nonstandard	Surface Mount	5.8 A	20 %	1 MHz	24.5 mOhm

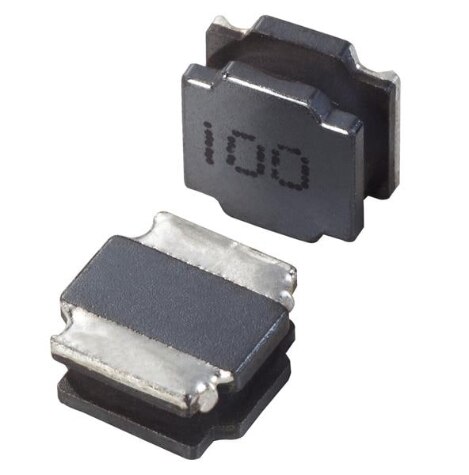

Laird Technologies EMI TYA30122R2M-10	2.8 A	Metal	AEC-Q200	Drum Core Wirewound	Shielded	108 mOhm		0.051 in	0.118 in	3 mm	0.118 "	3 mm	125 °C	-40 C	2.2 µH	Nonstandard	Surface Mount	2.05 A	20 %	1 MHz		1.3 mm
Laird Technologies EMI TYA30121R5M-10	3.4 A	Metal	AEC-Q200	Drum Core Wirewound	Shielded			0.051 in	0.118 in	3 mm	0.118 "	3 mm	125 °C	-40 C	1.5 µH	Nonstandard	Surface Mount	2.5 A	20 %	1 MHz	74 mOhm	1.3 mm
Laird Technologies EMI TYA2016103R3M-10	1.4 A	Metal	AEC-Q200	Drum Core Wirewound	Shielded	307 mOhm			0.063 "	1.6 mm	0.079 in	2 mm	125 °C	-40 C	3.3 µH	0806 (2016 Metric)	Surface Mount	1.1 A	20 %	1 MHz			0806	0.045 in	1.15 mm
