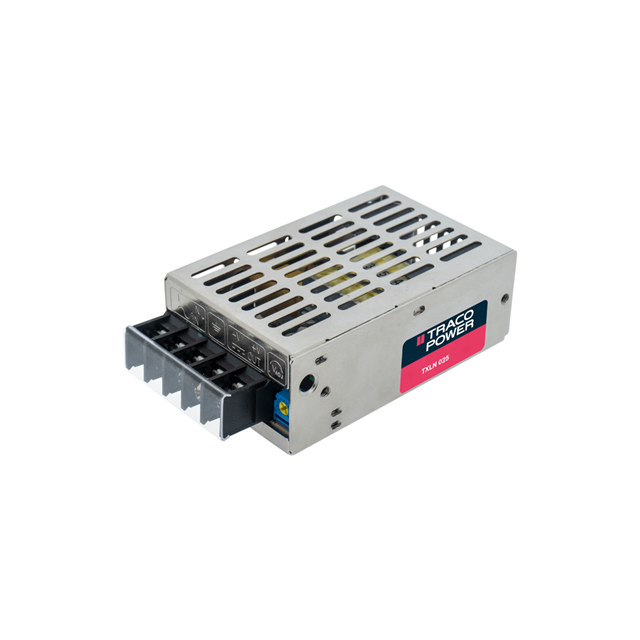

TXLN 025 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 5V 25W
| Part | Minimum Load Required | Features | Mounting Type | Current - Output 1 | Efficiency | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Power (Watts) | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Number of Outputs | Standard Number | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Adjustable Output Universal Input | Chassis Mount | 5 A | 79 % | CB CE cURus | 70 °C | -20 °C | 5 V | 25 W | ITE (Commercial) | 88 VAC 125 VDC | 264 VAC 375 VDC | 3000 V | 1 | 62368-1 | Enclosed | 3.11 " | 2 in | 1.1 in | 28 mm | 79 mm | 50.8 mm | |
Traco Power | Adjustable Output Universal Input | Chassis Mount | 6 A | 72 % | CB CE cURus | 70 °C | -20 °C | 3.3 V | 20 W | ITE (Commercial) | 88 VAC 125 VDC | 264 VAC 375 VDC | 3000 V | 1 | 62368-1 | Enclosed | 3.11 " | 2 in | 1.1 in | 28 mm | 79 mm | 50.8 mm | |
Traco Power | Adjustable Output Universal Input | Chassis Mount | 1.1 A | 86 % | CB CE cURus | 70 °C | -20 °C | 24 V | 26 W | ITE (Commercial) | 88 VAC 125 VDC | 264 VAC 375 VDC | 3000 V | 1 | 62368-1 | Enclosed | 3.11 " | 2 in | 1.1 in | 28 mm | 79 mm | 50.8 mm | |
Traco Power | Adjustable Output Universal Input | Chassis Mount | 570 mA | 88 % | CB CE cURus | 70 °C | -20 °C | 48 V | 27 W | ITE (Commercial) | 88 VAC 125 VDC | 264 VAC 375 VDC | 3000 V | 1 | 62368-1 | Enclosed | 3.11 " | 2 in | 1.1 in | 28 mm | 79 mm | 50.8 mm |
