PMB Series

Manufacturer: Nichicon

Catalog

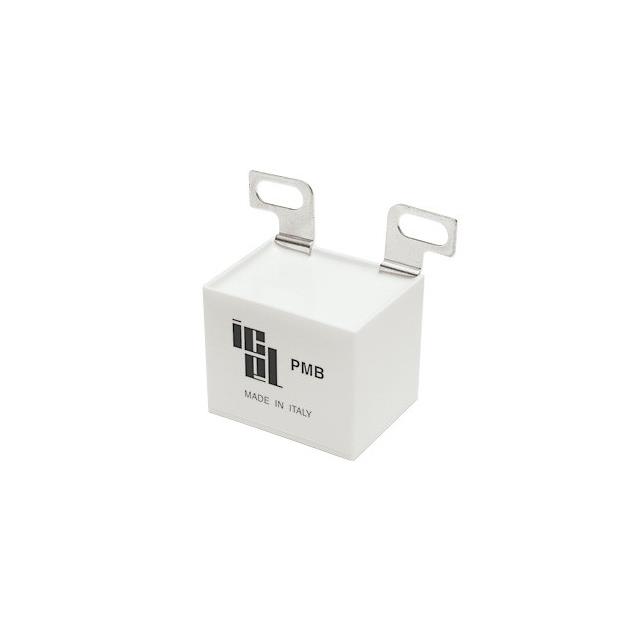

FILM CAPACITORS BOXED. LUGS 24.5 X 27.5 X 42.5

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Applications	Dielectric Material	Capacitance	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Lead Spacing	Lead Spacing	Voltage Rating - AC	ESR (Equivalent Series Resistance)	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)
Nichicon PMB2153390KSP	1.083 in	27.5 mm	1.5 kV	1.5 kV	85 °C	-40 C	Screw Terminals	DV/DT High Frequency High Pulse Snubber Switching	Polypropylene (PP) Metallized	0.39 µF	Chassis Mount	0.965 "	24.5 mm	1.673 "	42.5 mm	Rectangular Box	25.5 mm	1.004 in	650 V	4.2 mOhm	10 %
Nichicon PMB2124200KSP	1.772 "	45 mm	1.2 kV	1200 V	85 °C	-40 C	Screw Terminals	DV/DT High Frequency High Pulse Snubber Switching	Polypropylene (PP) Metallized	2 µF	Chassis Mount	1.181 in	30 mm	2.264 in	57.5 mm	Rectangular Box			630 V	2.4 mOhms	10 %
Nichicon PMB2123330KVP	1.083 in	27.5 mm	1.2 kV	1200 V	85 °C	-40 C	Screw Terminals	DV/DT High Frequency High Pulse Snubber Switching	Polypropylene (PP) Metallized	0.33 µF	Chassis Mount	0.965 "	24.5 mm	1.673 "	42.5 mm	Rectangular Box			630 V	5.1 mOhm	10 %
Nichicon PMB2124150KSP	1.772 "	45 mm	1.2 kV	1200 V	85 °C	-40 C	Screw Terminals	DV/DT High Frequency High Pulse Snubber Switching	Polypropylene (PP) Metallized	1500 nF	Chassis Mount	1.299 in	33 mm	1.673 "	42.5 mm	Rectangular Box			630 V	2.1 mOhms	10 %
Nichicon PMB2203220KVR	1.083 in	27.5 mm	2 kV	2 kVDC	85 °C	-40 C	Screw Terminals	DV/DT High Frequency High Pulse Snubber Switching	Polypropylene (PP) Metallized	0.22 µF	Chassis Mount	0.965 "	24.5 mm	1.673 "	42.5 mm	Rectangular Box			700 V	5.1 mOhm	10 %
Nichicon PMB2124150KAP	1.772 "	45 mm	1.2 kV	1200 V	85 °C	-40 C	Screw Terminals	DV/DT High Frequency High Pulse Snubber Switching	Polypropylene (PP) Metallized	1500 nF	Chassis Mount	1.299 in	33 mm	1.673 "	42.5 mm	Rectangular Box	58.25 mm	2.293 in	630 V	2.1 mOhms	10 %
Nichicon PMB2204120KSL			2 kV	2 kVDC	85 °C	-40 C	Screw Terminals	DV/DT High Frequency High Pulse Snubber Switching	Polypropylene (PP) Metallized	1.2 µF	Chassis Mount		1.378 in		2.264 in	Rectangular Box	37 mm	1.457 "	700 V	2.5 mOhms	10 %	1.969 in	50 mm	57.5 mm	35 mm
Nichicon PMB2104200KVR	1.772 "	45 mm	1 kV	1 kVDC	85 °C	-40 C	Screw Terminals	DV/DT High Frequency High Pulse Snubber Switching	Polypropylene (PP) Metallized	2 µF	Chassis Mount	1.299 in	33 mm	1.673 "	42.5 mm	Rectangular Box			575 V	2 mOhms	10 %
Nichicon PMB2104120KAPA	1.457 in		1 kV	1 kVDC	85 °C	-40 C	Screw Terminals	DV/DT High Frequency High Pulse Snubber Switching	Polypropylene (PP) Metallized	1.2 µF	Chassis Mount	1.102 "		1.673 "	42.5 mm	Rectangular Box	58.25 mm	2.293 in	575 V	2.5 mOhms	10 %				28 mm	37 mm
Nichicon PMB2124220KSP			1.2 kV	1200 V	85 °C	-40 C	Screw Terminals	DV/DT High Frequency High Pulse Snubber Switching	Polypropylene (PP) Metallized	2.2 µF	Chassis Mount		1.378 in		2.264 in	Rectangular Box	39.5 mm	1.555 "	630 V	2.3 mOhms	10 %	1.969 in	50 mm	57.5 mm	35 mm
