ISP817 Series

Catalog

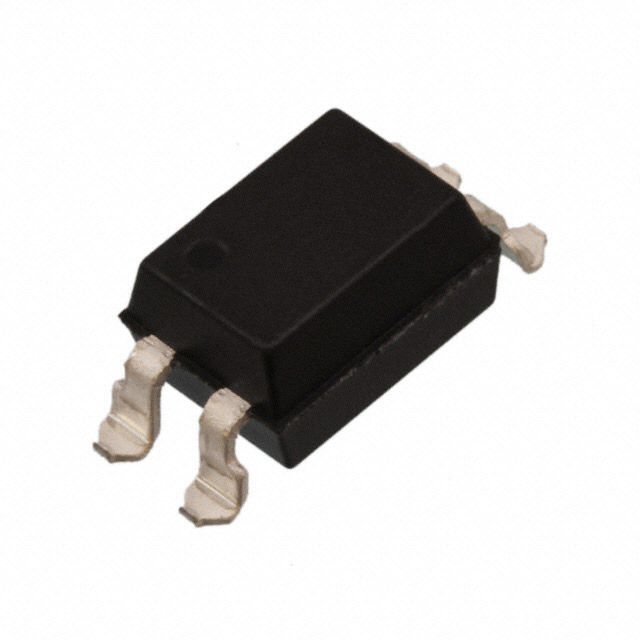

OPTOISO 5.3KV TRANS 4SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output / Channel [custom]	Input Type	Current Transfer Ratio (Min)	Current - DC Forward (If) (Max) [Max]	Voltage - Isolation [custom]	Number of Channels [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Current Transfer Ratio (Max) [Max]	Vce Saturation (Max) [Max]	Package / Case	Mounting Type	Package / Case	Package / Case	Current Transfer Ratio (Max)
Isocom Components 2004 LTD ISP817BSM	-55 C -30 ░C	100 °C 110 °C	50 mA	DC	130 %	50 mA	5300 Vrms	1	4 µs	3 µs	Transistor	260 %	200 mV	4-SMD Gull Wing	Surface Mount
Isocom Components 2004 LTD ISP817BX	-55 C -30 ░C	100 °C 110 °C	50 mA	DC	130 %	50 mA	5300 Vrms	1	4 µs	3 µs	Transistor	260 %	200 mV	4-DIP	Through Hole	0.3 in	7.62 mm
Isocom Components 2004 LTD ISP817AXSMT/R	-30 ░C	100 °C	50 mA	DC	80 %	50 mA	5300 Vrms	1	4 µs	3 µs	Transistor		200 mV	4-SMD Gull Wing	Surface Mount			160 %
Isocom Components 2004 LTD ISP817BXSMT/R	-55 C -30 ░C	100 °C 110 °C	50 mA	DC	130 %	50 mA	5300 Vrms	1	4 µs	3 µs	Transistor	260 %	200 mV	4-SMD Gull Wing	Surface Mount
