PX10 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

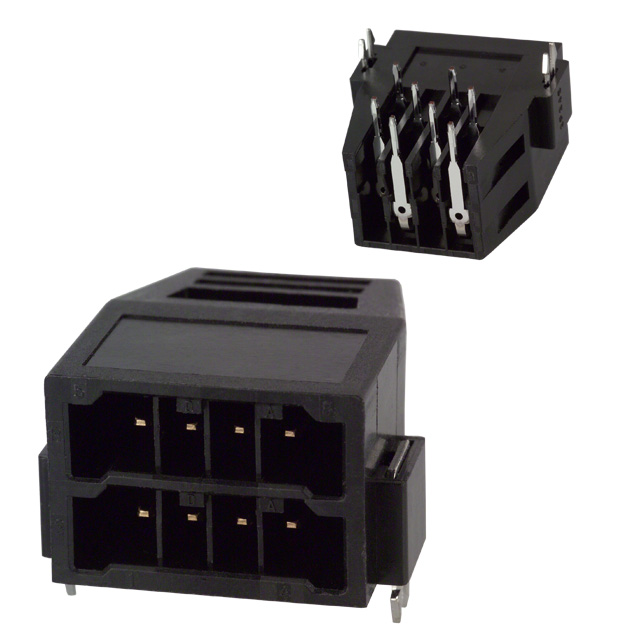

CONN HEADER R/A 8POS 3.4MM
| Part | Contact Type | Material Flammability Rating | Fastening Type | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Shrouding | Number of Rows [custom] | Insulation Height | Insulation Height | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Shape | Style | Number of Positions | Contact Material | Mounting Type | Termination | Insulation Material | Number of Positions Loaded | Insulation Color | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Male Pin | UL94 V-0 | Push-Pull | 0.134 in | 3.4 mm | 10 A | Shrouded - 4 Wall | 2 | 14.8 mm | 0.583 " | Board Lock | -55 C | 105 ░C | 600 V | Square | Board to Cable/Wire | 8 | Copper Alloy | Right Angle Through Hole | Solder | Polybutylene Terephthalate (PBT) | All | Black | 4.5 mm | 0.177 in | Gold | Header |
 Hirose Electric Co Ltd |
