X0405 Series
Manufacturer: STMicroelectronics
Beta
⌘K

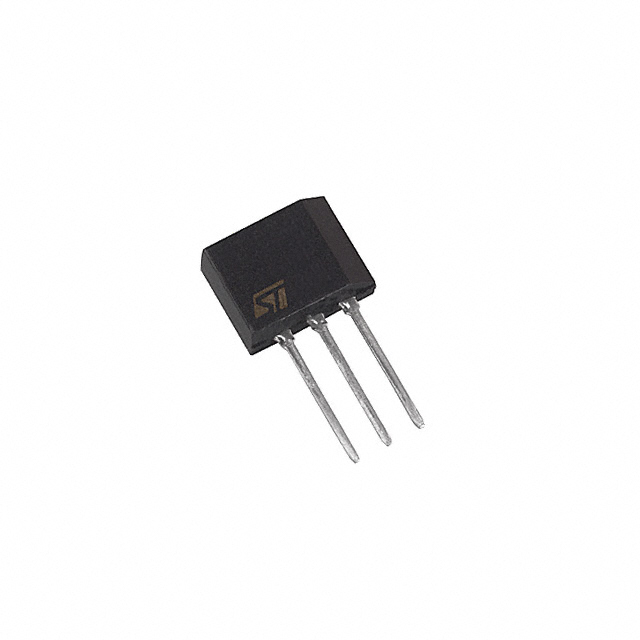

SCR 600V 1.35A TO202-3
| Part | Voltage - Gate Trigger (Vgt) (Max) | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Current - On State (Max) | Current - Non Rep. Surge Type | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge (Itsm) | Voltage - Off State | Current - Gate Trigger (Igt) (Max) | Current - Off State (Max) | Package / Case | Current - On State (It (RMS)) (Max) | Package Name | Voltage - On State (Vtm) (Max) | SCR Type | Current - Hold (Ih) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 800 mV | Through Hole | 125 °C | -40 °C | 900 mA | Itsm | 50Hz 60Hz | 30 A 33 A | 600 V | 50 µA | 5 µA | TO-202 No Tab | 1.35 A | TO-202-3 | 1.8 V | Sensitive Gate | 5 mA |
