25SH-B Series

Manufacturer: Adam Tech

Catalog

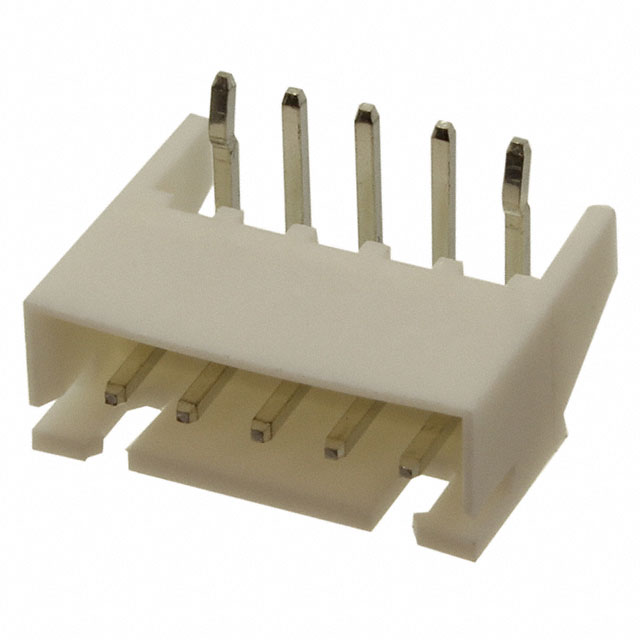

CONN HEADER R/A 5POS 2.5MM

Part	Contact Type	Number of Rows	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Style	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Termination	Shrouding	Number of Positions	Voltage Rating	Contact Material	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Current Rating (Amps)	Mounting Type	Insulation Height	Insulation Height
Adam Tech 25SH-B-05-TR	Male Pin	1	UL94 V-0	White	All	0.228 "	5.8 mm	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Square	2.5 mm	0.098 in	Header	Kinked Pin Solder	Shrouded - 4 Wall	5	250 VAC	Brass	Tin	0.134 "	3.4 mm	Friction Lock	3 A	Right Angle Through Hole

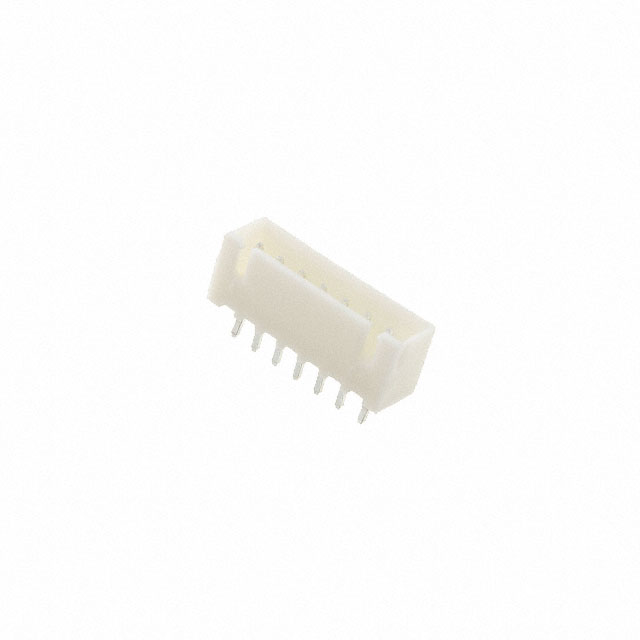

Adam Tech 25SH-B-07-TS	Male Pin	1	UL94 V-0	White	All			Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Square	2.5 mm	0.098 in	Header	Kinked Pin Solder	Shrouded - 4 Wall	7	250 VAC	Brass	Tin	0.134 "	3.4 mm	Friction Lock	3 A	Through Hole	0.276 in	7 mm

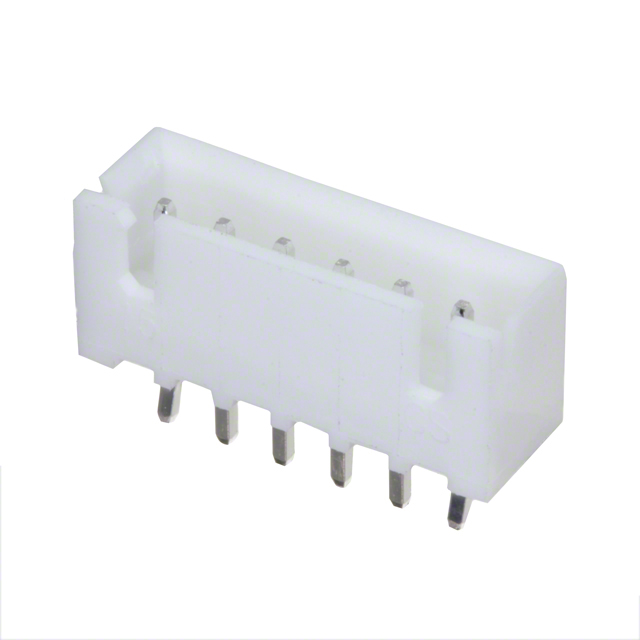

Adam Tech 25SH-B-06-TS	Male Pin	1	UL94 V-0	White	All			Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Square	2.5 mm	0.098 in	Header	Kinked Pin Solder	Shrouded - 4 Wall	6	250 VAC	Brass	Tin	0.134 "	3.4 mm	Friction Lock	3 A	Through Hole	0.276 in	7 mm

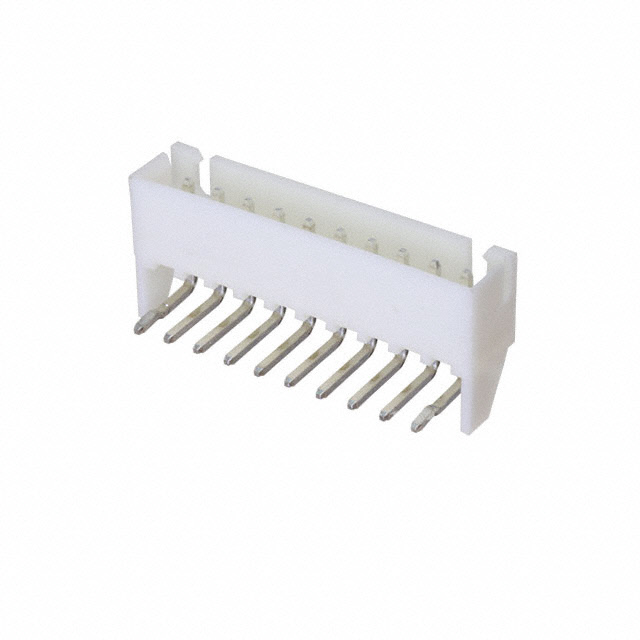

Adam Tech 25SH-B-10-TR	Male Pin	1	UL94 V-0	White	All	0.228 "	5.8 mm	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Square	2.5 mm	0.098 in	Header	Kinked Pin Solder	Shrouded - 4 Wall	10	250 VAC	Brass	Tin	0.134 "	3.4 mm	Friction Lock	3 A	Right Angle Through Hole

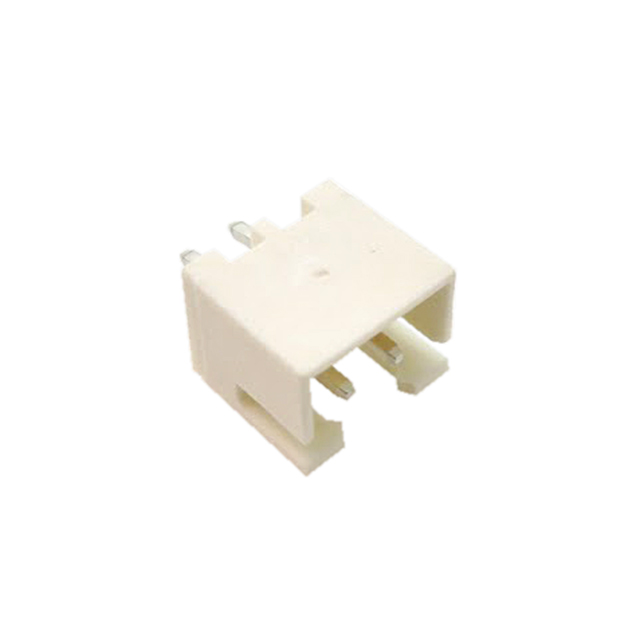

Adam Tech 25SH-B-02-TS	Male Pin	1	UL94 V-0	White	All			Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Square	2.5 mm	0.098 in	Header	Kinked Pin Solder	Shrouded - 4 Wall	2	250 VAC	Brass	Tin	0.134 "	3.4 mm	Friction Lock	3 A	Through Hole	0.276 in	7 mm

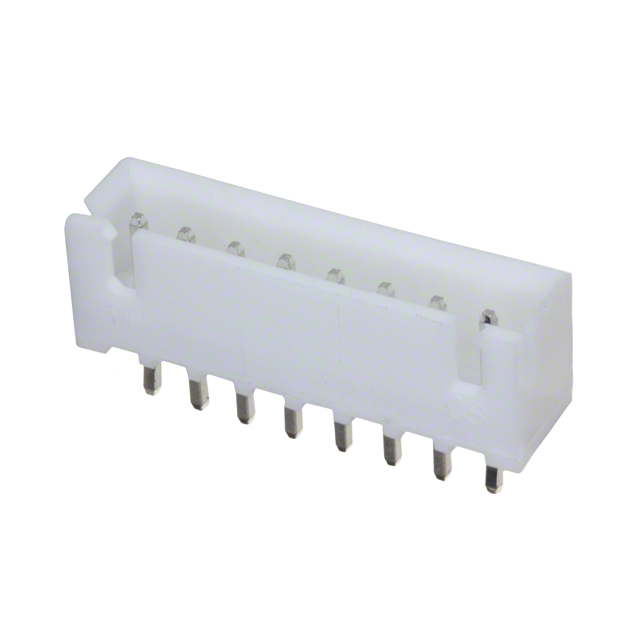

Adam Tech 25SH-B-08-TS	Male Pin	1	UL94 V-0	White	All			Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Square	2.5 mm	0.098 in	Header	Kinked Pin Solder	Shrouded - 4 Wall	8	250 VAC	Brass	Tin	0.134 "	3.4 mm	Friction Lock	3 A	Through Hole	0.276 in	7 mm

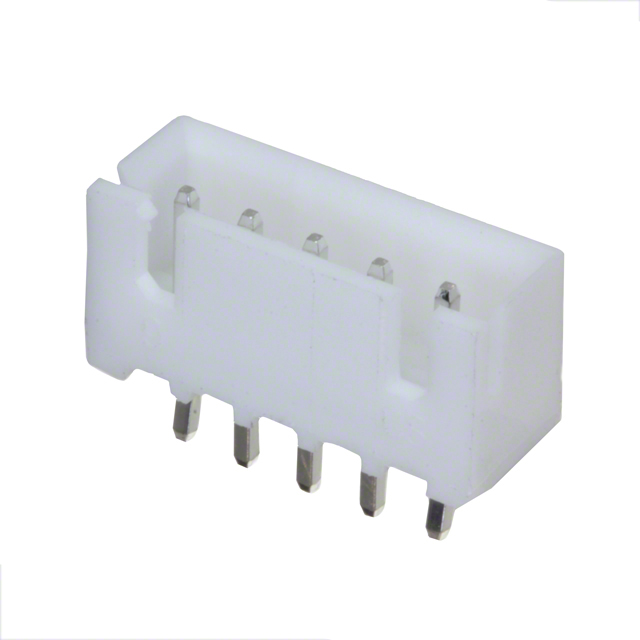

Adam Tech 25SH-B-05-TS	Male Pin	1	UL94 V-0	White	All			Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Square	2.5 mm	0.098 in	Header	Kinked Pin Solder	Shrouded - 4 Wall	5	250 VAC	Brass	Tin	0.134 "	3.4 mm	Friction Lock	3 A	Through Hole	0.276 in	7 mm

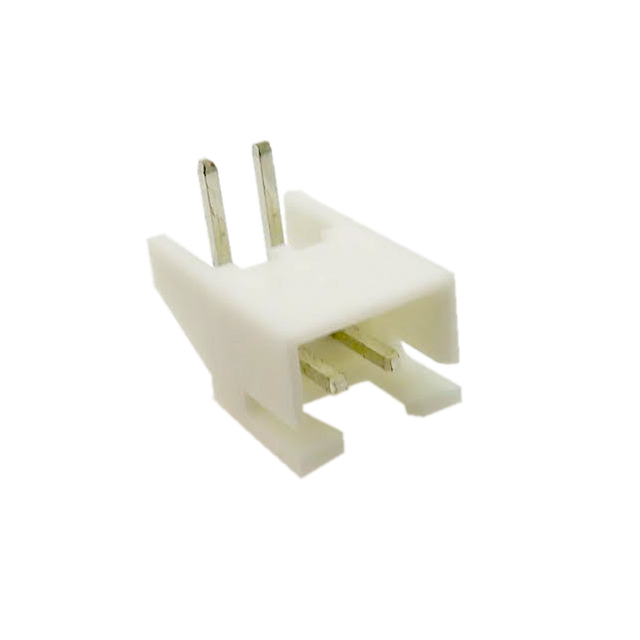

Adam Tech 25SH-B-02-TR	Male Pin	1	UL94 V-0	White	All	0.228 "	5.8 mm	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Square	2.5 mm	0.098 in	Header	Kinked Pin Solder	Shrouded - 4 Wall	2	250 VAC	Brass	Tin	0.134 "	3.4 mm	Friction Lock	3 A	Right Angle Through Hole

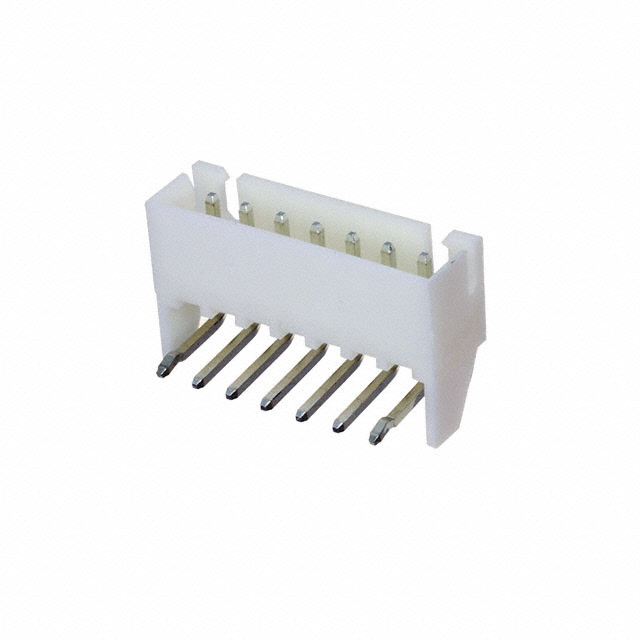

Adam Tech 25SH-B-07-TR	Male Pin	1	UL94 V-0	White	All	0.228 "	5.8 mm	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Square	2.5 mm	0.098 in	Header	Kinked Pin Solder	Shrouded - 4 Wall	7	250 VAC	Brass	Tin	0.134 "	3.4 mm	Friction Lock	3 A	Right Angle Through Hole
