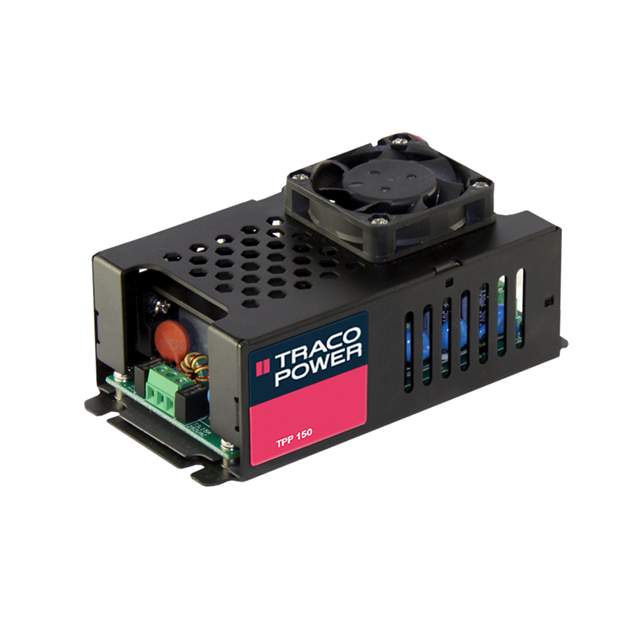

TPP 150 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 28V 3.93(CONVECTION)A/5.36(FORCED AIR)A 150W 10-PIN
| Part | Minimum Load Required | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Approval Agency | Voltage - Output 1 | Features | Number of Outputs | Type | Efficiency | Current - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Voltage - Isolation | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | -25 °C | 80 ¯C | Chassis Mount | CB CE cURus | 28 V | Adjustable Output PFC Universal Input | 1 | Open Frame | 92 % | 5.36 A | 101.6 mm | 50.8 mm | 4 " | 1.16 in | 29.5 mm | 2 in | 85 VAC 120 VDC | 264 VAC 370 VDC | 150 W | 4000 V | ITE (Commercial) Medical | |
 Traco Power | -25 °C | 80 ¯C | Chassis Mount | CB CE cURus | 28 V | Adjustable Output PFC Universal Input | 1 | Enclosed | 92 % | 5.36 A | 116.8 mm | 62 mm | 4.6 " | 1.94 " | 49.3 mm | 2.44 " | 85 VAC 120 VDC | 264 VAC 370 VDC | 150 W | 4000 V | ITE (Commercial) Medical | |
Traco Power | -25 °C | 80 ¯C | Chassis Mount | CB CE cURus | 24 V | Adjustable Output PFC Universal Input | 1 | Enclosed | 92 % | 6.25 A | 116.8 mm | 62 mm | 4.6 " | 1.94 " | 49.3 mm | 2.44 " | 85 VAC 120 VDC | 264 VAC 370 VDC | 150 W | 4000 V | ITE (Commercial) Medical |
