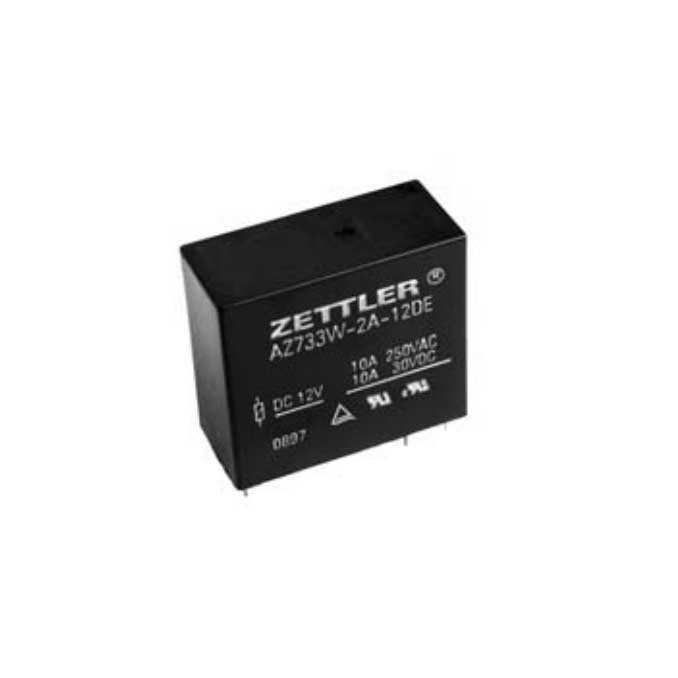

AZ733W-2A Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE DPST 12A 9V
| Part | Coil Resistance | Contact Rating (Current) | Must Operate Voltage | Coil Current | Contact Material | Release Time | Relay Type | Load - Max Switching | Operate Time | Coil Insulation | Switching Voltage [Max] | Coil Voltage | Seal Rating | Mounting Type | Must Release Voltage | Approval Agency | Termination Style | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 101 Ohms | 12 A | 6.8 VDC | 89.1 mA | Silver Cadmium Oxide (AgCdO) | 5 ms | General Purpose | 360 W 3324 VA | 15 ms | Class F | 250 VDC 400 VAC | 9 VDC | Sealed - Fully | Through Hole | 0.9 VDC | CUR TUV UL | PC Pin | DPST-NO (2 Form A) | 85 °C | -40 C | Non Latching |
 American Zettler | 101 Ohms | 12 A | 6.8 VDC | 89.1 mA | Silver Tin Oxide (AgSnO) | 4 ms | General Purpose | 360 W 3324 VA | 10 ms | Class B | 250 VDC 277 VAC | 9 VDC | Sealed - Fully | Through Hole | 0.9 VDC | CUR TUV UL | PC Pin | DPST-NO (2 Form A) | 85 °C | -40 C | Non Latching |
 American Zettler | 12 A | Silver Cadmium Oxide (AgCdO) | 5 ms | General Purpose | 360 W 3324 VA | 15 ms | Class F | 250 VDC 400 VAC | 110 VDC | Sealed - Fully | Through Hole | 11 VDC | CUR TUV UL | PC Pin | DPST-NO (2 Form A) | 85 °C | -40 C | Non Latching |
