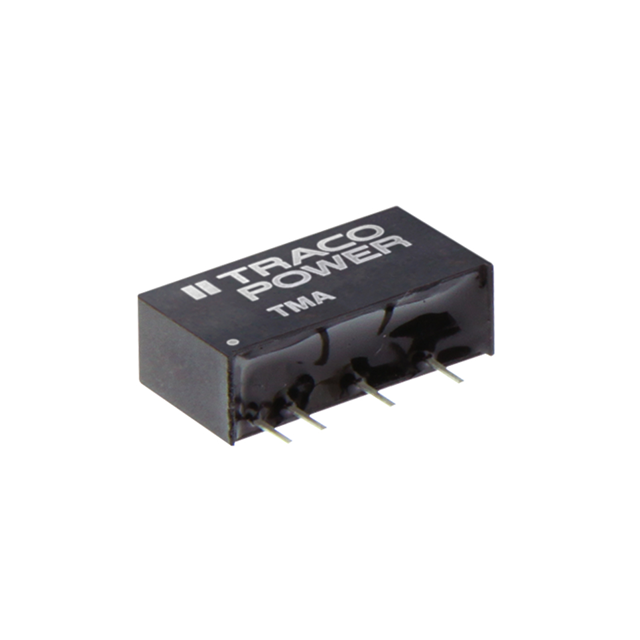

TMA 0512 Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE PRODUCT TYPE: DC/DC; PACKAGE STYLE: SIP; OUTPUT POWER (W): 1; INPUT VOLTAGE: 5 VDC +/-10%; OUTPUT 1 (VDC): 12; OUTPUT 2 (VDC): -12; OUTPUT 3 (VDC): N/A
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Efficiency | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Type | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Package / Case | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Features | Current - Output (Max) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | -40 °C | 85 °C | 1000 V | 78 % | ITE (Commercial) | 0.4 " | 6.1 mm | 0.24 " | 10.2 mm | 0.77 in | 19.5 mm | Isolated Module | 5.5 V | 4.5 V | 6-SIP Module 5 Leads | 2 | 12 V | -12 V | SCP | 42 mA | Through Hole |
