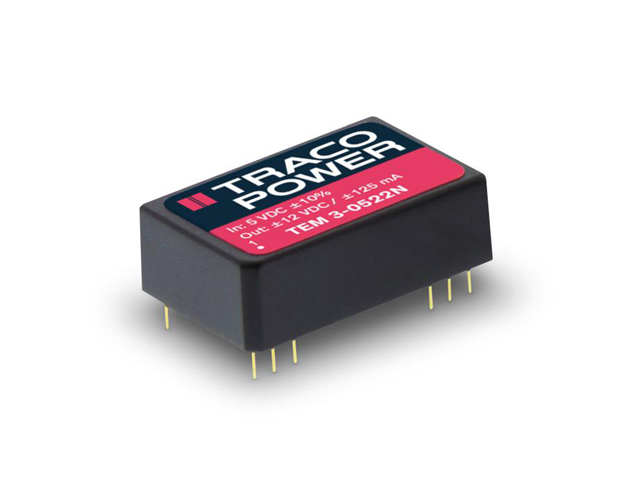

TEM 3 Series

Catalog

DC DC CONVERTER +/-12V 3W

Part	Power (Watts)	Voltage - Output 1	Mounting Type	Package / Case	Package / Case	Voltage - Input (Max) [Max]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Voltage - Isolation	Applications	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Features	Voltage - Output 2	Type	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
Traco Power TEM 3-2422N	3 W	12 V	Through Hole	12 Leads	24-DIP Module	26.4 V	81 %	-40 °C	85 °C	125 mA	1.5 kV	ITE (Commercial)	2	20 mm	32 mm	0.39 "	10 mm	0.79 in	1.26 in	21.6 V	SCP	-12 V	Isolated Module
Traco Power TEM 3-2413N	3 W	15 V	Through Hole	12 Leads	24-DIP Module	26.4 V	80 %	-40 °C	85 °C		1.5 kV	ITE (Commercial)	1	20 mm	32 mm	0.39 "	10 mm	0.79 in	1.26 in	21.6 V	SCP		Isolated Module	200 mA
Traco Power TEM 3-1212N	3 W	12 V	Through Hole	12 Leads	24-DIP Module	13.2 V	80 %	-40 °C	85 °C		1.5 kV	ITE (Commercial)	1	20 mm	32 mm	0.39 "	10 mm	0.79 in	1.26 in	10.8 V	SCP		Isolated Module	250 mA
Traco Power TEM 3-1213N	3 W	15 V	Through Hole	12 Leads	24-DIP Module	13.2 V	80 %	-40 °C	85 °C		1.5 kV	ITE (Commercial)	1	20 mm	32 mm	0.39 "	10 mm	0.79 in	1.26 in	10.8 V	SCP		Isolated Module	200 mA
Traco Power TEM 3-1222N	3 W	12 V	Through Hole	12 Leads	24-DIP Module	13.2 V	81 %	-40 °C	85 °C	125 mA	1.5 kV	ITE (Commercial)	2	20 mm	32 mm	0.39 "	10 mm	0.79 in	1.26 in	10.8 V	SCP	-12 V	Isolated Module
Traco Power TEM 3-0523N	3 W	15 V	Through Hole	12 Leads	24-DIP Module	5.5 V	78 %	-40 °C	85 °C		1.5 kV	ITE (Commercial)	2	20 mm	32 mm	0.39 "	10 mm	0.79 in	1.26 in	4.5 V	SCP	-15 V	Isolated Module		100 mA	100 mA
