MSL1064 Series

Catalog

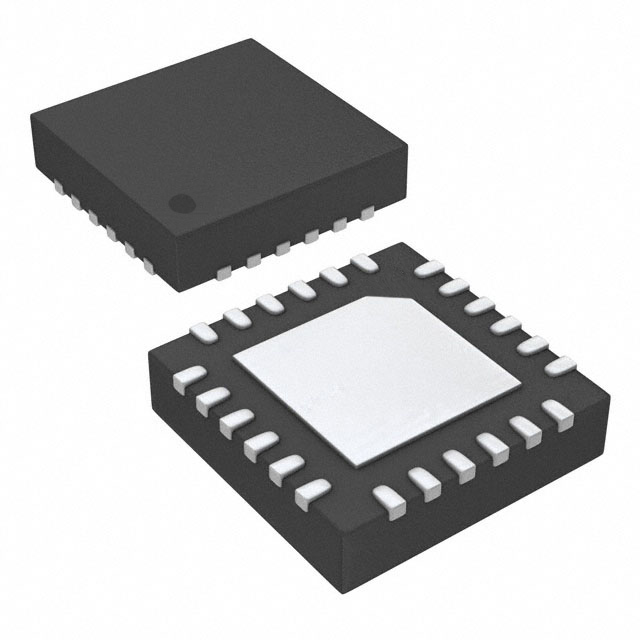

IC LED DRV RGLTR PWM 30MA 24TQFN

Part	Operating Temperature (Max)	Operating Temperature (Min)	Internal Switch(s)	Current - Output / Channel	Mounting Type	Type	Voltage - Output	Package Name	Package Width	Package Length	Voltage - Supply (Max)	Package / Case	Applications	Voltage - Supply (Min)	Topology	Frequency	Dimming	Number of Outputs
Microchip Technology MSL1064AW-R	85 °C	-40 °C	Yes	30 mA	Surface Mount	DC DC Regulator	48 V	24-TQFN	5 mm	5 mm	36 V	24-WQFN Exposed Pad	Backlight	4.75 V	Step-Up (Boost)	1.1 MHz	Analog PWM	6
Microchip Technology MSL1064-TC	85 °C	-40 °C	Yes	30 mA	Surface Mount	DC DC Regulator	48 V	24-TQFN	5 mm	5 mm	36 V	24-WQFN Exposed Pad	Backlight	4.75 V	Step-Up (Boost)	1.1 MHz	Analog PWM	6
Microchip Technology MSL1064AW	85 °C	-40 °C	Yes	30 mA	Surface Mount	DC DC Regulator	48 V	24-TQFN	5 mm	5 mm	36 V	24-WQFN Exposed Pad	Backlight	4.75 V	Step-Up (Boost)	1.1 MHz	Analog PWM	6
