CL2 Series

Simple 90V, 20mA, Temperature Compensated, Constant-Current LED Driver IC

Catalog

Simple 90V, 20mA, Temperature Compensated, Constant-Current LED Driver IC

Part	Current - Output / Channel [custom]	Mounting Type	Package / Case	Voltage - Supply (Max) [Max]	Number of Outputs	Topology	Voltage - Supply (Min) [Min]	Supplier Device Package	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Type	Applications
Microchip Technology CL2N8-G	20 mA	Surface Mount	TO-243AA	90 V	1	Constant Current	5 V	TO-243AA (SOT-89)	90 V	-40 °C	125 ¯C	Linear	Signage
Microchip Technology CL2N3-G	20 mA	Through Hole	TO-226-3 TO-92-3	90 V	1	Constant Current	5 V	TO-92-3	90 V	-40 °C	125 ¯C	Linear	Signage
Microchip Technology CL2K4-G	20 mA	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	90 V	1	Constant Current	5 V	TO-252 (DPAK)	90 V	-40 °C	125 ¯C	Linear	Signage

Catalog

Simple 90V, 20mA, Temperature Compensated, Constant-Current LED Driver IC

Key Features

• + 5.0 to 90V operating range (VA-B)

• + 20mA ±10% at 5.0 - 90V

• + 0.01%/°C typical temperature coefficient

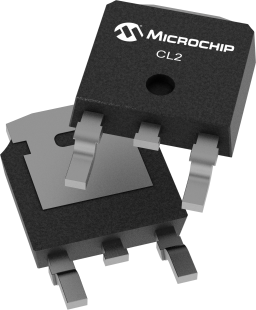

• + Available in TO-243AA (SOT-89), TO-252 (D-PAK), & TO-92 packages

• + Can be paralleled for higher current

Description

CL2 is a high voltage, temperature compensated, constant current source. The device is trimmed to provide a constant current of 20mA±10% at an input voltage of 5.0 - 90V. The device can be used as a two terminal constant current source or constant current sink. A typical application for the CL2 is to drive LEDs with a constant current of 20mA. Multiple CL2s can also be used in parallel to provide higher currents such as 40mA, 60mA or 80mA. The device is available in TO-243AA (SOT-89), TO-252 (D-PAK), and TO-92 packages.
