TVN 5 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 4.5-12VIN 15V 333MA 5W ISO DIP-24

Part	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Applications	Efficiency	Voltage - Isolation	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Type	Mounting Type	Power (Watts)	Package / Case	Voltage - Output 2	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power TVN 5-0913WI	15 V	333 mA	4.5 V	24-DIP Module 10 Leads	1	ITE (Commercial)	87 %	1.6 kV	OCP OVP Remote On/Off SCP	32 mm	20 mm	10.2 mm	1.26 in	0.79 in	0.4 "	90 °C	-40 °C	12 V	Isolated Module	Through Hole	5 W
Traco Power TVN 5-4823WI	15 V	166 mA	18 V	24-DIP Module	2	ITE (Commercial)	86 %	1.6 kV	OCP OVP Remote On/Off SCP	32 mm	20 mm	10.2 mm	1.26 in	0.79 in	0.4 "	90 °C	-40 °C	75 V	Isolated Module	Through Hole	5 W	12 Leads	-15 V
Traco Power TVN 5-0925WI	24 V		4.5 V	24-DIP Module	2	ITE (Commercial)	87 %	1.6 kV	OCP OVP Remote On/Off SCP	32 mm	20 mm	10.2 mm	1.26 in	0.79 in	0.4 "	90 °C	-40 °C	12 V	Isolated Module	Through Hole	5 W	12 Leads	-24 V	104 mA
Traco Power TVN 5-0915WI	24 V	208 mA	4.5 V	24-DIP Module 10 Leads	1	ITE (Commercial)	88 %	1.6 kV	OCP OVP Remote On/Off SCP	32 mm	20 mm	10.2 mm	1.26 in	0.79 in	0.4 "	90 °C	-40 °C	12 V	Isolated Module	Through Hole	5 W
Traco Power TVN 5-0921WI	5 V		4.5 V	24-DIP Module	2	ITE (Commercial)	84 %	1.6 kV	OCP OVP Remote On/Off SCP	32 mm	20 mm	10.2 mm	1.26 in	0.79 in	0.4 "	90 °C	-40 °C	12 V	Isolated Module	Through Hole	5 W	12 Leads	-5 V	500 mA

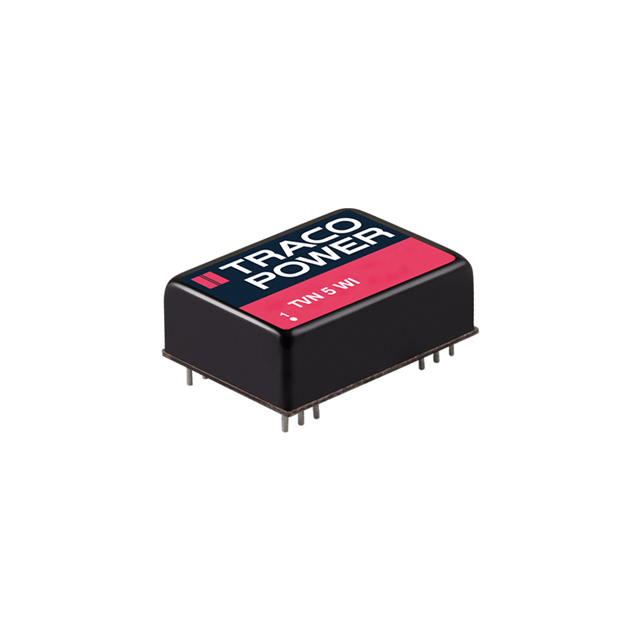

Traco Power TVN 5-2423WI	15 V	166 mA	9 V	24-DIP Module	2	ITE (Commercial)	86 %	1.6 kV	OCP OVP Remote On/Off SCP	32 mm	20 mm	10.2 mm	1.26 in	0.79 in	0.4 "	90 °C	-40 °C	36 V	Isolated Module	Through Hole	5 W	12 Leads	-15 V
Traco Power TVN 5-4822WI	12 V	208 mA	18 V	24-DIP Module	2	ITE (Commercial)	85 %	1.6 kV	OCP OVP Remote On/Off SCP	32 mm	20 mm	10.2 mm	1.26 in	0.79 in	0.4 "	90 °C	-40 °C	75 V	Isolated Module	Through Hole	5 W	12 Leads	-12 V		208 mA
Traco Power TVN 5-4815WI	24 V	208 mA	18 V	24-DIP Module 10 Leads	1	ITE (Commercial)	88 %	1.6 kV	OCP OVP Remote On/Off SCP	32 mm	20 mm	10.2 mm	1.26 in	0.79 in	0.4 "	90 °C	-40 °C	75 V	Isolated Module	Through Hole	5 W
