90325 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 4POS 1.27MM

Part	Applications	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Insulation Material	Connector Type	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Style	Contact Length - Post	Contact Length - Post	Shrouding	Fastening Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Number of Positions	Number of Positions Loaded	Insulation Color	Termination	Contact Finish - Mating	Mounting Type	Number of Rows	Current Rating (Amps)	Contact Finish - Post

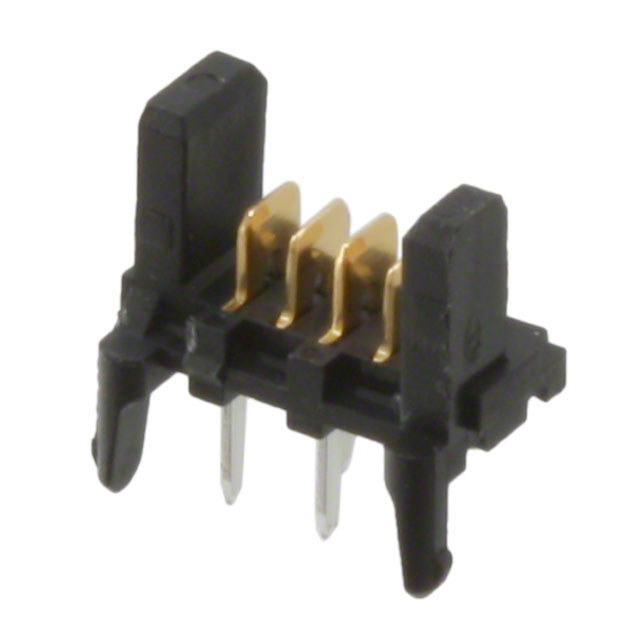

Molex 0903257004	Automotive General Purpose Industrial Medical	Rectangular	1.27 mm	0.05 in	0.252 "	6.4 mm	Polybutylene Terephthalate (PBT) Glass Filled	Header	UL94 V-0	Male Blade	-40 C	105 ░C	250 V	Board to Cable/Wire	0.13 "	3.3 mm	Shrouded - 2 Wall	Push-Pull	Brass	24 µin	0.61 µm	Board Lock	4	All	Black	Solder	Palladium-Nickel	Through Hole	1	1.2 A

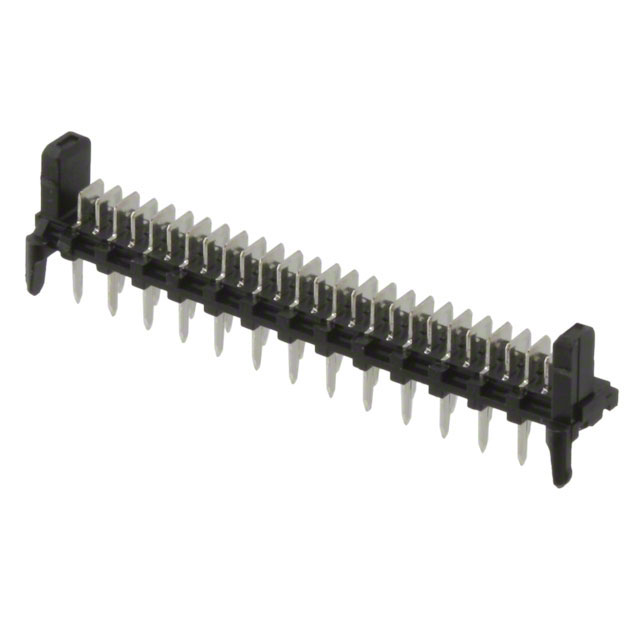

Molex 0903259026	Automotive General Purpose Industrial Medical	Rectangular	1.27 mm	0.05 in	0.252 "	6.4 mm	Polybutylene Terephthalate (PBT) Glass Filled	Header	UL94 V-0	Male Blade	-40 C	105 ░C	250 V	Board to Cable/Wire	0.13 "	3.3 mm	Shrouded - 2 Wall	Push-Pull	Brass	118.1 µin	3 µm	Board Lock	26	All	Black	Solder		Through Hole	1	1.2 A	Tin

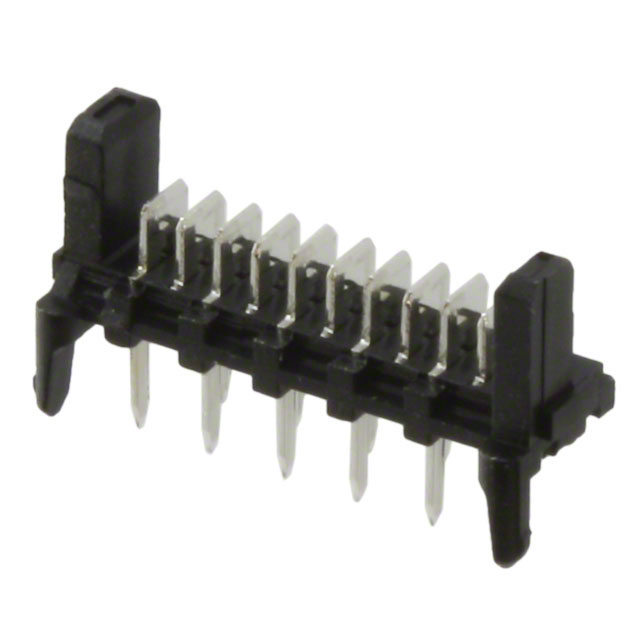

Molex 0903259010	Automotive General Purpose Industrial Medical	Rectangular	1.27 mm	0.05 in	0.252 "	6.4 mm	Polybutylene Terephthalate (PBT) Glass Filled	Header	UL94 V-0	Male Blade	-40 C	105 ░C	250 V	Board to Cable/Wire	0.13 "	3.3 mm	Shrouded - 2 Wall	Push-Pull	Brass	118.1 µin	3 µm	Board Lock	10	All	Black	Solder		Through Hole	1	1.2 A	Tin

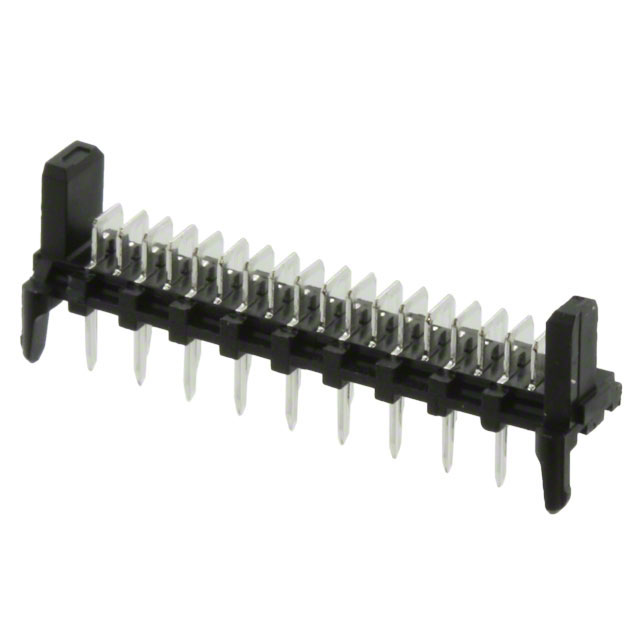

Molex 0903259018	Automotive General Purpose Industrial Medical	Rectangular	1.27 mm	0.05 in	0.252 "	6.4 mm	Polybutylene Terephthalate (PBT) Glass Filled	Header	UL94 V-0	Male Blade	-40 C	105 ░C	250 V	Board to Cable/Wire	0.13 "	3.3 mm	Shrouded - 2 Wall	Push-Pull	Brass	118.1 µin	3 µm	Board Lock	18	All	Black	Solder		Through Hole	1	1.2 A	Tin

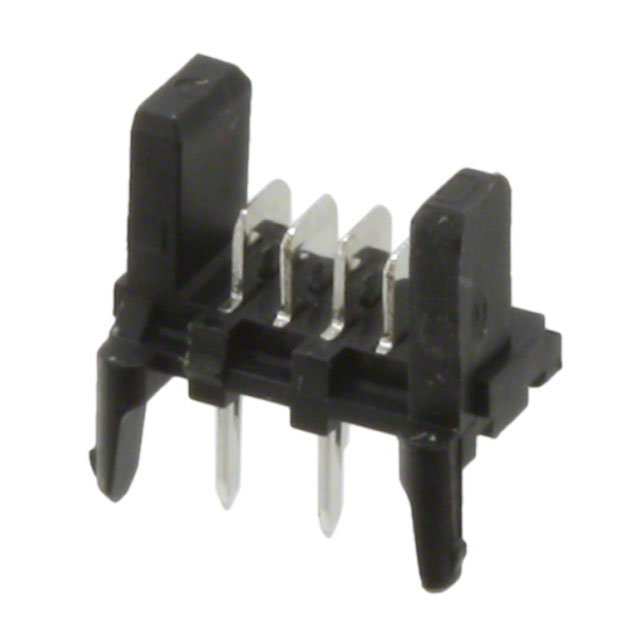

Molex 0903259004	Automotive General Purpose Industrial Medical	Rectangular	1.27 mm	0.05 in	0.252 "	6.4 mm	Polybutylene Terephthalate (PBT) Glass Filled	Header	UL94 V-0	Male Blade	-40 C	105 ░C	250 V	Board to Cable/Wire	0.13 "	3.3 mm	Shrouded - 2 Wall	Push-Pull	Brass	118.1 µin	3 µm	Board Lock	4	All	Black	Solder		Through Hole	1	1.2 A	Tin
Molex 903257018

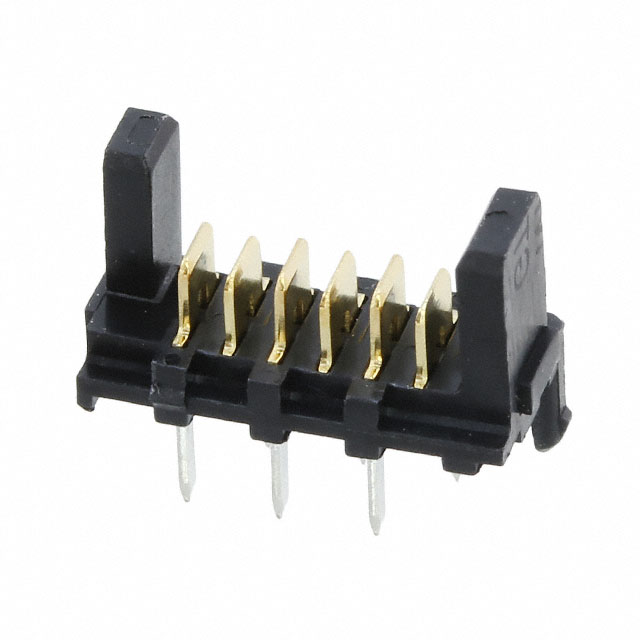

Molex 0903253006	Automotive General Purpose Industrial Medical	Rectangular	1.27 mm	0.05 in	0.252 "	6.4 mm	Polybutylene Terephthalate (PBT) Glass Filled	Header	UL94 V-0	Male Blade	-40 C	105 ░C	250 V	Board to Cable/Wire	0.13 "	3.3 mm	Shrouded - 2 Wall	Push-Pull	Brass	24 µin	0.61 µm	Board Lock	6	All	Black	Solder	Palladium-Nickel	Through Hole	1	1.2 A

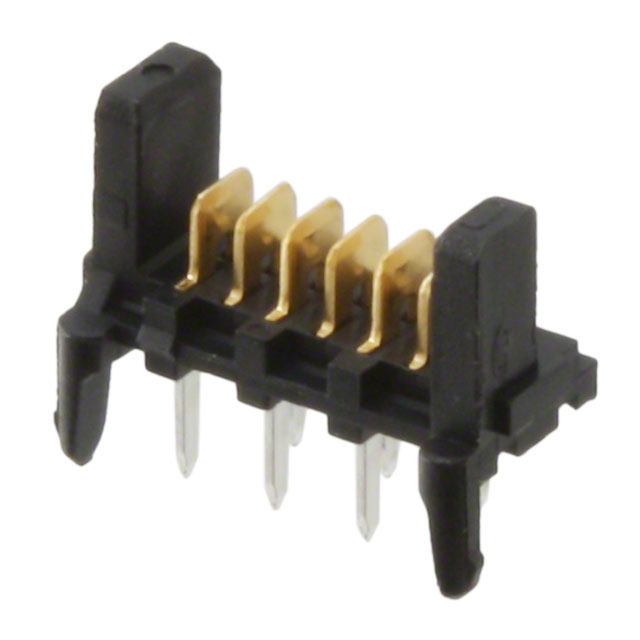

Molex 0903257006	Automotive General Purpose Industrial Medical	Rectangular	1.27 mm	0.05 in	0.252 "	6.4 mm	Polybutylene Terephthalate (PBT) Glass Filled	Header	UL94 V-0	Male Blade	-40 C	105 ░C	250 V	Board to Cable/Wire	0.13 "	3.3 mm	Shrouded - 2 Wall	Push-Pull	Brass	24 µin	0.61 µm	Board Lock	6	All	Black	Solder	Palladium-Nickel	Through Hole	1	1.2 A

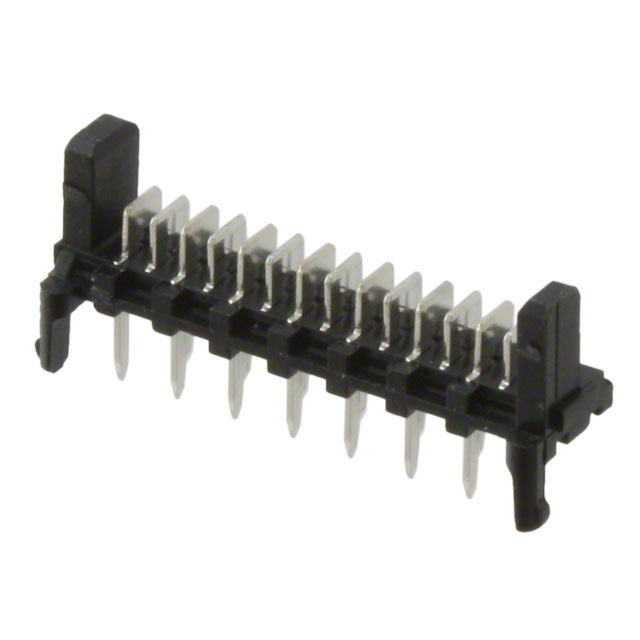

Molex 0903259014	Automotive General Purpose Industrial Medical	Rectangular	1.27 mm	0.05 in	0.252 "	6.4 mm	Polybutylene Terephthalate (PBT) Glass Filled	Header	UL94 V-0	Male Blade	-40 C	105 ░C	250 V	Board to Cable/Wire	0.13 "	3.3 mm	Shrouded - 2 Wall	Push-Pull	Brass	118.1 µin	3 µm	Board Lock	14	All	Black	Solder		Through Hole	1	1.2 A	Tin
Molex 903257012
