T405 Series

4A logic level Triacs

Catalog

4A logic level Triacs

Part	Current - On State (It (RMS)) (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Gate Trigger (Vgt) (Max)	Mounting Type	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Configuration	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Supplier Device Package	Supplier Device Package	Triac Type

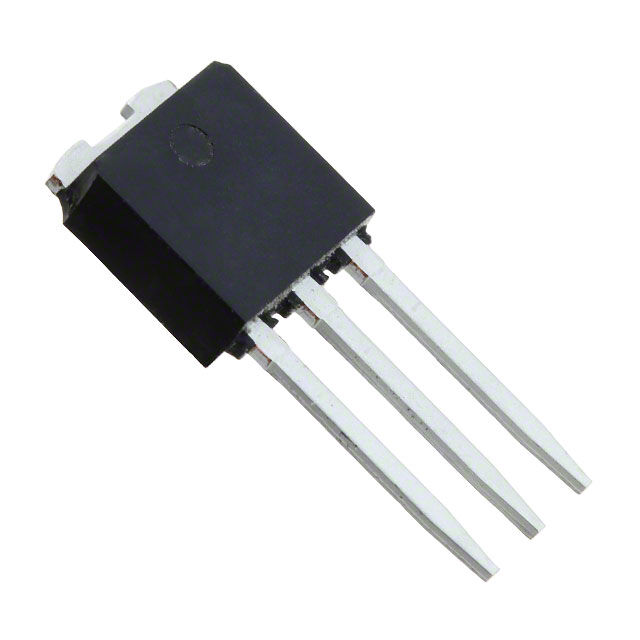

STMicroelectronics T405-800H	4 A	IPAK TO-251-3 Short Leads TO-251AA	-40 C	125 °C	1.3 V	Through Hole	10 mA	5 mA	Single	800 V	30 A 31 A	IPAK	TO-251	Logic - Sensitive Gate
STMicroelectronics T405Q-600H	4 A	IPAK TO-251-3 Short Leads TO-251AA	-40 C	125 °C	1.3 V	Through Hole	10 mA	5 mA	Single	600 V	35 A 38 A		IPAK	Logic - Sensitive Gate
STMicroelectronics T405-600B	4 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	-40 C	125 °C	1.3 V	Surface Mount	10 mA	5 mA	Single	600 V	30 A 31 A		DPAK	Logic - Sensitive Gate
STMicroelectronics T405-600H	4 A	IPAK TO-251-3 Short Leads TO-251AA	-40 C	125 °C	1.3 V	Through Hole	10 mA	5 mA	Single	600 V	30 A 31 A	IPAK	TO-251	Logic - Sensitive Gate
STMicroelectronics T405Q-600B-TR	4 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	-40 C	125 °C	1.3 V	Surface Mount	10 mA	5 mA	Single	600 V	35 A 38 A		DPAK	Logic - Sensitive Gate
STMicroelectronics T405-700B-TR	4 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	-40 C	125 °C	1.3 V	Surface Mount	10 mA	5 mA	Single	700 V	30 A 31 A		DPAK	Logic - Sensitive Gate
STMicroelectronics T405-600T	4 A	TO-220-3	-40 C	125 °C	1.3 V	Through Hole	10 mA	5 mA	Single	600 V	30 A 31 A		TO-220	Logic - Sensitive Gate
STMicroelectronics T405-600B-TR	4 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	-40 C	125 °C	1.3 V	Surface Mount	10 mA	5 mA	Single	600 V	30 A 31 A		DPAK	Logic - Sensitive Gate
STMicroelectronics T405-800B-TR	4 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	-40 C	125 °C	1.3 V	Surface Mount	10 mA	5 mA	Single	800 V	30 A 31 A		DPAK	Logic - Sensitive Gate

Catalog

4A logic level Triacs

Description

Based on ST’s Snubberless / logic level technology providing high commutation performances, the T4 series is suitable for use on AC inductive loads. They are recommended for applications using universal motors, electro valves, kitchen aid equipments, power tools, and dishwashers.
