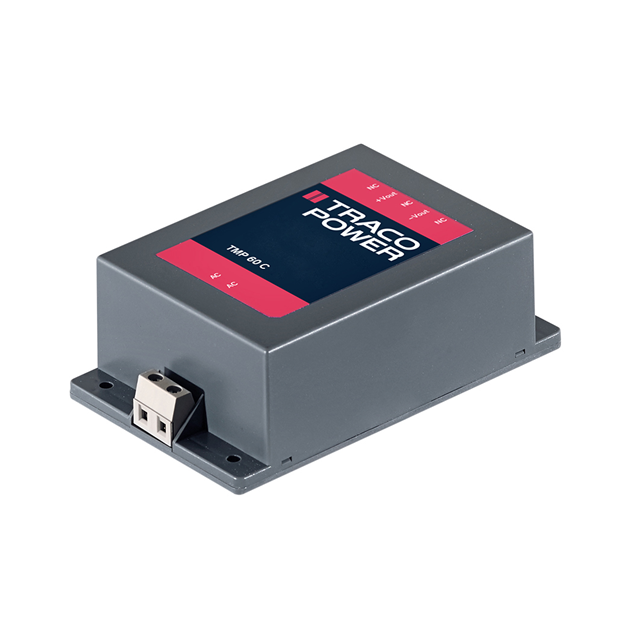

TMP 60148 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 48V 60W
| Part | Minimum Load Required | Type | Power (Watts) | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Features | Efficiency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs | Current - Output 1 | Approval Agency | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Enclosed | 60 W | Industrial ITE (Commercial) | 70 °C | -25 °C | Adjustable Output Universal Input | 84 % | 112 mm | 4.41 " | 2.67 in | 38.1 mm | 67.8 mm | 1.5 in | 1 | 1.25 A | CB CE cULus cURus | Chassis Mount | 85 VAC 120 VDC | 264 VAC 370 VDC | 3000 V | 48 V |
