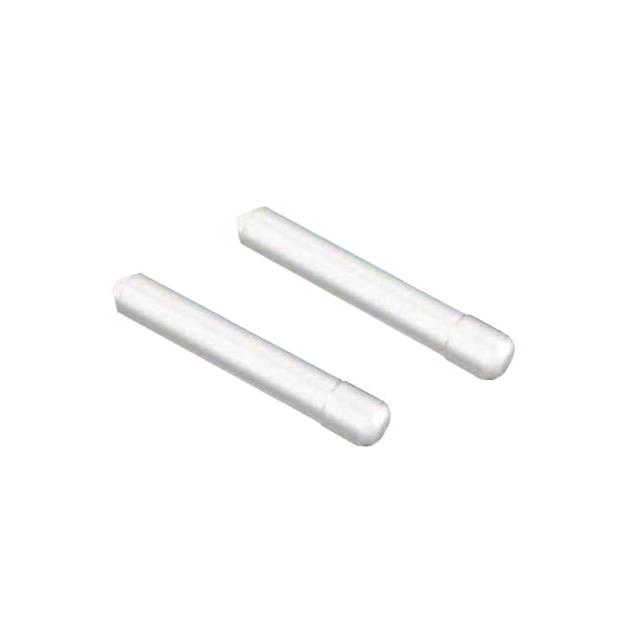

IT-PA-2P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN INTERPOSER WITHOUT HSG
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Mounting Type | Contact Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Voltage Rating | Contact Finish - Mating | Insulation Material | Number of Positions | Material Flammability Rating | Overall Contact Length | Overall Contact Length | Contact Shape | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Termination | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 30 µin | 0.76 µm | 1 | 0.425 in | 10.8 mm | All | Stacking | Male Pin | Interposer | -55 C | 85 °C | 60 A | 300 VAC | Gold | Liquid Crystal Polymer (LCP) | 2 | UL94 V-0 | 18 mm | 0.709 in | Circular | Copper Alloy | 0.76 Ám | 30 Áin | Gold | Solder | Red |
