10-Bit Single Output DAC with I2C™
Key Features
- 10-Bit Resolution
- I²C Interface
- Operating Voltage Range: 2.7V to 5.5V
- 1 LSB Integral Nonlinearity (INL) Specification
- Fast Settling Time: 16 µs (typ)
- Power-on/Brown-out Reset (POR/BOR) Protection
- DAC Voltage Reference Options:
- Device VDD
- External VREF (buffered or unbuffered)
- Internal Band gap (1.227V typical)
- Packages Types :

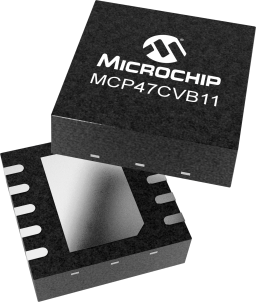

- 16-lead 3 x 3 QFN, 10-lead MSOP, 10-lead 3 x 3 DFN
- Temperature: -40°C to +125°C
Description
AI
MCP47CVB11 is a single channel, 10-bit, buffered voltage output Digital-to-Analog Converter (DAC) with volatile memory and an I²C Compatible Serial Interface. This device provides four different voltage reference options: device VDD, external VREF (Buffered or unbuffered) and internal bandgap. It offers 1 LSB Integral Non-Linearity (INL) with low power consumption and fast settling time of 16 µs. It is suitable for consumer and industrial applications, such as set point or offset trimming, sensor calibrations, motor control applications and more.
For different resolutions and number of output channels, please check out our other parts in the MCP47CVBxx family
