05586 Series

Catalog

CABLE 6COND 18AWG WHITE

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Wire Gauge	Length	Length	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Number of Conductors	Jacket Color	Voltage	Conductor Strand	Length [x]	Length [x]
Prysmian Group 05586.41.02	5.28 mm	0.208 "	Poly-Vinyl Chloride (PVC)	18 AWG	304.8 m	1000 ft	Copper Annealed Bare	-20 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.203 mm	0.008 in	Multi-Conductor	6	White	150 V	Solid

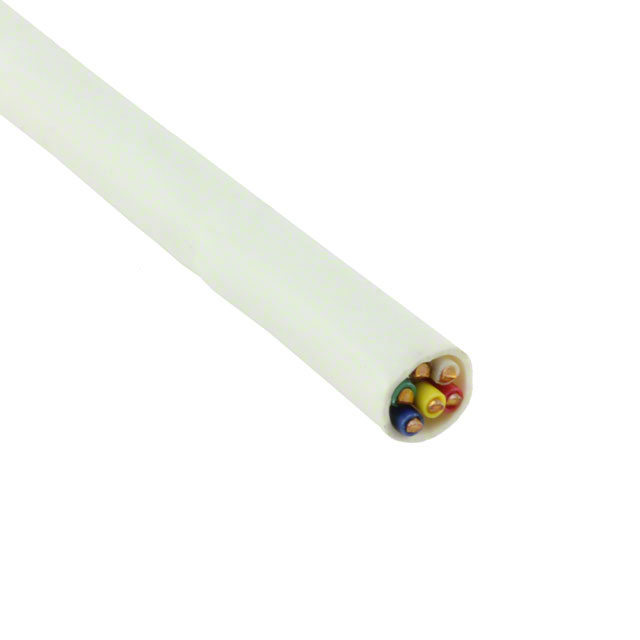

Prysmian Group 05586.R5.02	5.28 mm	0.208 "	Poly-Vinyl Chloride (PVC)	18 AWG	76.2 m	250 ft	Copper Bare	-20 ░C	60 °C		0.203 mm	0.008 in	Multi-Conductor	6	White	150 V	Solid	100 ft	30.5 m
Prysmian Group 05586.41.02	5.28 mm	0.208 "	Poly-Vinyl Chloride (PVC)	18 AWG	304.8 m	1000 ft	Copper Annealed Bare	-20 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.203 mm	0.008 in	Multi-Conductor	6	White	150 V	Solid

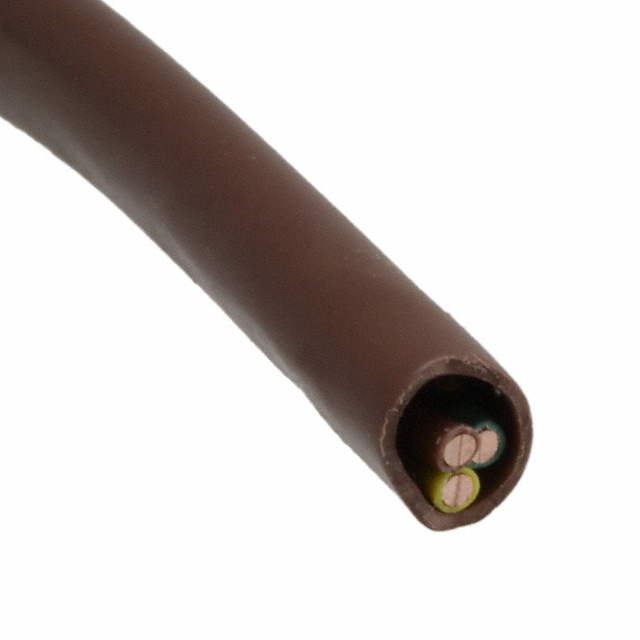

Prysmian Group 05586.15.08	5.28 mm	0.208 "	Poly-Vinyl Chloride (PVC)	18 AWG	15.24 m 76.2 m	50 ft 250 ft	Copper Bare	-20 ░C	60 °C		0.203 mm	0.008 in	Multi-Conductor	6	Brown	150 V	Solid	100 ft	30.5 m
Prysmian Group 05586.R5.02	5.28 mm	0.208 "	Poly-Vinyl Chloride (PVC)	18 AWG	15.24 m 76.2 m	50 ft 250 ft	Copper Bare	-20 ░C	60 °C		0.203 mm	0.008 in	Multi-Conductor	6	White	150 V	Solid	100 ft	30.5 m
Prysmian Group 05586.15.08	5.28 mm	0.208 "	Poly-Vinyl Chloride (PVC)	18 AWG	15.24 m 76.2 m	50 ft 250 ft	Copper Bare	-20 ░C	60 °C		0.203 mm	0.008 in	Multi-Conductor	6	Brown	150 V	Solid	100 ft	30.5 m
