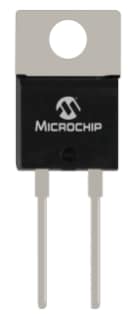

FRED-1200V Series

1200V Ultrafast Soft Recovery Rectifier Diode

Catalog

1200V Ultrafast Soft Recovery Rectifier Diode

Part	Technology	Speed	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Diode Configuration	Voltage - Forward (Vf) (Max) @ If [Max]	Mounting Type	Package / Case	Supplier Device Package	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)
Microchip Technology APT2X100D20J	Standard	200 mA 500 ns	100 A	175 ░C	-55 C	2 Independent	1.1 V	Chassis Mount	SOT-227-4 miniBLOC	ISOTOP®	60 ns	500 µA	200 V
Microchip Technology APT2X30DQ120J	Standard	200 mA 500 ns	30 A			2 Independent		Chassis Mount	SOT-227-4 miniBLOC	ISOTOP®	300 ns	100 µA	1.2 kV	3.1 V
Microchip Technology APT2X100D40J	Standard	200 mA 500 ns	100 A	175 ░C	-55 C	2 Independent		Chassis Mount	SOT-227-4 miniBLOC	ISOTOP®	50 ns	500 µA	400 V	1.5 V
Microchip Technology APT2X101D120J	Standard	200 mA 500 ns		175 ░C	-55 C	2 Independent		Chassis Mount	SOT-227-4 miniBLOC	ISOTOP®	420 ns	250 µA	1.2 kV	2.5 V
Microchip Technology APT15DQ120BG	Standard	200 mA 500 ns		175 ░C	-55 C			Through Hole	TO-247-3	TO-247 [B]	240 ns	100 µA	1.2 kV	3.3 V	15 A
Microchip Technology APT40DQ120SG	Standard	200 mA 500 ns		175 ░C	-55 C			Surface Mount	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	D3PAK	350 ns	100 µA	1.2 kV	3.4 V	40 A
Microchip Technology APT2X60DQ120J	Standard	200 mA 500 ns	60 A			2 Independent		Chassis Mount	SOT-227-4 miniBLOC	ISOTOP®	265 ns	100 µA	1.2 kV	3.1 V
Microchip Technology APT15D120KG	Standard	200 mA 500 ns		175 ░C	-55 C			Through Hole	TO-220-3	TO-220 [K]	260 ns	250 µA	1.2 kV	2.5 V	15 A
Microchip Technology APT15DQ120KG	Standard	200 mA 500 ns		175 ░C	-55 C			Through Hole	TO-220-2	TO-220-2	240 ns	100 µA	1.2 kV	3.3 V	15 A
Microchip Technology APT60DQ120SG	Standard	200 mA 500 ns		175 ░C	-55 C			Surface Mount	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	D3PAK	320 ns	100 µA		3.3 V	60 A

Catalog

1200V Ultrafast Soft Recovery Rectifier Diode

Key Features

• * Ultrafast recovery times

• * Soft recovery

• * Low leakage current

• * Avalanche energy rated

• * AEC-Q101 qualified (FRED DQ in TO-247, TO-220 and TO-264)

• * Higher switching frequency

• * Low switching losses

• * Low noise (EMI) switching

• * Easy to parallel

• * Improved system reliability

• * AC-DC/DC-DC converters

• * Inverters

• * Switch mode power supply

• * H/EV chargers

• * H/EV onboard chargers & powertrain

Description

Microchip offers four series of discrete diode products: the medium-speed medium Vf D series, the high-speed DQ series, the silicon Schottky S series and the SiC Schottky MSCxxxSDxxxx series. These series of diodes are designed to provide high-quality solutions to a wide range of high-voltage, high-power application requirements, ranging from fast recovery for continuous conduction mode power factor correction to low conduction loss for output rectification. FRED-1200V is a family of 1200V Ultrafast Soft Recovery Rectifier Diode available in a variety of current and package options.
