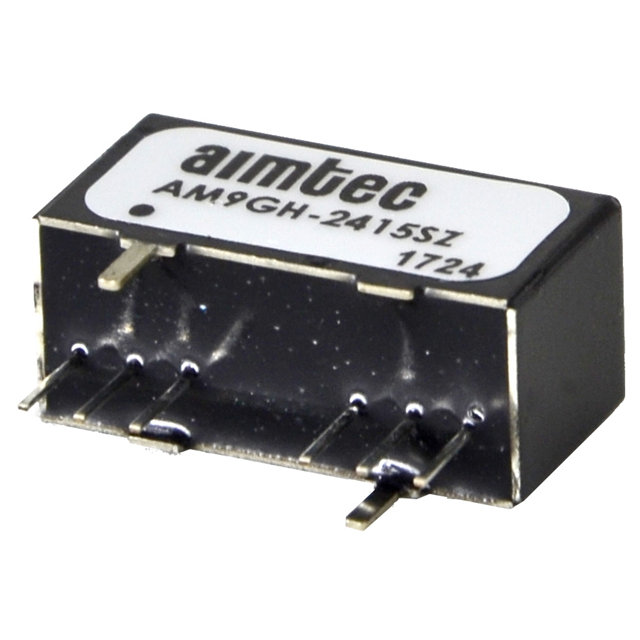

AM9G Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER +/-5V 9W
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Type | Package / Case | Applications | Number of Outputs | Voltage - Input (Min) [Min] | Features | Mounting Type | Power (Watts) | Current - Output (Max) | Current - Output (Max) | Voltage - Input (Max) [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Voltage - Output 2 | Voltage - Isolation | Voltage - Output 1 | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 86 % | 85 °C | -40 C | Isolated Module | 8-SIP Module | ITE (Commercial) | 2 | 18 V | Remote On/Off | Through Hole | 9 W | 800 mA | 800 mA | 36 V | 5 V | -5 V | -5 V | 1.6 kV | ||
aimtec | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 85 % | 85 °C | -40 C | Isolated Module | 8-SIP Module | ITE (Commercial) | 1 | 18 V | Remote On/Off | Through Hole | 9 W | 36 V | 1.6 kV | 5 V | 1.6 A | |||||
aimtec | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 85 % | 85 °C | -40 C | Isolated Module | 8-SIP Module | ITE (Commercial) | 1 | 9 V | Remote On/Off | Through Hole | 9 W | 18 V | 1.6 kV | 5 V | 1.6 A | |||||
aimtec | 0.86 " | 9.6 mm | 0.38 " | 0.44 in | 11.2 mm | 21.8 mm | 89 % | 85 °C | -40 C | Isolated Module | 8-SIP Module | ITE (Commercial) | 1 | 18 V | Remote On/Off | Through Hole | 9 W | 36 V | 1.6 kV | 12 V | 750 mA |
