ATWINC1500-IC Series

Global Regulatory Certified, RF Ready Module with PCB Antenna or uFL Connector

Catalog

Global Regulatory Certified, RF Ready Module with PCB Antenna or uFL Connector

Part	Frequency	Current - Transmitting	Sensitivity	RF Family/Standard	Mounting Type	Antenna Type	Current - Receiving	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Firmware Version	Data Rate	Modulation	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Memory Size [custom]	Memory Size [custom]	Power - Output	Protocol	Serial Interfaces	Type	Supplied Contents	For Use With/Related Products	Current - Transmitting [Min]	Current - Transmitting [Max]	Current - Receiving [Min]	Current - Receiving [Max]	Supplier Device Package	Memory Size [custom]	Data Rate (Max)	GPIO
Microchip Technology ATWINC1500-MR210PB1961	2.4 GHz	265 mA	-95 dBm	WiFi	Surface Mount	Integrated Trace	61 mA	85 °C	-40 °C	ATWINC1500	19.6.1	72.2 Mbps	16-QAM 64-QAM BPSK CCK DBPSK DQPSK OFDM QPSK	2.7 V	3.6 V	28-SMD Module	4 MB	128 kB	18.5 dBm	802.11b/g/n	I2C SPI UART

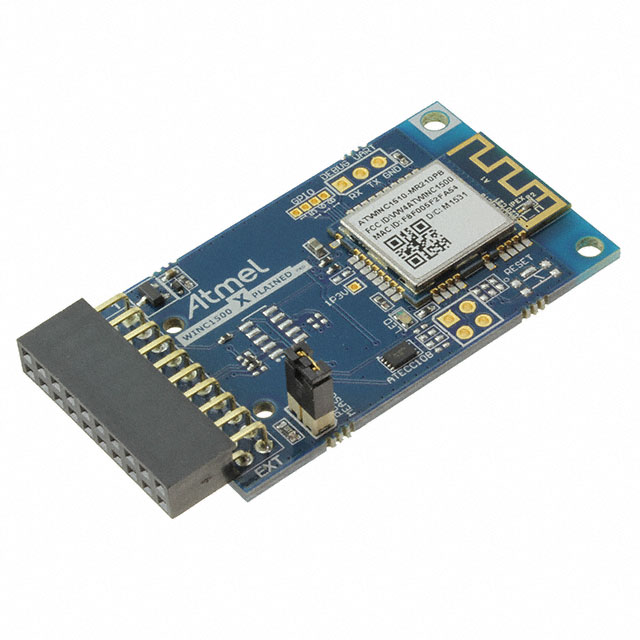

Microchip Technology ATWINC1500-XPRO	2.4 GHz																					Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)	Board(s)	ATWINC1500
Microchip Technology ATWINC1500-MR210PB1944	2.4 GHz	265 mA	-95 dBm	WiFi	Surface Mount	Integrated Trace	61 mA	85 °C	-40 °C		19.4.4	72.2 Mbps	16-QAM 64-QAM BPSK CCK DBPSK DQPSK OFDM QPSK	2.7 V	3.6 V	Module	4 MB	128 kB	18.5 dBm	802.11b/g/n	I2C SPI UART

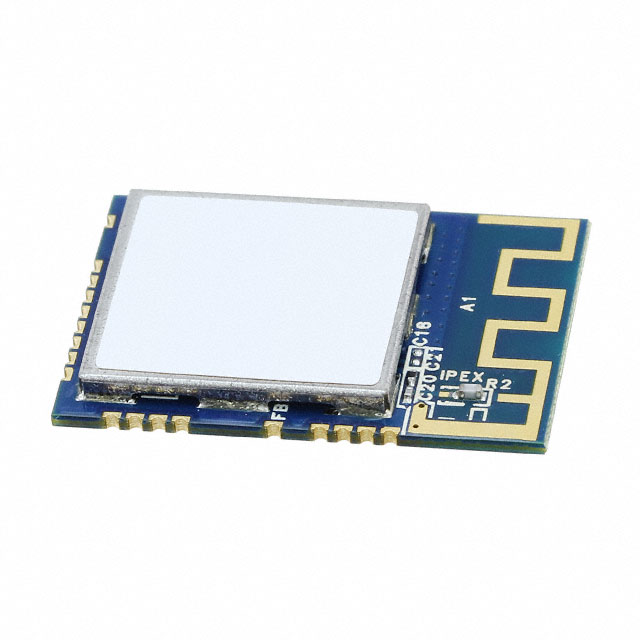

Microchip Technology ATWINC1500-MR210PB	2.4 GHz	265 mA	-95 dBm	WiFi	Surface Mount	Integrated Trace	61 mA	85 °C	-40 °C		19.4.4	72.2 Mbps	16-QAM 64-QAM BPSK CCK DBPSK DQPSK OFDM QPSK	2.7 V	3.6 V	Module	4 MB	128 kB	18.5 dBm	802.11b/g/n	I2C SPI UART

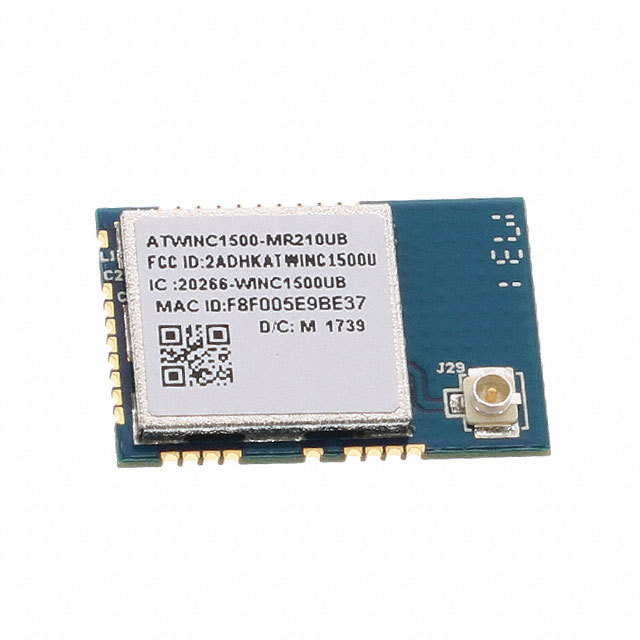

Microchip Technology ATWINC1500-MR210UB1140	2.4 GHz		-90 dBm	WiFi	Surface Mount	Integrated Trace + U.FL		85 °C	-40 °C	ATWINC1500	19.4.4	72.2 Mbps		3 V	4.2 V	Module			19 dBm	802.11b/g/n	SPI UART				22 mA	269 mA	22 mA	61 mA
Microchip Technology ATWINC1500B-MU-Y042	2.4 GHz		-98 dBm	WiFi	Surface Mount			85 °C	-40 °C				CCK DSSS OFDM	2.7 V	3.6 V	40-VFQFN Exposed Pad	4 MB	224 kB	20.5 dBm	802.11b/g/n	I2C SDIO SPI UART	TxRx + MCU			22 mA	294 mA	22 mA	58.5 mA	40-QFN (5x5)	128 kB	72.2 Mbps	9
Microchip Technology ATWINC1500B-MU-T	2.4 GHz		-98 dBm	WiFi	Surface Mount			85 °C	-40 °C				CCK DSSS OFDM	2.7 V	3.6 V	40-VFQFN Exposed Pad	4 MB	224 kB	20.5 dBm	802.11b/g/n	I2C SDIO SPI UART	TxRx + MCU			22 mA	294 mA	22 mA	58.5 mA	40-QFN (5x5)	128 kB	72.2 Mbps	9
Microchip Technology ATWINC1500A-MU-Y	2.4 GHz		-98 dBm	WiFi	Surface Mount			85 °C	-40 °C				CCK DSSS OFDM	2.7 V	3.6 V	40-VFQFN Exposed Pad	4 MB	192 kB	20.6 dBm	802.11b/g/n	I2C SDIO SPI UART	TxRx + MCU			29 mA	230 mA	29 mA	68 mA	40-QFN (5x5)	128 kB	72.2 Mbps	8
Microchip Technology ATWINC1500-MR210UB1954	2.4 GHz	265 mA	-95 dBm	WiFi	Surface Mount	Chip Integrated U.FL	61 mA	85 °C	-40 °C	ATWINC1500	19.5.4	72.2 Mbps	16-QAM 64-QAM BPSK CCK DBPSK DQPSK OFDM QPSK	2.7 V	3.6 V	28-SMD Module	4 MB	128 kB	18.5 dBm	802.11b/g/n	I2C SPI UART

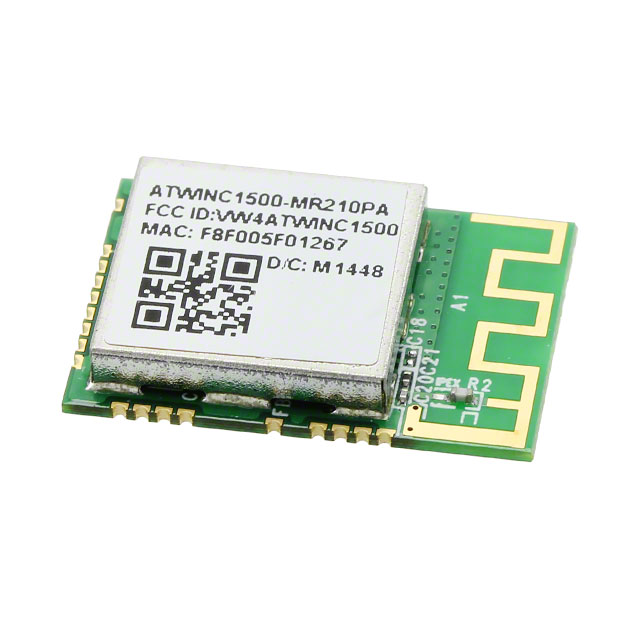

Microchip Technology ATWINC1500-MR210PA	2.4 GHz		-98 dBm	WiFi	Surface Mount	Integrated Trace		85 °C	-40 °C		19.4.4	72.2 Mbps	16-QAM 64-QAM BPSK CCK DBPSK DQPSK OFDM QPSK	2.7 V	3.6 V	28-SMD Module	4 MB	64 kB	19 dBm	802.11b/g/n	I2C SPI UART				29 mA	230 mA	29 mA	68 mA		128 kB

Key Features

• Product features:* Single-band 2.4GHz b/g/n

• * Extreme low-power

• * Compact footprint: 5 x 5 mm QFN

• * Operating voltage: 3.0 V to 4.2 V

• * Serial host interface: SPI

• * Security protocols supported: WPA/WPA2 Personal, TLS, SSL

• * Network services: DHCP, DNS, TCP/IP (IPv4), UDP, HTTP, HTTPS

• * Supported antenna options: PCB or uFL

•

• Available in a fully-certified module package:* [ATWINC15x0-MR210PB1961 (PCB antenna)](https://www.microchip.com/en-us/product/atwinc1500)

• * [ATWINC15x0-MR210UB1961 (u.FL antenna)](https://www.microchip.com/en-us/product/atwinc1500)

•

• Drivers and sample application softwares available in:* [Advanced Software Framework (ASF)](https://www.microchip.com/en-us/tools-resources/develop/libraries/advanced-software-framework)

• * [MPLAB Harmony](https://www.microchip.com/en-us/tools-resources/configure/mplab-harmony)

• * [MPLAB MLA](https://www.microchip.com/en-us/tools-resources/develop/libraries/microchip-libraries-for-applications)

Description

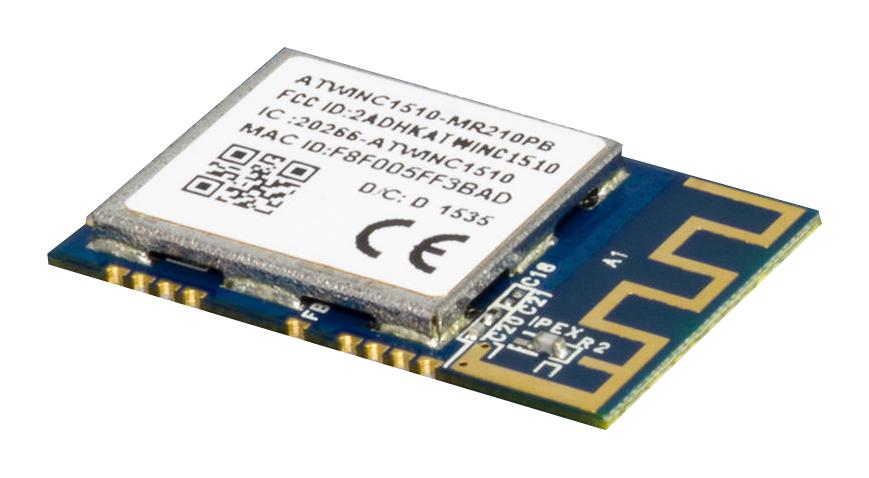

**Microchip's ATWINC1500 is an IEEE 802.11 b/g/n IoT network controller that has networking stack built on the chip**. It is the ideal add-on to existing MCU solutions bringing Wi-Fi and Network capabilities through SPI-to-Wi-Fi interface. It connects to any SAM or PIC MCU with minimal resource requirements. The ATWINC1500's most advanced mode is a single stream 1x1 802.11n mode. Its networking stack consists of HTTP, TCP, IP and Ethernet Protocols corresponding to Application, Transport, Internet and Data Link Layers. The **ATWINC1500** features: * A fully integrated power amplifier, LNA, switch and power management. * Internal Flash memory to store firmware * And only requires a high-speed crystal or oscillator (26 MHz) as a clock source The ATWINC1500 is available in a QFN package or as a certified module. Expanding on the **ATWINC1500 with 4 MB flash**, the **ATWINC1510 adds 8 MB** **flash** memory for even greater flexibility and the ability to store Host MCU files. A MCU host driver can be found in the [Advanced Software Framework](https://www.microchip.com/en-us/tools-resources/develop/libraries/advanced-software-framework) (ASF) and in MPLAB® [Harmony v3](https://www.microchip.com/en-us/tools-resources/configure/mplab-harmony). Get step-by-step instructions for [configuring the WINC1500](https://mu.microchip.com/how-to-wifi-configuring-the-winc1500-driver-with-the-harmony-3-configurator) using MPLAB Harmony 3. Microchip's complimentary and confidential [Wireless Check online design review service](https://www.microchip.com/en-us/support/design-help/design-check-services) is available for customers who have selected our products for their application design-in\*. \*The online design review service is subject to Microchip's [Program Terms and Conditions](https://www.microchip.com/en-us/support/design-help/design-check-services/design-check-services-program-terms-and-conditions) and requires a myMicrochip account. **Firmware** The latest major firmware release is: [v19.7.7](https://github.com/Microchip-MPLAB-Harmony/wireless_wifi/tree/master/utilities/wifi/winc/files/winc1500/19.7.7) and is available in GitHub. You will find the firmware package and release notes in the documents section of this page. Click here for the [Firmware Release Summary](https://ww1.microchip.com/downloads/aemDocuments/documents/WSG/ProductDocuments/ReleaseNotes/ATWINC15X0-Software-Release-Notes-v19.7.7.pdf). The latest module firmware available is v19.7.7: * ATWINC1500-MR210PBxxxx * ATWINC1500-MR210UBxxxx Looking for a chip level solution? Check out the IC solution here [ATWINC1500-IC](https://www.microchip.com/en-us/product/atwinc1500-ic)
