MLX91220 Series

Catalog

IC CURRENT SENSOR P&P 16SOIC

Part	Number of Channels [custom]	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply (Max) [Max]	Sensor Type	Current - Sensing	Sensitivity	Polarization	Mounting Type	Frequency [Min]	Frequency [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	For Measuring	Linearity	Package / Case	Package / Case	Package / Case	Output	Supplied Contents	Interface	Sensing Range	Utilized IC / Part	Contents
Melexis Technologies NV MLX91220KDF-ABF-050-SP	1	2 µs	5.5 V	4.5 V	21 mA	Hall Effect Open Loop	50 A	40 mV/g	Bidirectional	Surface Mount	DC	300 kHz	125 °C	-40 C	16-SOIC	AC DC	0.6 %	16-SOIC	7.5 mm	0.295 "	Fixed Voltage
Melexis Technologies NV MLX91220KDC-ABR-025-RE	1	2 µs	5.5 V	4.5 V	21 mA	Hall Effect Open Loop	25 A	80 LSB/°/s	Bidirectional	Surface Mount	DC	300 kHz	125 °C	-40 C	8-SOIC	AC DC	0.6 %	8-SOIC	3.9 mm	0.154 in	Ratiometric Voltage
Melexis Technologies NV MLX91220KDF-ABF-025-SP	1	2 µs	5.5 V	4.5 V	21 mA	Hall Effect Open Loop	25 A	80 LSB/°/s	Bidirectional	Surface Mount	DC	300 kHz	125 °C	-40 C	16-SOIC	AC DC	0.6 %	16-SOIC	7.5 mm	0.295 "	Fixed Voltage
Melexis Technologies NV MLX91220KDC-ABR-030-SP	1	2 µs	5.5 V	4.5 V	21 mA	Hall Effect Open Loop	30 A	66.7 mV/A	Bidirectional	Surface Mount	DC	300 kHz	125 °C	-40 C	8-SOIC	AC DC	0.6 %	8-SOIC	3.9 mm	0.154 in	Ratiometric Voltage

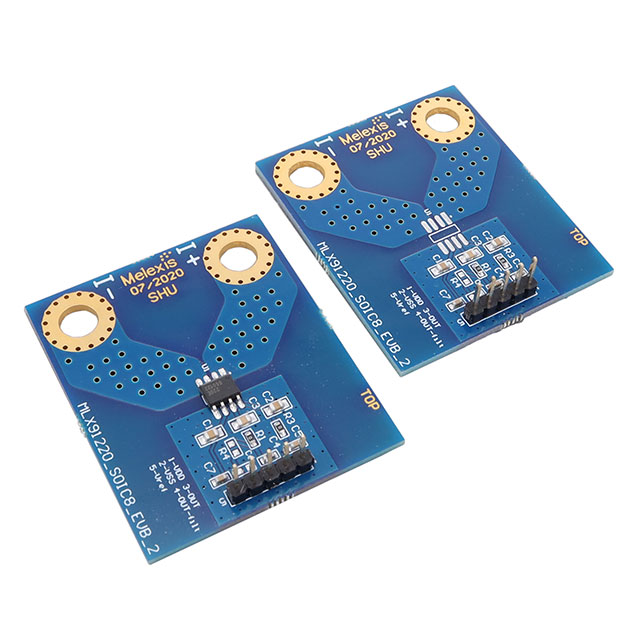

Melexis Technologies NV DVK91220 - SOIC8						Current Sensor		40 mV/g														Board(s)	Analog	50 A	MLX91220	Board(s)
Melexis Technologies NV MLX91220KDC-ABF-050-SP	1	2 µs	5.5 V	4.5 V	21 mA	Hall Effect Open Loop	50 A	40 mV/g	Bidirectional	Surface Mount	DC	300 kHz	125 °C	-40 C	8-SOIC	AC DC	0.6 %	8-SOIC	3.9 mm	0.154 in	Fixed Voltage
Melexis Technologies NV MLX91220KDC-ABR-025-SP	1	2 µs	5.5 V	4.5 V	21 mA	Hall Effect Open Loop	25 A	80 LSB/°/s	Bidirectional	Surface Mount	DC	300 kHz	125 °C	-40 C	8-SOIC	AC DC	0.6 %	8-SOIC	3.9 mm	0.154 in	Ratiometric Voltage
Melexis Technologies NV MLX91220KDF-ABR-025-SP	1	2 µs	5.5 V	4.5 V	21 mA	Hall Effect Open Loop	25 A	80 LSB/°/s	Bidirectional	Surface Mount	DC	300 kHz	125 °C	-40 C	16-SOIC	AC DC	0.6 %	16-SOIC	7.5 mm	0.295 "	Ratiometric Voltage
Melexis Technologies NV MLX91220KDF-ABR-025-RE	1	2 µs	5.5 V	4.5 V	21 mA	Hall Effect Open Loop	25 A	80 LSB/°/s	Bidirectional	Surface Mount	DC	300 kHz	125 °C	-40 C	16-SOIC	AC DC	0.6 %	16-SOIC	7.5 mm	0.295 "	Ratiometric Voltage
Melexis Technologies NV MLX91220KDF-ABF-025-RE	1	2 µs	5.5 V	4.5 V	21 mA	Hall Effect Open Loop	25 A	80 LSB/°/s	Bidirectional	Surface Mount	DC	300 kHz	125 °C	-40 C	16-SOIC	AC DC	0.6 %	16-SOIC	7.5 mm	0.295 "	Fixed Voltage
