UVG20 Series

Catalog

SENSOR PHOTODIODE 19MM2

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Response Time	Responsivity @ nm	Spectral Range [Min]	Spectral Range [Max]	Mounting Type	Active Area

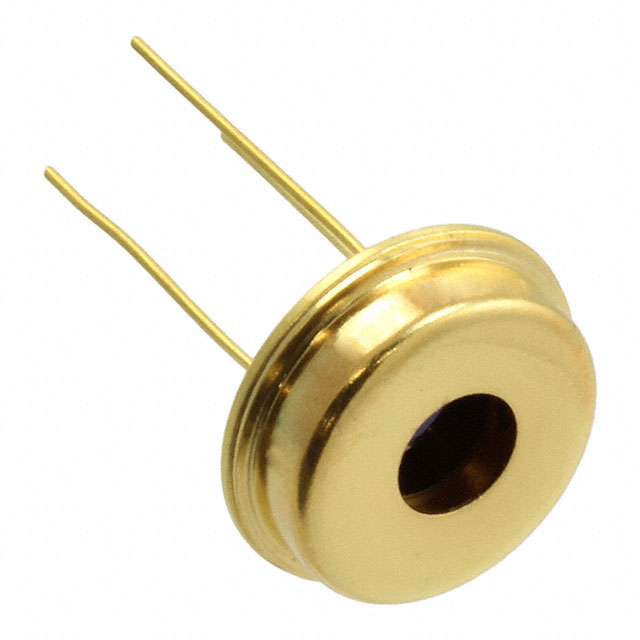

Opto Diode Corp UVG20C	80 °C	-20 ░C	50 V	1.7 µs	0.115 A/W	250 nm	1100 nm	Through Hole

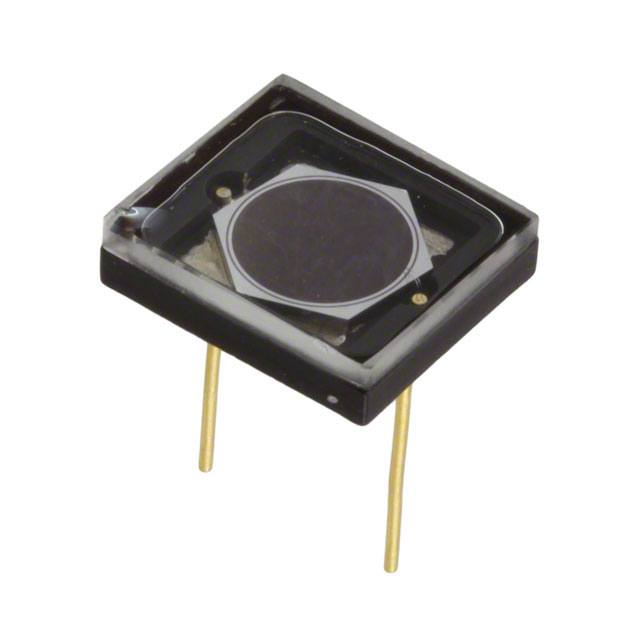

Opto Diode Corp UVG20S	80 °C	-20 ░C	50 V	4 µs	0.115 A/W	250 nm	1100 nm	Through Hole	24 mm²
