34KM Series

Catalog

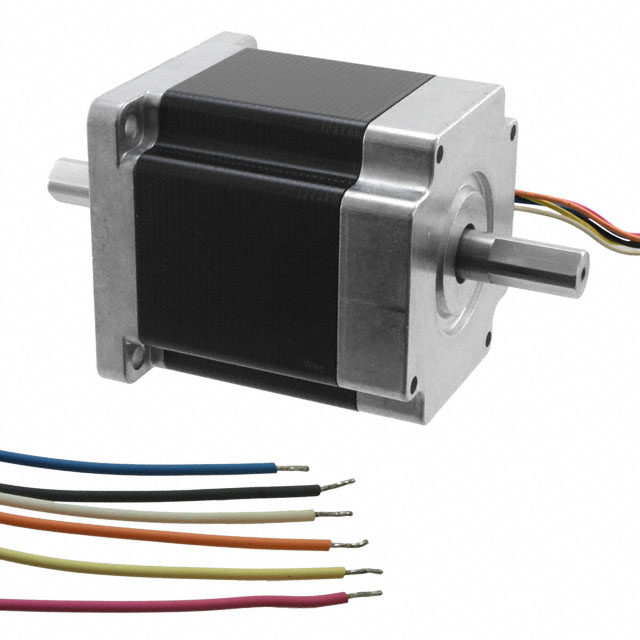

STEPPER MOTORS HYBRID STEPPER MOTOR, DUAL SHAFT, 85X85X68MM, 1.8 DEGREE/STEP, 4.8A, 0.45OHM

Part	Step Angle	Rotor Inertia	Accuracy	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	NEMA Frame Size	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Current Rating (Amps)	Steps per Revolution	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Termination Style	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated	Features	Coil Resistance	Coil Type	Weight	Weight
NMB TECHNOLOGIES 34KM-K006-99W	1.8 1.8 °	1200 gcm˛	5 % 5 %	-10 °C	50 °C	85 mm	3.347 in	85 mm	3.347 in	34	1.457 "	37 mm	4.8 A	200	69.6 mm	2.74 in	Wire Leads	354.07 oz-in	2500 mNm	Hybrid Dual Shaft	14 mm	0.551 in	24 VDC	Double Flatted Shaft	0.45 Ohms	Unipolar
NMB TECHNOLOGIES 34KM-K006-00W	1.8 °		5 %	-10 °C	50 °C	85 mm	3.347 in	85 mm	3.347 in	34	1.457 "	37 mm	4.8 A	200	69.6 mm	2.74 in	Wire Leads	354.07 oz-in	2500 mNm	Hybrid	14 mm	0.551 in	24 VDC	Double Flatted Shaft	0.45 Ohms	Unipolar
NMB TECHNOLOGIES 34KM-K106-99W	1.8 °	2400 gcm˛	5 %	-10 °C	50 °C	85 mm	3.347 in	85 mm	3.347 in	34	1.457 "	37 mm	4.8 A	200	69.6 mm	2.74 in	Wire Leads	679.82 oz-in	4800 mNm	Hybrid Dual Shaft	14 mm	0.551 in	24 VDC	Double Flatted Shaft	0.65 Ohms	Unipolar	6.4 lbs	2.9 kg
NMB TECHNOLOGIES 34KM-K012-00W	1.8 °	1200 gcm˛	5 %	-10 °C	50 °C	85 mm	3.347 in	85 mm	3.347 in	34	1.457 "	37 mm	3 A	200	69.6 mm	2.74 in	Wire Leads	354.07 oz-in	2500 mNm	Hybrid	14 mm	0.551 in	24 VDC	Double Flatted Shaft	1.1 Ohms	Unipolar
NMB TECHNOLOGIES 34KM-K023-99W	1.8 °	1200 gcm˛	5 %	-10 °C	50 °C	85 mm	3.347 in	85 mm	3.347 in	34	1.457 "	37 mm	1.9 A	200	69.6 mm	2.74 in	Wire Leads	354.07 oz-in	2500 mNm	Hybrid Dual Shaft	14 mm	0.551 in	24 VDC	Double Flatted Shaft	2.8 Ohms	Unipolar
NMB TECHNOLOGIES 34KM-K206-99W	1.8 °	3700 gcm˛	5 %	-10 °C	50 °C	85 mm	3.347 in	85 mm	3.347 in	34	1.457 "	37 mm	4.7 A	200	69.6 mm	2.74 in	Wire Leads	948.92 oz-in	6700 mNm	Hybrid Dual Shaft	14 mm	0.551 in	24 VDC	Double Flatted Shaft	0.85 Ohms	Unipolar	8.8 lbs	4 kg
NMB TECHNOLOGIES 34KM-K112-00W	1.8 °	2400 gcm˛	5 %	-10 °C	50 °C	85 mm	3.347 in	85 mm	3.347 in	34	1.457 "	37 mm	3 A	200	69.6 mm	2.74 in	Wire Leads	679.82 oz-in	4800 mNm	Hybrid	14 mm	0.551 in	24 VDC	Double Flatted Shaft	1.5 Ohms	Unipolar	6.4 lbs	2.9 kg
NMB TECHNOLOGIES 34KM-K106-00W	1.8 °	2400 gcm˛	5 %	-10 °C	50 °C	85 mm	3.347 in	85 mm	3.347 in	34	1.457 "	37 mm	4.8 A	200	69.6 mm	2.74 in	Wire Leads	679.82 oz-in	4800 mNm	Hybrid	14 mm	0.551 in	24 VDC	Double Flatted Shaft	0.65 Ohms	Unipolar	6.4 lbs	2.9 kg
NMB TECHNOLOGIES 34KM-K122-00W	1.8 °	2400 gcm˛	5 %	-10 °C	50 °C	85 mm	3.347 in	85 mm	3.347 in	34	1.457 "	37 mm	1.9 A	200	69.6 mm	2.74 in	Wire Leads	679.82 oz-in	4800 mNm	Hybrid	14 mm	0.551 in	24 VDC	Double Flatted Shaft	3.9 Ohms	Unipolar	6.4 lbs	2.9 kg
NMB TECHNOLOGIES 34KM-K112-99W	1.8 °	2400 gcm˛	5 %	-10 °C	50 °C	85 mm	3.347 in	85 mm	3.347 in	34	1.457 "	37 mm	3 A	200	69.6 mm	2.74 in	Wire Leads	679.82 oz-in	4800 mNm	Hybrid Dual Shaft	14 mm	0.551 in	24 VDC	Double Flatted Shaft	1.5 Ohms	Unipolar	6.4 lbs	2.9 kg
