TM5R Series
Modular Connectors / Ethernet Connectors 4P F MODULAR JACK SPACER PBT BLACK GRY
Manufacturer: Hirose Electric Co Ltd
Catalog
Modular Connectors / Ethernet Connectors 4P F MODULAR JACK SPACER PBT BLACK GRY
Beta
⌘K
Modular Connectors / Ethernet Connectors 4P F MODULAR JACK SPACER PBT BLACK GRY
Modular Connectors / Ethernet Connectors 4P F MODULAR JACK SPACER PBT BLACK GRY
Modular Connectors / Ethernet Connectors 4P F MODULAR JACK SPACER PBT BLACK GRY
| Part | Connector Type | Termination | Orientation | Number of Ports | Features | Tab Direction | Mounting Type | Number of Rows | Number of Positions/Contacts | LED Color | Shielding | Housing Material | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [y] | Number of Positions/Contacts [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish | Type | Convert From (Adapter End) | Shell Material, Finish | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Jack | Solder | 90 ° | 1 | Board Lock Panel Stops | Down | Through Hole | 1 | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Shielded | |||||||||||||

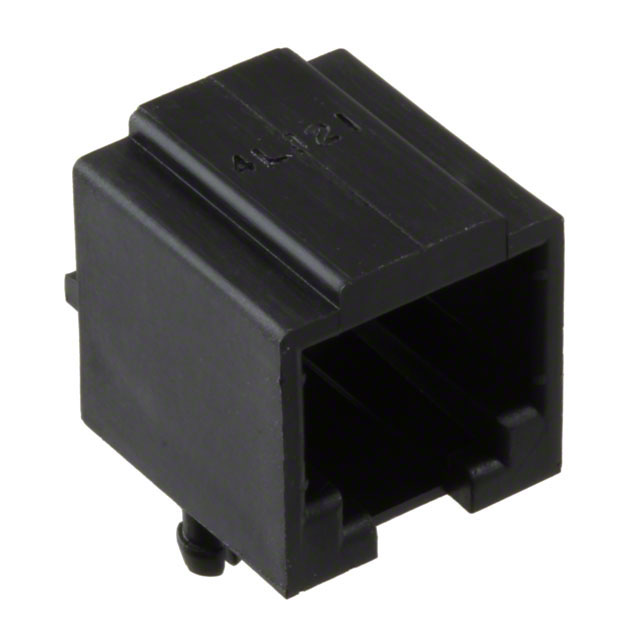

 Hirose Electric Co Ltd | Jack | Solder | 90 ° | 1 | Board Lock | Down | Through Hole | 1 | Does Not Contain LED | Unshielded | Polybutylene Terephthalate (PBT) | 6 | 2 | |||||||||||

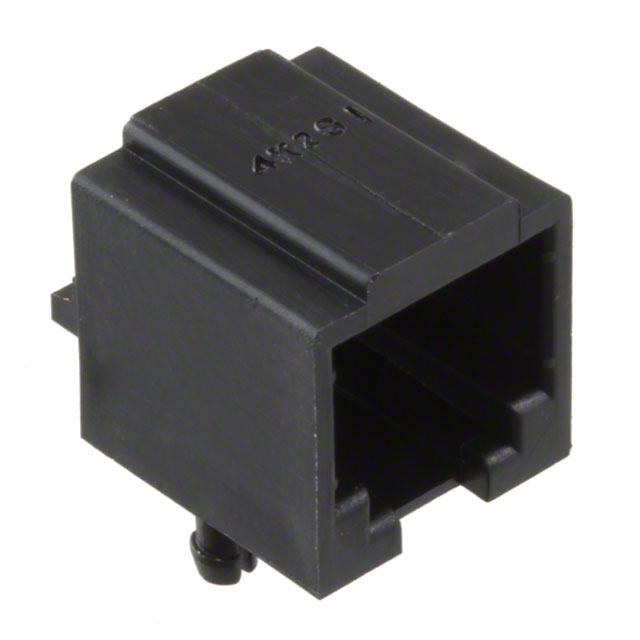

 Hirose Electric Co Ltd | Jack | Solder | 90 ° | 1 | Board Lock | Down | Through Hole | 1 | Does Not Contain LED | Unshielded | Polybutylene Terephthalate (PBT) | 6 | 6 | |||||||||||

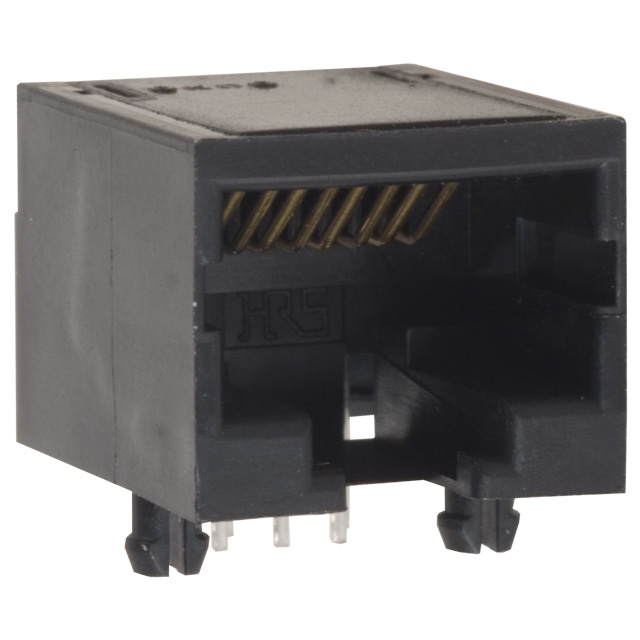

 Hirose Electric Co Ltd | Jack | Solder | 90 ° | 4 | Board Lock | Down | Through Hole | 1 | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Unshielded | Polybutylene Terephthalate (PBT) | -25 °C | 60 °C | Phosphor Bronze | Gold | ||||||||
 Hirose Electric Co Ltd | Jack | Solder | 90 ° | 1 | Board Lock | Down | Through Hole | 1 | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Unshielded | Polybutylene Terephthalate (PBT) | -25 °C | 60 °C | Phosphor Bronze | Gold | ||||||||
 Hirose Electric Co Ltd | Jack | Solder | 90 ° | 1 | Board Lock | Down | Through Hole | 1 | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Unshielded | Polybutylene Terephthalate (PBT) | -25 °C | 60 °C | Phosphor Bronze | Gold | ||||||||
 Hirose Electric Co Ltd | Jack | Solder | 90 ° | 1 | Board Lock | Up | Through Hole | 1 | Does Not Contain LED | Unshielded | Polybutylene Terephthalate (PBT) | 6 | 6 | -25 °C | 60 °C | Phosphor Bronze | Gold | |||||||
 Hirose Electric Co Ltd | Jack | Solder | 90 ° | 1 | Board Lock Panel Stops | Side | Through Hole | 1 | Does Not Contain LED | Unshielded | Polybutylene Terephthalate (PBT) | 6 | 6 | -25 °C | 60 °C | Phosphor Bronze | Gold | |||||||

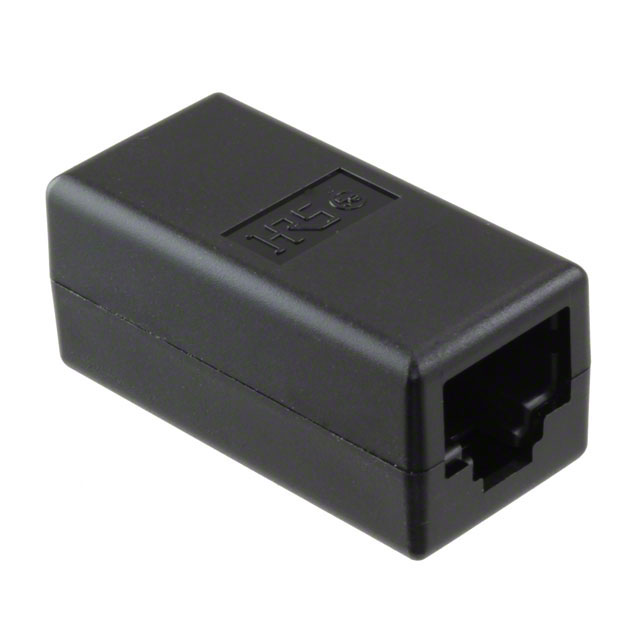

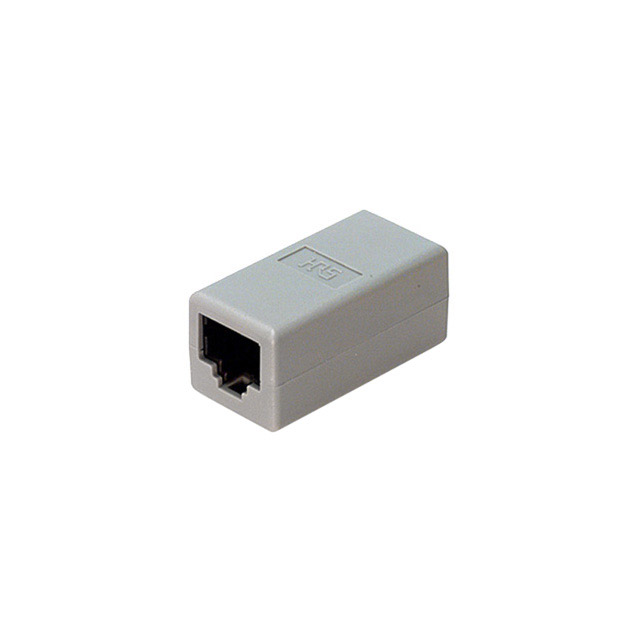

 Hirose Electric Co Ltd | Free Hanging (In-Line) | Unshielded | Coupler | Jack 8p8c (RJ45) | Thermoplastic | Jack 8p8c (RJ45) | ||||||||||||||||||
 Hirose Electric Co Ltd | Jack | Solder | 90 ° | 2 | Board Lock | Down | Through Hole | 1 | 8p8c (RJ45 Ethernet) | Does Not Contain LED | Unshielded |
