STTH4 Series

600 V, 4 A Low Drop Ultrafast Diode

Catalog

600 V, 4 A Low Drop Ultrafast Diode

Part	Voltage - Forward (Vf) (Max) @ If	Package / Case	Supplier Device Package	Qualification	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io)	Grade	Speed	Voltage - Forward (Vf) (Max) @ If [Max]
STMicroelectronics STTH4R02BY-TR	1.05 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	DPAK	AEC-Q101	-40 °C	175 ░C	3 µA	30 ns	Surface Mount	200 V	Standard	4 A	Automotive	200 mA 500 ns
STMicroelectronics STTH4R02SY	1.05 V	DO-214AB SMC	SMC		-40 °C	175 ░C	3 µA	30 ns	Surface Mount	200 V	Standard	4 A	Automotive	200 mA 500 ns

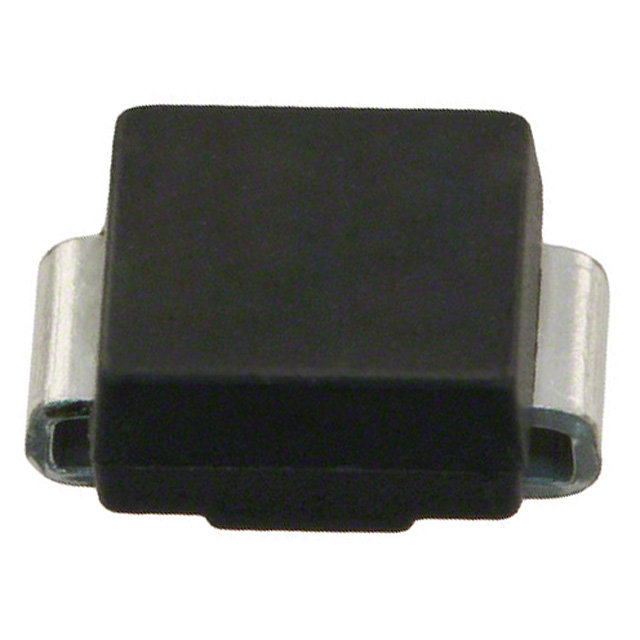

STMicroelectronics STTH4R02UY	1.05 V	DO-214AA SMB	SMB		-40 °C	175 ░C	3 µA	30 ns	Surface Mount	200 V	Standard	4 A	Automotive	200 mA 500 ns
STMicroelectronics STTH4R02B-TR	1.05 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	DPAK			175 ░C	3 µA	30 ns	Surface Mount	200 V	Standard	4 A		200 mA 500 ns

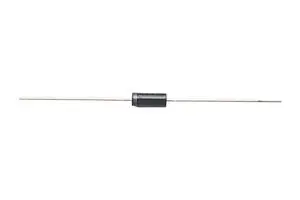

STMicroelectronics STTH4L06		DO-201AD Axial	DO-201AD			175 ░C	3 µA	75 ns	Through Hole	600 V	Standard	4 A		200 mA 500 ns	1.3 V

Catalog

600 V, 4 A Low Drop Ultrafast Diode

Description

The STTH4R02 uses ST's new 200 V planar Pt doping technology, and it is specially suited for switching mode base drive and transistor circuits. Packaged in DPAK, SMB and SMC, this device is intended for use in low voltage, high frequency inverters, freewheeling and polarity protection.
