895-010 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 10POS 0.100

...

Part	Termination Rows	Flange Feature	Gender	Termination	Contact Type	Color	Mounting Type	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Contact Material	Pitch [x]	Pitch [x]	Number of Positions	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Flange Feature	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]

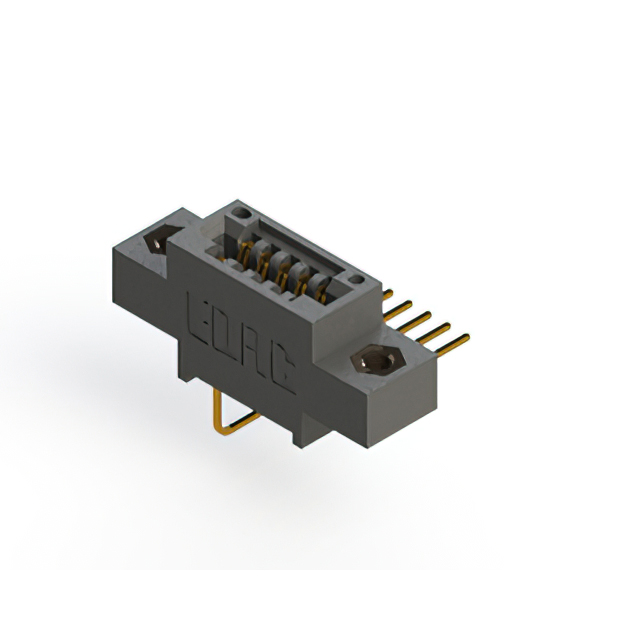

EDAC Inc. 895-010-558-807	2	M3 Threaded Insert Top Mount Opening	Female	Solder	Cantilever	Black	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2

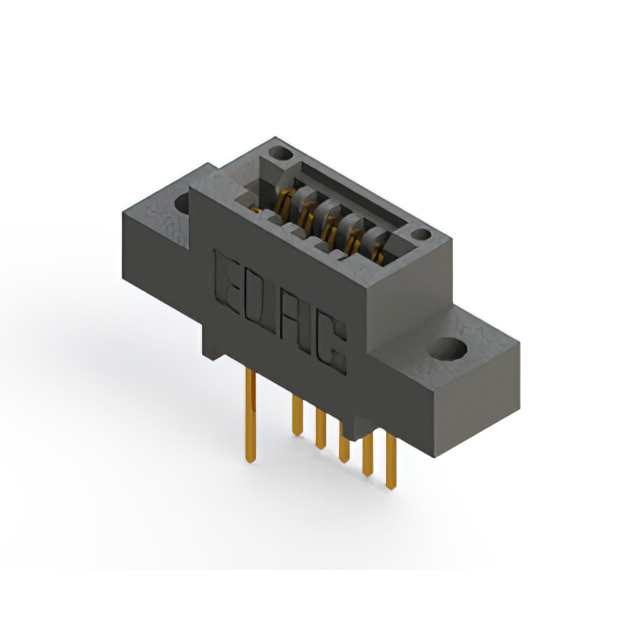

EDAC Inc. 895-010-523-502	2		Female	Solder	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2	3.25 mm	0.128 in

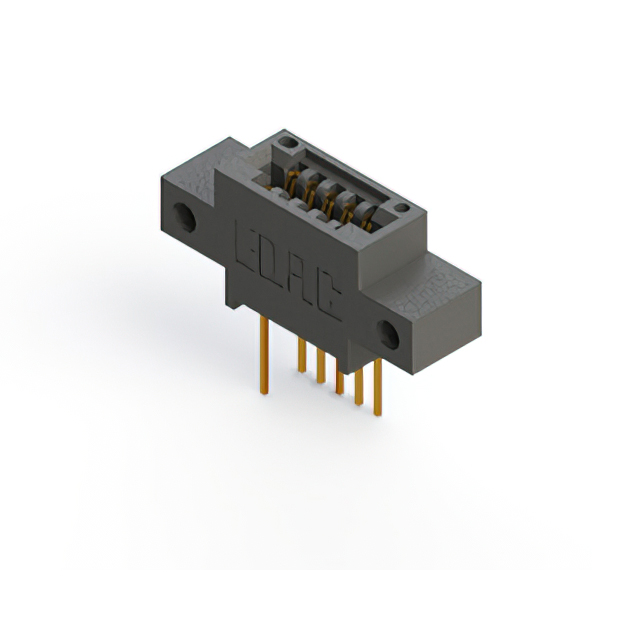

EDAC Inc. 895-010-541-812	2	Side Mount Opening Unthreaded	Female	Wire Wrap	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2	3.25 mm	0.128 in

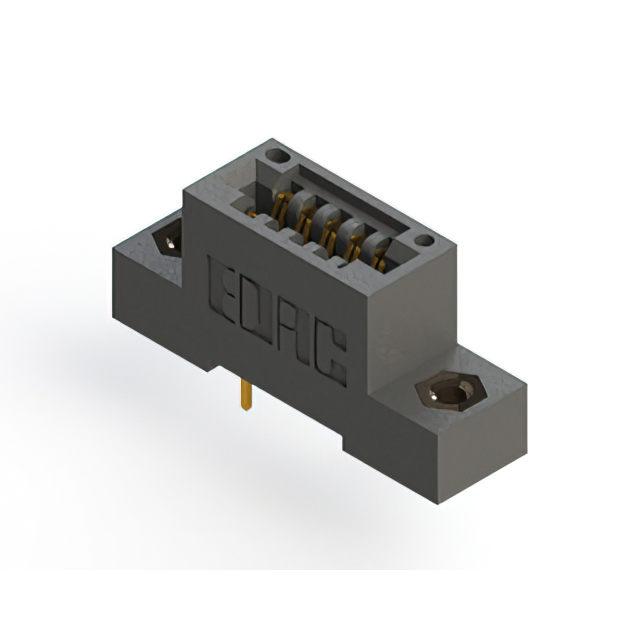

EDAC Inc. 895-010-521-208	2	4-40 Flush Mount Threaded Insert Top Opening	Female	Solder	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2

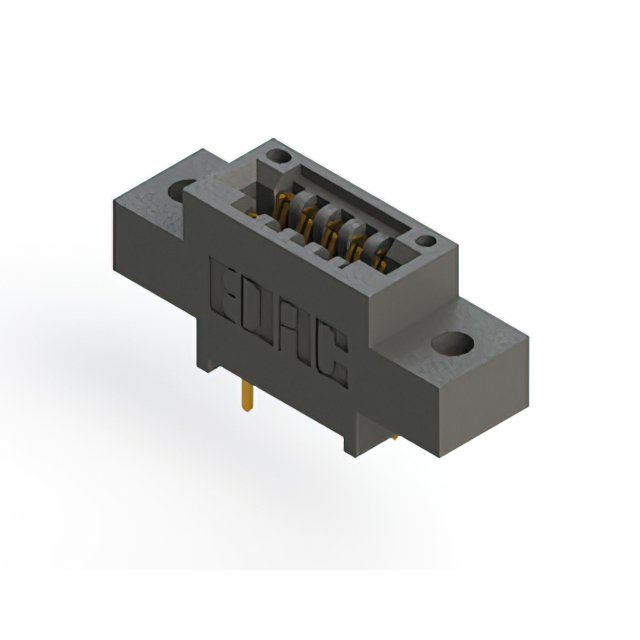

EDAC Inc. 895-010-521-802	2		Female	Solder	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2	3.25 mm	0.128 in

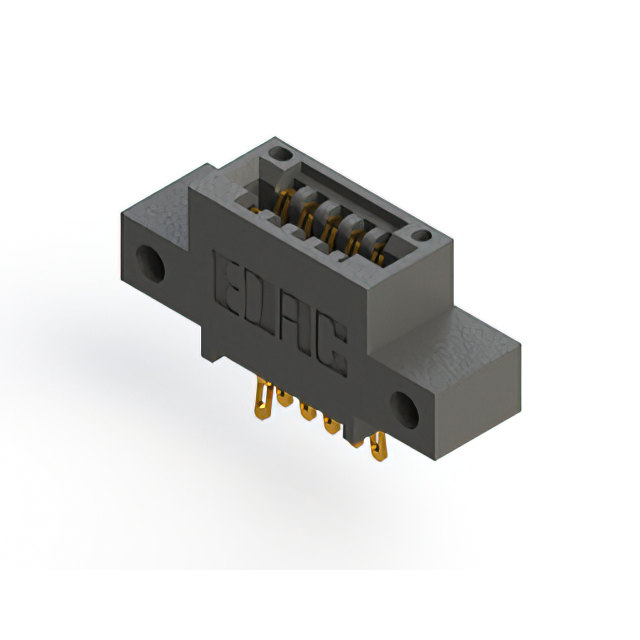

EDAC Inc. 895-010-555-512	2	Side Mount Opening Unthreaded	Female	Solder	Cantilever	Black	Board Edge Straddle Mount	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2	3.25 mm	0.128 in	Card Extender

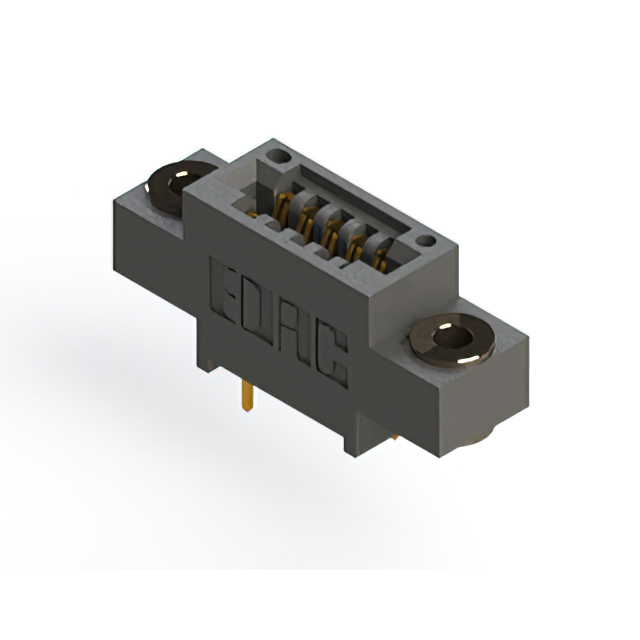

EDAC Inc. 895-010-521-803	2	Floating Bobbin Top Mount Opening	Female	Solder	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2				2.95 mm	0.116 in

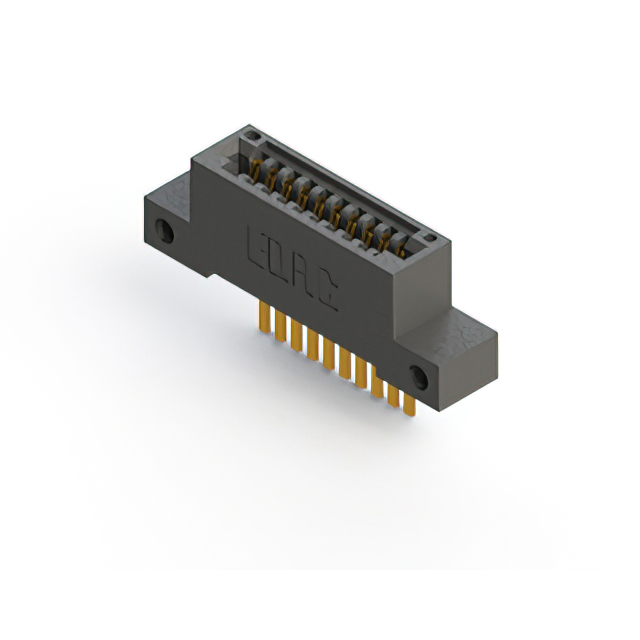

EDAC Inc. 895-010-544-112	1	Flush Mount Side Opening Unthreaded	Female	Wire Wrap	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Copper Alloy	2.54 mm	0.1 in	10	10	10 Áin	0.25 Ám	Non Specified - Single Edge	Gold	125 °C	-40 °C	1				3.25 mm	0.128 "

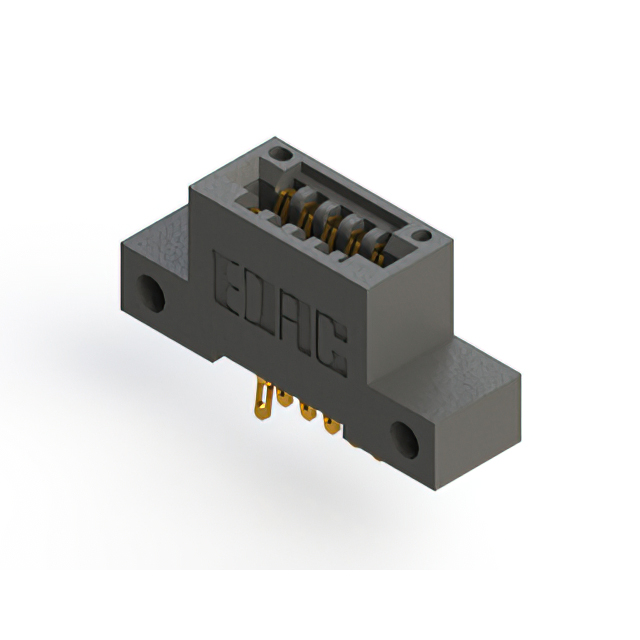

EDAC Inc. 895-010-555-212	2	Flush Mount Side Opening Unthreaded	Female	Solder	Cantilever	Black	Board Edge Straddle Mount	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Copper Alloy	2.54 mm	0.1 in	10	5	10 Áin	0.25 Ám	Non Specified - Dual Edge	Gold	125 °C	-40 °C	2			Card Extender	3.25 mm	0.128 "

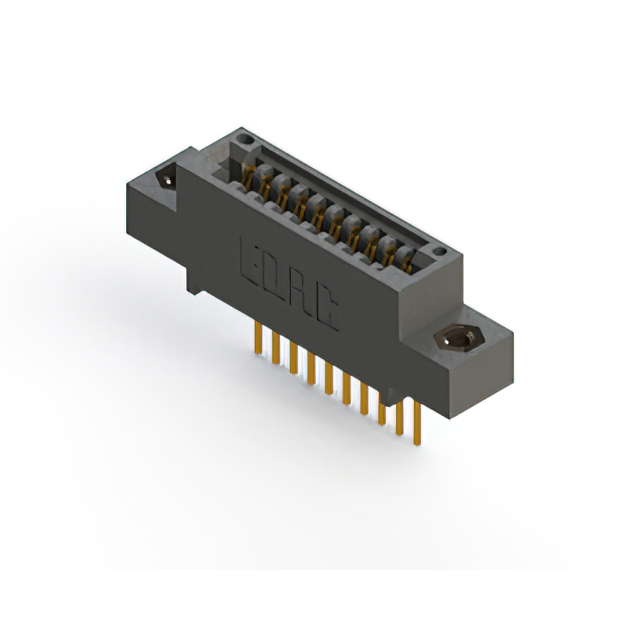

EDAC Inc. 895-010-540-408	1	4-40 Threaded Insert Top Mount Opening	Female	Wire Wrap	Cantilever	Black	Through Hole	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Copper Alloy	2.54 mm	0.1 in	10	10	10 Áin	0.25 Ám	Non Specified - Single Edge	Gold	125 °C	-40 °C	1
