C2524 Series

Catalog

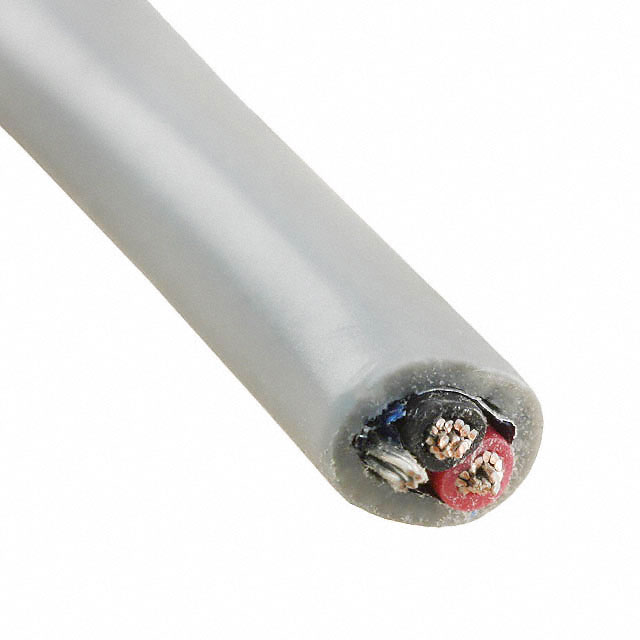

CABLE 2CON 20AWG GRAY SHLD 1000'

Part	Shield Material	Shield Coverage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Conductor Insulation	Usage	Jacket Color	Conductor Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Features	Cable Type	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Length	Length	Length [x]	Length [x]
Prysmian Group C2524A.30.10	Flexfoil®	100 %	Poly-Vinyl Chloride (PVC)	0.183 in	4.65 mm	ASTM B-33	Polyethylene (PE)	Communication Control	Gray	Copper Annealed Tinned	Foil	28 AWG	7	2	Drain Wire	Multi-Conductor	300 VDC	0.02 "	0.508 mm	20 AWG	304.8 m	1000 ft
Prysmian Group C2524A.41.10	Flexfoil®	100 %	Poly-Vinyl Chloride (PVC)	0.183 in	4.65 mm	ASTM B-33	Polyethylene (PE)	Communication Control	Gray	Copper Annealed Tinned	Foil	28 AWG	7	2	Drain Wire	Multi-Conductor	300 VDC	0.02 "	0.508 mm	20 AWG	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	100 ft	30.5 m
Prysmian Group C2524A.41.10			Poly-Vinyl Chloride (PVC)	0.183 in	4.65 mm	ASTM B-33	Polyethylene (PE)	Communication Control	Gray	Copper Annealed Tinned	Foil	28 AWG	7	2	Drain Wire	Multi-Conductor	300 VDC	0.02 "	0.508 mm	20 AWG	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	100 ft	30.5 m
Prysmian Group C2524A.18.10			Poly-Vinyl Chloride (PVC)	0.183 in	4.65 mm	ASTM B-33	Polyethylene (PE)	Communication Control	Gray	Copper Annealed Tinned	Foil	28 AWG	7	2	Drain Wire	Multi-Conductor	300 VDC	0.02 "	0.508 mm	20 AWG	152.4 m	500 ft
Prysmian Group C2524A.18.10	Flexfoil®	100 %	Poly-Vinyl Chloride (PVC)	0.183 in	4.65 mm	ASTM B-33	Polyethylene (PE)	Communication Control	Gray	Copper Annealed Tinned	Foil	28 AWG	7	2	Drain Wire	Multi-Conductor	300 VDC	0.02 "	0.508 mm	20 AWG	152.4 m	500 ft
